KEY FEATURES

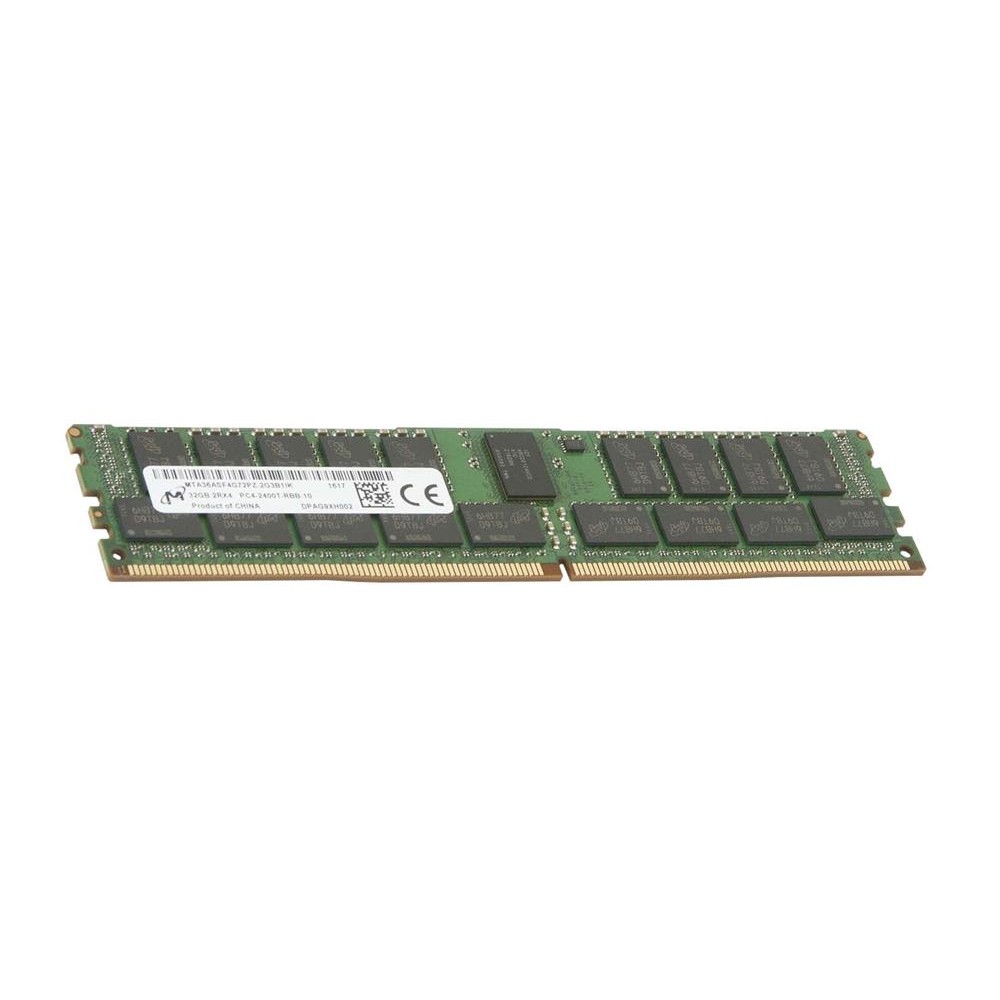

• 288-pin, registered dual in-line memory module (RDIMM).
• 32GB (4 Gig x 72).
• Supports ECC error detection and correction.
• Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals.
• Low-power auto self-refresh (LPASR).
• On-die VREFDQ generation and calibration.
• Dual-rank.
• On-board I2C temperature sensor with integrated serial presence-detect (SPD) EEPROM.
• 16 internal banks; 4 groups of 4 banks each.
• Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS).
• Selectable BC4 or BL8 on-the-fly (OTF).
• Gold edge contacts.
• Halogen-free.
• Fly-by topology.
• Terminated control, command, and address bus.
