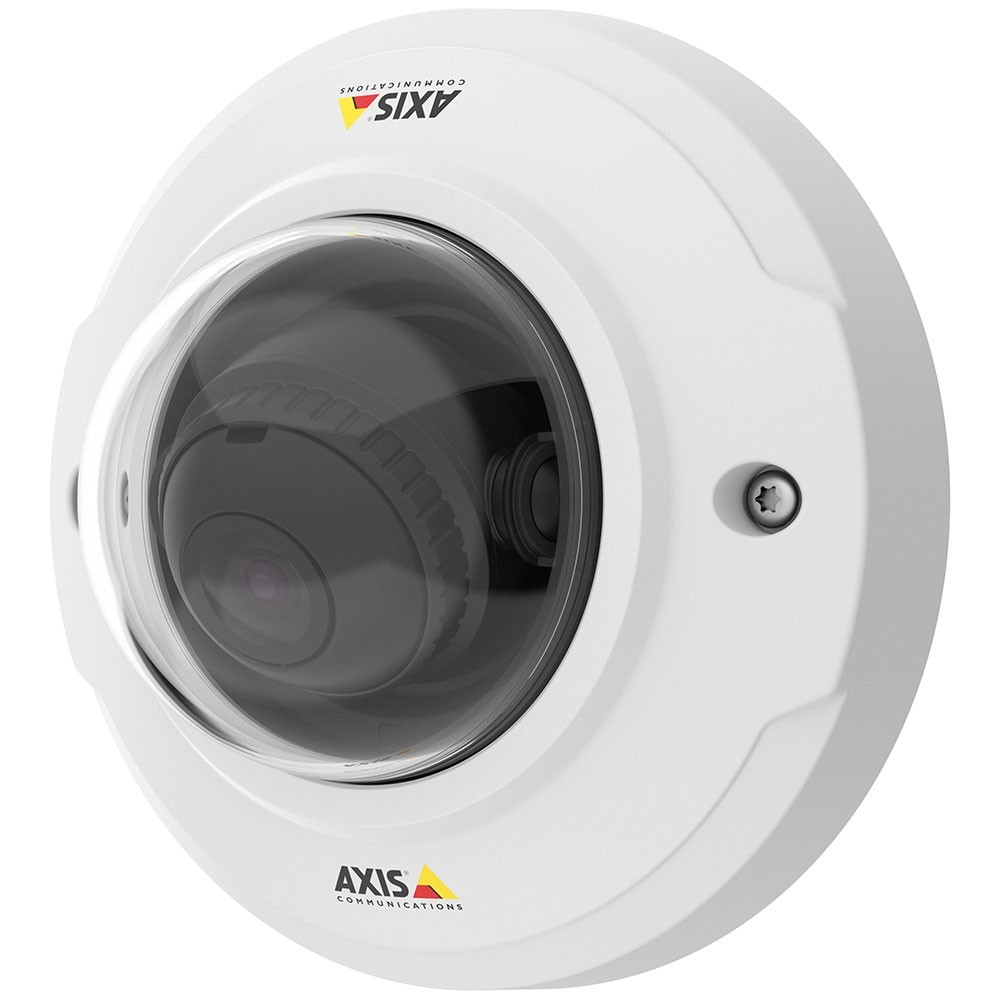

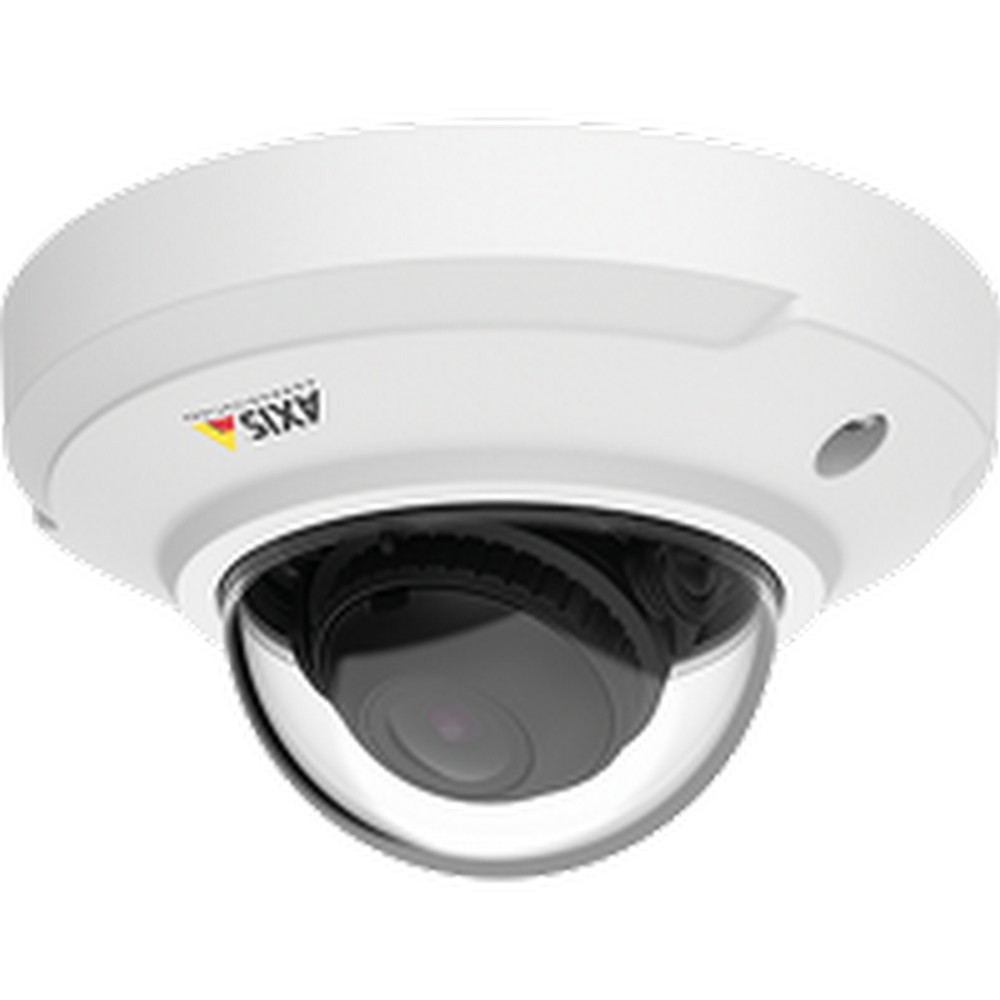

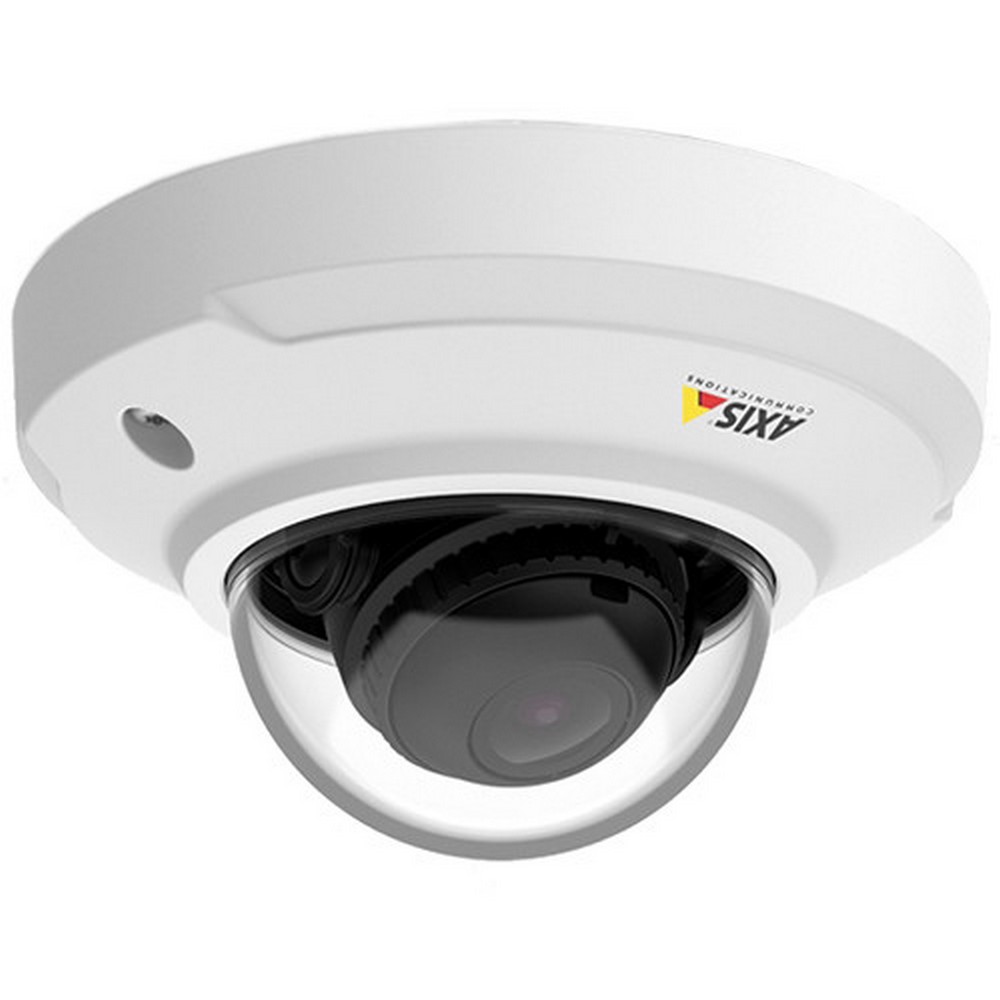

Name: AXIS Companion Dome V
Availability: OutOfStock

SKU: CP0000004511 SKU e prodhuesit: 0894-001 Kategori: Audio / Video, Cameras, Video Surveillance, Environment Monitoring Brand: Axis Communication

AXIS COMPANION LINE

The palm-sized AXIS Companion Dome V is an indoor fixed dome that features high quality video in HDTV 1080p / 2 MP resolution and WDR. The camera features PoE and a built-in microSD card slot for edge storage. The support for Axis’ Zipstream technology ensures maximized recording time. The HDMI output can be used for direct connection to public view monitors. The vandal and dust-resistant camera can be mounted on walls or ceilings. AXIS Companion Dome V is supported only by AXIS Companion video management software and mobile app.

KEY FEATURES

HDTV 1080p video quality and 2 MP resolution.
WDR to handle scenes with complex light conditions.
PoE for network connectivity and electrical power.
Supports microSD card and Axis’ Zipstream technology.
HDMI output for connection to monitors.

Datasheet

Përshkrimi

CAMERA

Image sensor: 1/3” progressive scan RGB CMOS.
Lens:
M12 mount, fixed iris, fixed focus 2.8 mm, F2.0.
Horizontal field of view: 106°.
Vertical field of view: 59.
Light sensitivity: 0.25 lux at 50 IRE F2.0.
Shutter time: 1/32500 s to 1/5 s.

VIDEO

Video compression: H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles Motion JPEG.
Resolution: 1920×1080 (1080p) to 320×240.
Frame rate: 25/30 fps with power line frequency 50/60 Hz.
Video streaming:
Multiple, individually configurable streams in H.264 and Motion JPEG.
Axis Zipstream technology in H.264.
Controllable frame rate and bandwidth VBR/MBR H.264 HDMI.

NETWORK

Security: Password protection, network access control, digest authentication, Axis Secure Remote Access, SD card encryption WEP 64/128 bit, WPA/WPA2-PSK, WPA, WPA2 Enterprise WLAN pairing button (Wi-Fi Protected SetupTM PBC compatible).
Supported protocols: IPv4/v6, HTTP, HTTPSa , SSL/TLS, CIFS/SMB, Bonjour, UPnPTM, DNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, HDMI 1.4b.

GENERAL

Casing: IP42 water- and dust-resistant (to comply with IP42, follow Installation Guide), IK08 impact-resistant, polycarbonate/ABS casing Encapsulated electronics, captive screws (Torx® 10) Color: white NCS S 1002-B For repainting instructions of skin cover or casing and impact on warranty, contact your Axis partner.
Sustainability: PVC free.
Memory: 512 MB RAM, 256 MB Flash.
Power: Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 1 Typical 2.6 W, max 3.0 W.
Connectors:
RJ45 10BASE-T/100BASE-TX PoEb.

Më shumë informacion

Max. video resolution	1920x1080
Power	PoE
Horizontal field of view	106deg
Min. illumination Color	0.25
WDR	Yes
Special features	HDMITM , IK08/IP42
Zipstream	Yes
