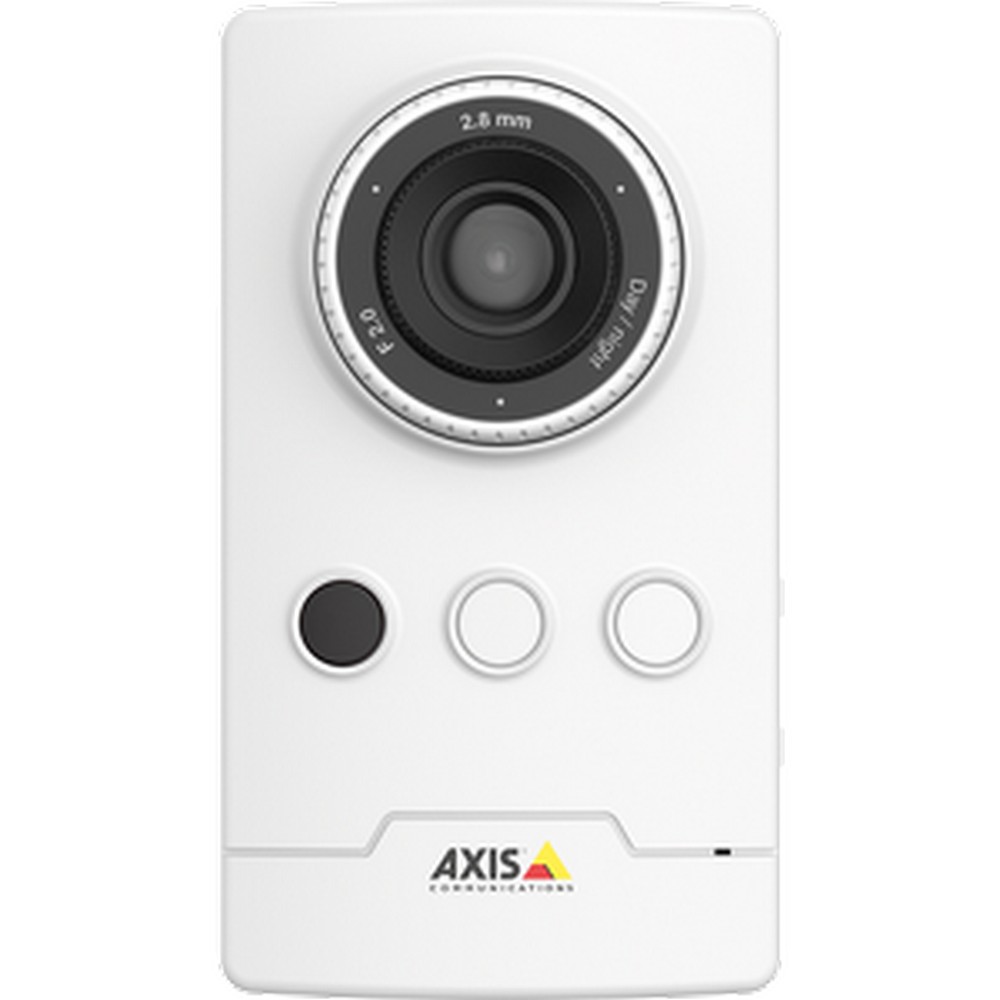

AXIS M1045-LW

Përshkrimi

• Just plug it in and press record

AXIS M1045-LW is made for easy, foolproof installation. It comes with a combined corner and wall bracket that lets anyone install it perfectly: Drop the camera in the bracket and it’s perfectly positioned to provide 110° coverage of the room.

• A camera that sees in the dark

With AXIS M1045-LW, you’ll always be able to see exactly what’s going on at your premises – regardless of time of day or lighting. With HDTV 1080p, it delivers excellent Axis image quality.

• A camera that saves you money

In addition to an attractive price and easy installation, our discreet little camera saves you money in other ways too. For example, you can store footage on the camera on a memory card, which saves bandwidth and eliminates the need for a server. And a motion sensor means that AXIS M1045-LW only records when it detects movement.

Technical Specifications

Camera

• Image sensor: 1/3″ progressive scan RGB CMOS.
• Lens: Fixed focal length, 2.8 mm, F2.0 Horizontal field of view: 110° Vertical field of view: 61° M12 mount, fixed iris, IR corrected.
• Day and night: Automatically removable IR cut filter.
• Minimum illumination Color: 0.25 lux at 50 IRE F2.0 B/W: 0.05 lux at 50 IRE F2.0, 0 lux with IR illumination on.

Video

• Video compression: H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles, Motion JPEG.
• Resolution: 1920×1080 HDTV 1080p to 320×240.
• Frame rate: Up to 25/30 fps (50/60 Hz) in all resolutions.
• Video streaming: Multiple, individually configurable streams in H.264 and Motion JPEG Axis Zipstream technology in H.264 Controllable frame rate and bandwidth VBR/MBR H.264.

Network

• Wireless interface: Internal antenna IEEE 802.11a/b/g/n @ 2.4 GHz, @ 5 GHz (channels 36, 40, 44, 48).
• Security: Password protection, IP address filtering, HTTPSa encryption, IEEE 802.1Xa network access control, Digest authentication, User access log WPA/WPA2-PSK, WPA, WPA2 Enterprise WLAN pairing button (Wi-Fi Protected SetupTM PBC compatible).
• Supported protocols: IPv4/v6, HTTP, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS.

General

• Casing: Polycarbonate, Aluminium, recycled plastic Color: White NCS S 1002-B For repainting instructions of skin cover or casing and impact on warranty, contact your Axis partner.
• Sustainability: PVC free, 64% recycled plastic.
• Memory: 512 MB RAM, 256 MB Flash.
• Power: 4.75–5.25 V DC, typical 2.7 W, max 4.4 W.
• IR illumination: IR illumination, LED with adjustable intensity. Range up to 10 m (32 ft).
• Connectors: Micro USB type B for power only RJ45 10BASE-T/100BASE-TX.
