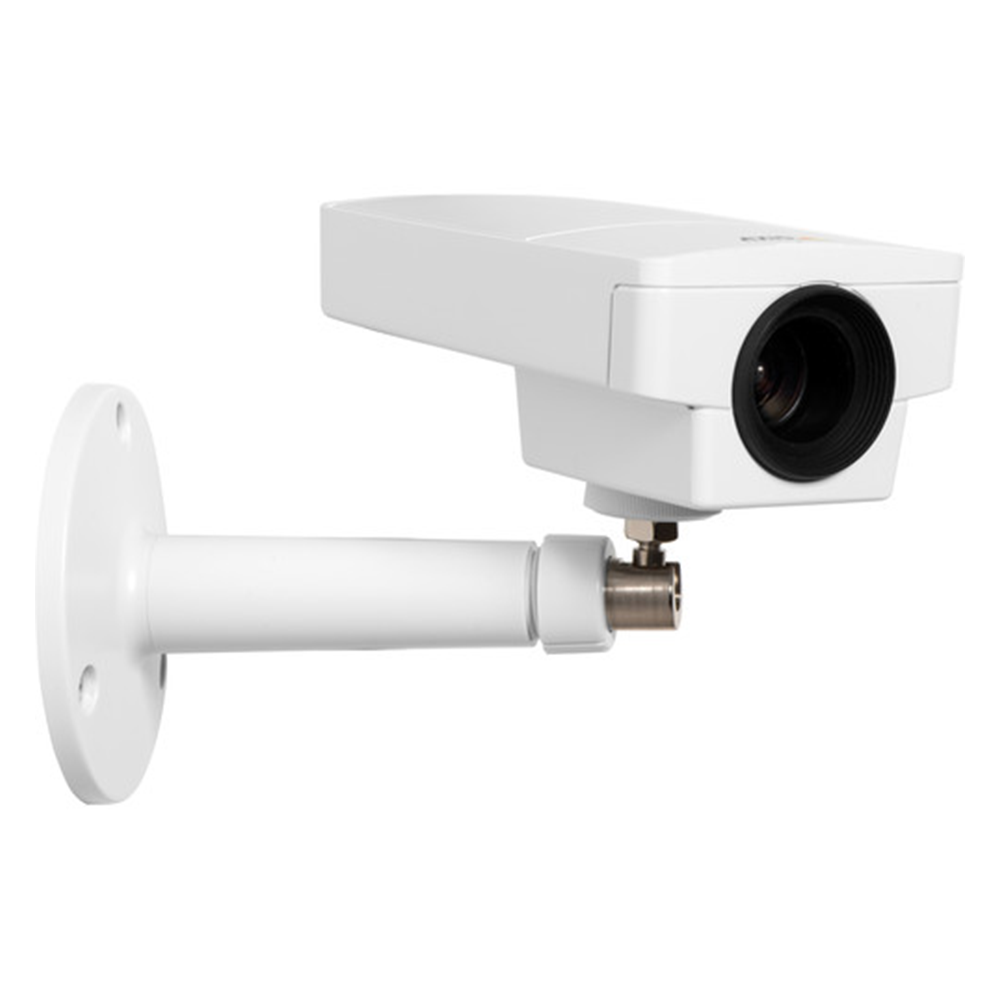

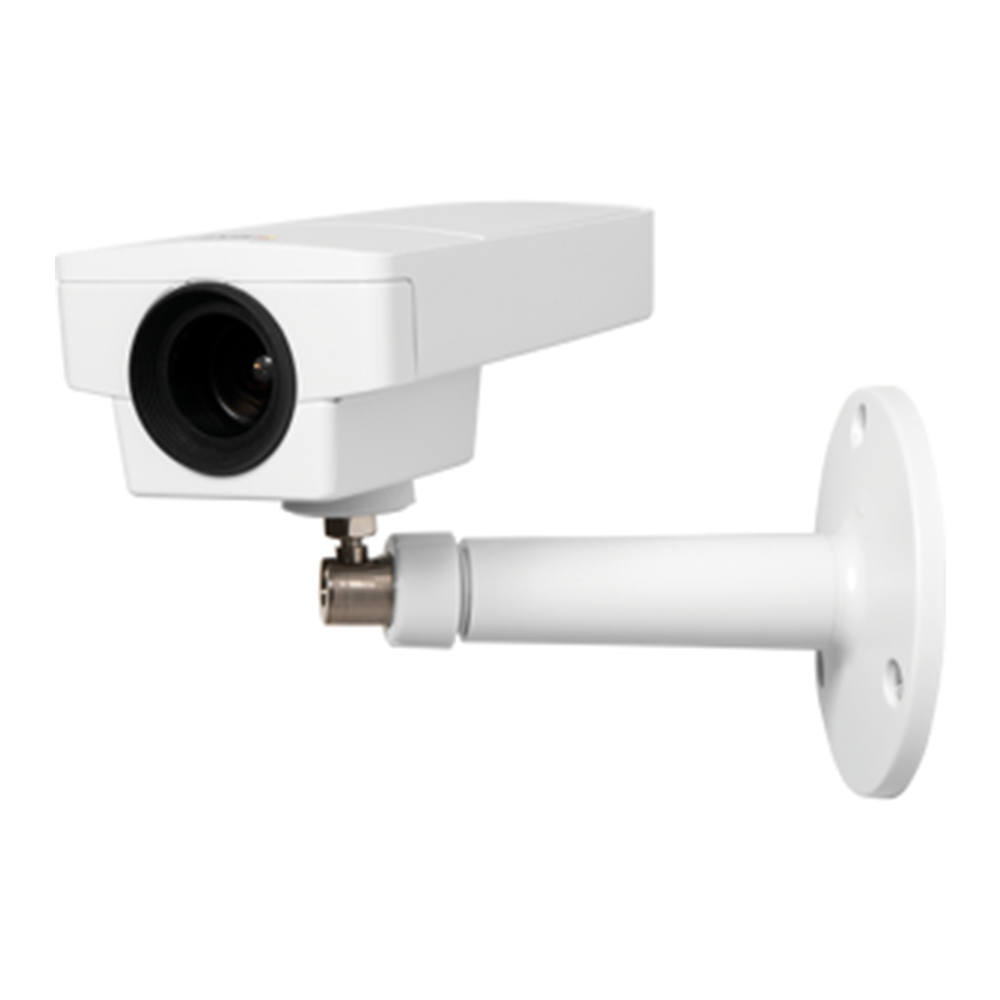

AXIS M1145

Përshkrimi

• Excellent image quality

AXIS M1145 with board-mount, varifocal, P-iris lens provides excellent image quality at 30 frames per second in 2 megapixel / HDTV resolution. The P-iris control provides optimal depth of field, resolution, image contrast and clarity.

• Edge storage for reliable surveillance systems

AXIS M1145 offers support for edge storage that allows recording video directly to a storage such as an microSD/SD/SDHC card, thereby creating a flexible and reliable video surveillance system.

• Ease of installation

Power over Ethernet supplies power to the camera via the network, eliminating the need for power cables and reducing installation costs. AXIS M1145 also offers remote zoom and focus that eliminates the need for hands-on fine tuning and ensures that the camera’s angle of view is optimized for the area to be monitored.

• I/O ports

The input/output port can be used for simple notification to an alarm panel or control of a relay or similar. The input is also ideal, for instance, when using a PIR sensor.

Technical Specifications

Camera

• Image sensor: 1/2.9″ progressive scan RGB CMOS
• Lens:

• Remote focus/zoom, Built-in IR-cut filter.
• Vertical field of view: 47°-19°.
• Horizontal field of view: 95°-34°.
• Varifocal, 3-10.5 mm, F1.4.

• Day and night: Automatically removable infrared-cut filter.
• Minimum illumination

• Color:4 lux, F1.4.
• B/W:08 lux, F1.4.

• Shutter time

• 1/28000 s to 2 s with 50 Hz.
• 1/33500 s to 2 s with 60 Hz.

Video

• Video compression: H.264 (MPEG-4 Part 10/AVC) Baseline, Main Profiles Motion JPEG.
• Resolutions: 1920×1080 to 160×90.
• Frame rate: 25/30 fps in all resolutions with power line frequency 50/60 Hz.
• Video streaming:

• Multiple, individually configurable streams in H.264 and Motion JPEG.
• Controllable frame rate and bandwidth VBR/MBR H.264.

Network

• Security: Password protection, IP address filtering, HTTPSa encryption, IEEE 802.1Xa network access control, digest authentication, user access log, centralized certificate management.
• Supported protocols: IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH.
