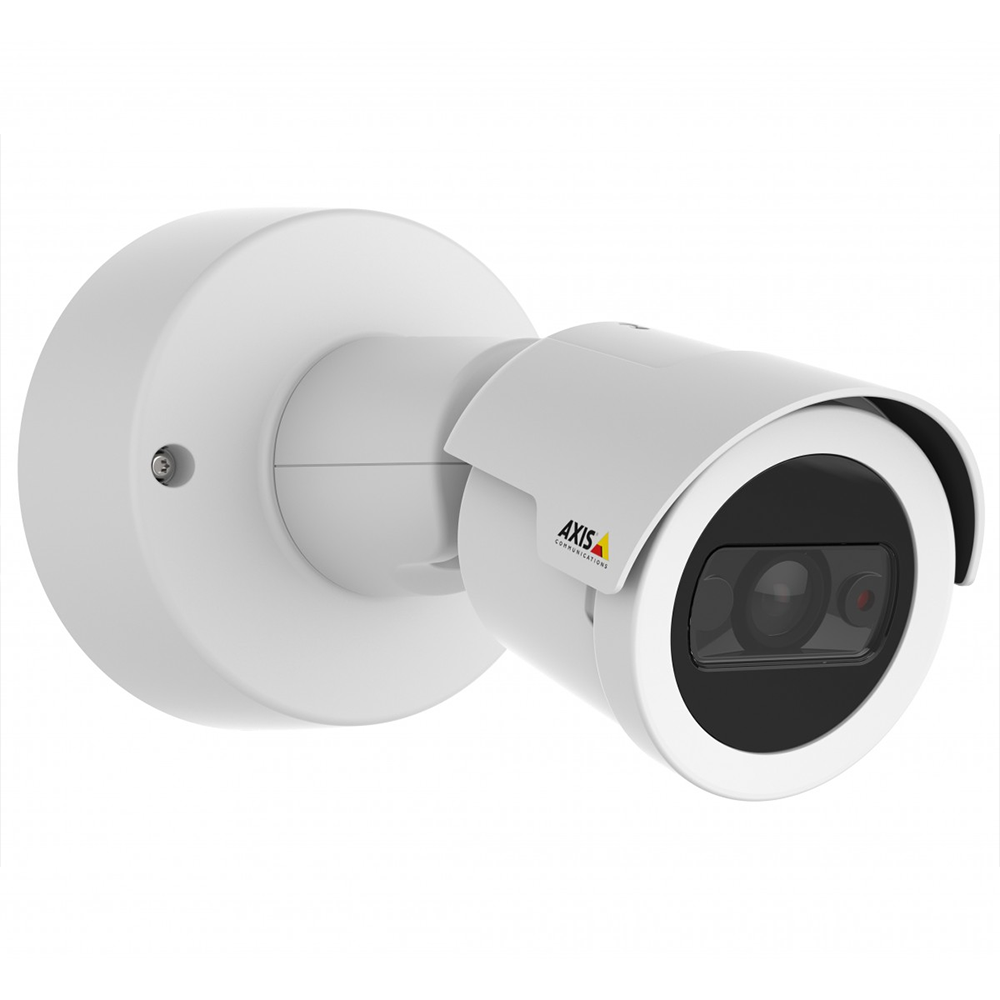

Name: AXIS M2025-LE Network Camera
Availability: OutOfStock

SKU: CP0000004361 SKU e prodhuesit: 0911-001 Kategori: Audio / Video, Cameras, Video Surveillance, Environment Monitoring Brand: Axis Communication

Axis fixed bullet cameras

Affordable and outdoor-ready camera with built-in IR

Day/night, compact and outdoor-ready bullet style HDTV camera, IP66- and IK08-rated. Built-in IR illumination and WDR – Forensic Capture. Fixed lens with 115° HFOV. Automatic IR cut filter. Multiple, individually configurable H.264 and Motion JPEG streams; max HDTV 1080p resolution at 30 fps. Axis’ Zipstream technology for reduced bandwidth and storage needs. Memory card slot for optional local video storage. Video motion detection, active tampering alarm and corridor format. Integrated bracket for easy mounting on wall and ceiling. Power over Ethernet. Operating conditions -30 °C to 50 °C (-22 °F to 122 °F). Midspan not included.

Key features:

1920 x 1080 Resolution at 30 fps
IR LEDs for Night Vision Up to 50′
2.8mm Fixed Lens at f/2.0 Aperture
115° Horizontal Field of View
microSD Slot for Edge Storage
H.264 and MJPEG Compression
Ethernet Connection with PoE Technology
ONVIF Profile S
IP66- and NEMA 4X-Rated for Outdoor Use
IK08-Rated for Impact Resistance

Datasheet

Përshkrimi

Axis Communications M2025-LE Specs

Camera
Image Sensor	1/2.8″ progressive scan RGB CMOS sensor
Lens	2.8mm, f/2.0
Mount	M12
Field of View	Horizontal: 115° Vertical: 64°
Day/Night	Automatically removable IR cut filter
Minimum Illumination	Color: 0.2 lux at 50 IRE, f/2.0 B&W: 0.04 lux at 50 IRE, f/2.0 0 lux with IR illumination on
Shutter Speed	1/65,000 to 2 sec

Video
Compression	H.264 (MPEG-4 Part 10/AVC) baseline, main, and high profiles MJPEG
Resolution	1920 x 1080 to 160 x 90 at 25/30 fps (50/60 Hz)
Streaming	Multiple, individually configurable streams in H.264 and MJPEG Controllable frame rate and bandwidth Axis’ Zipstream technology in H.264 VBR/MBR H.264
Multi-View Streaming	Up to 2 individually cropped out view areas in full frame rate
Image Settings	Compression, color, brightness, sharpness, contrast, local contrast, white balance, exposure control, WDR forensic capture (up to 115 dB), rotation (0, 90, 180, 270° including corridor format), text and image overlay, privacy masks, mirroring of images
ePTZ	Digital PTZ

Network
Security	Password protection, IP address filtering, HTTPS encryption, IEEE 802.1X, network access control, digest authentication, user access log, Centralized Certificate Management
Supported Protocols	IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH

System Integration
Application Programming Interface	Open API for software integration, including VAPIX and Axis Camera Application Platform Axis Video Hosting System (AVHS) with one-click connection, ONVIF Profile S
Analytics	Axis Video Motion Detection 3, active tampering alarm Support for Axis Camera Application Platform enabling installation of Axis Cross Line Detection, Axis Digital Autotracking and third-party applications
Event Trigger	Analytics, edge storage events
Event Action	Notification: Email, HTTP, HTTPS, and TCP and SNMP trap Video recording to edge storage Send video clip Pre- and post-alarm video buffering Overlay text
Data Streaming	Event data
Built-In Installation Aids	Pixel counter

Më shumë informacion

Max. frames per second	25/30
Day and night	Yes
Max. video resolution	1920x1080
Compression Type	MULTIPLE COMPRESSION TYPES
Environment	OUTDOOR
Signal Process	IP
PoE	Yes
Lens Type	Fixed
