AXIS M3024-LVE

Përshkrimi

• Outdoor-ready, day & night

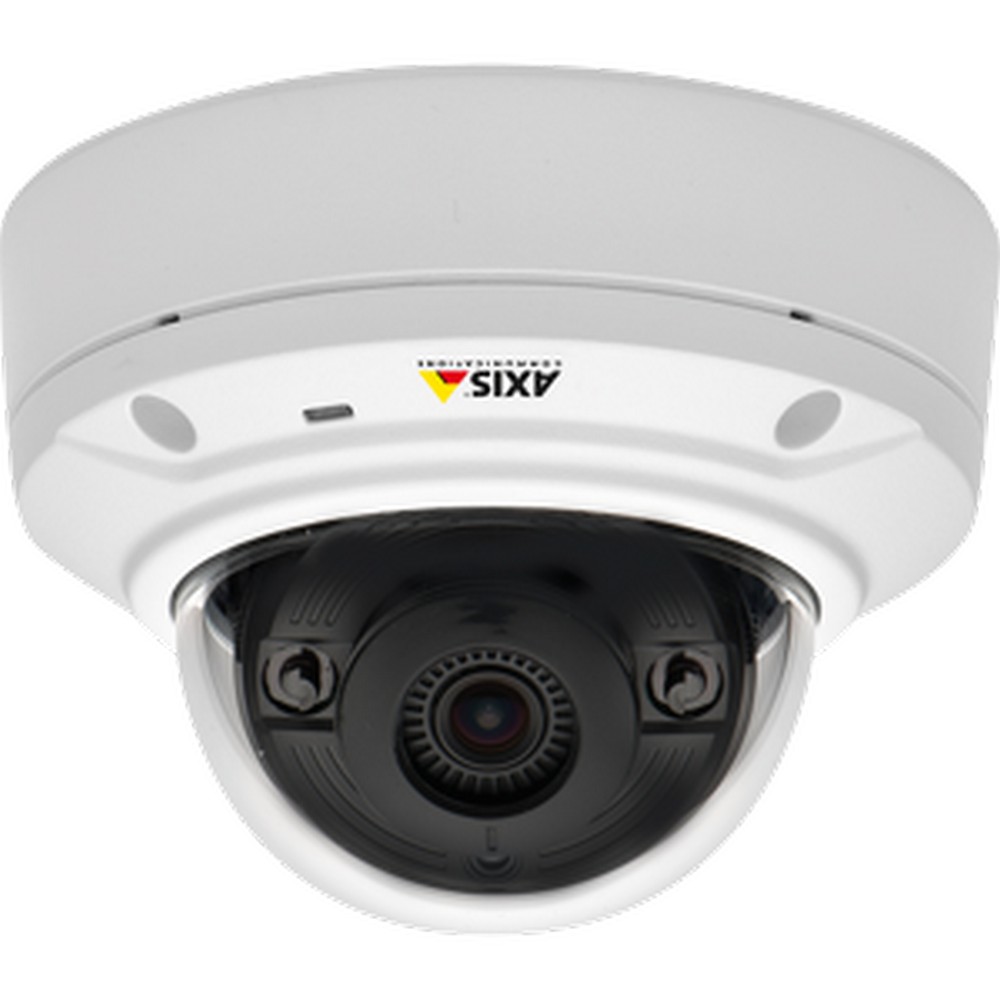

AXIS M3024-LVE Network Camera, which is part of the AXIS M30 Series, is an affordably priced, vandal-resistant HDTV fixed mini dome for excellent video during day and night-time conditions in indoor or outdoor environments. It is ideal for installation inside or outside the entrance of a hotel, boutique, restaurant, office or school.

• Easy to install

The fixed dome can be mounted on walls, ceilings or pendants. It has a 3-axis camera angle adjustment for flexible installation. The camera also supports Axis’ Corridor Format for vertically oriented video streams that maximize coverage of areas such as along walls or aisles. The camera comes focused at delivery.

Technical Specifications

Camera

• Image sensor: 1/4” progressive scan RGB CMOS.
• Lens: M12 mount, Fixed iris, IR corrected 2.8 mm, F2.0 Horizontal field of view: 77°.
• Day and night: Automatically removable infrared-cut filter.
• Light sensitivity/ minimum illumination Color: Color: 0.8-100000 lux, F2.0, B/W: 0.16 lux, F2.0, 0 lux with IR illumination on.
• Shutter time: 1/8000 s to 1/6 s.
• Camera angle adjustment: Pan ±175°, Tilt 65°, Rotation ±180°.

Video

• Video compression: H.264 (MPEG-4 Part 10/AVC) Main Profile Motion JPEG.
• Resolution: 1280×800 (1 MP) to 320×240.
• Frame rate: 25/30 fps with power line frequency 50/60 Hz.
• Video streaming: Multiple, individually configurable streams in H.264 and Motion JPEG Controllable frame rate and bandwidth VBR/CBR H.264.

Network

• Security: Password protection, IP address filtering, HTTPSa encryption, IEEE 802.1Xa network access control, Digest authentication, User access log, Centralized Certificate Management.
• Supported protocols: IPv4/v6, HTTP, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH.

General

• Casing: IP66- and NEMA 4X-rated, IK10 impact-resistant aluminum casing with transparent, polycarbonate cover and dehumidifying membrane, Encapsulated electronics, Captive screws (resitorx 10) Color: White NCS S 1002-B
• Memory: 256 MB RAM, 128 MB Flash.
• Power: Power over Ethernet IEEE 802.3af/802.3a Type 1 Class 2 max 6.3 W.
• Connectors: Male RJ45 10BASE-T/100BASE-TX PoE on a 2 m (6.6 ft) network cable, warranty can be maintained even when cable is cut-for more information, contact your Axis partner Terminal block for 1 alarm input and 1 output.
