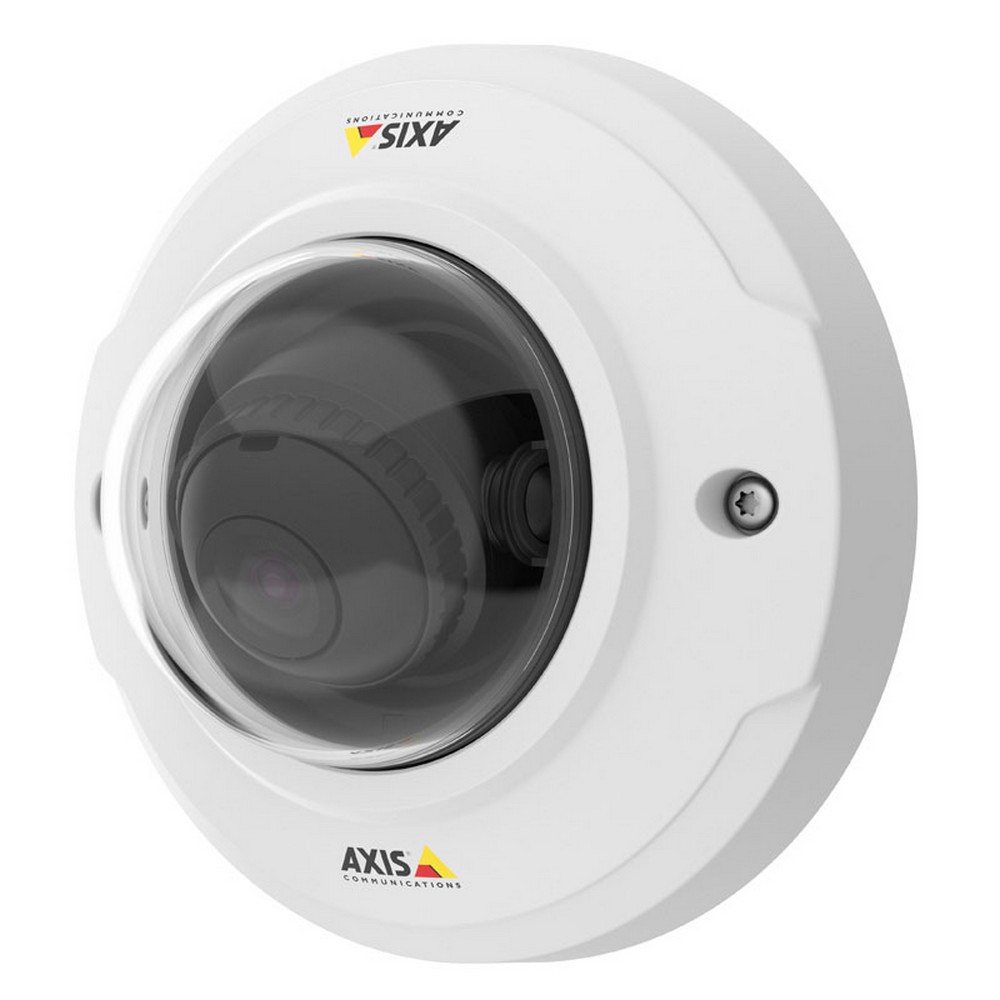

AXIS M3044-V Network Camera

SKU: CP0000004455 SKU e prodhuesit: 0802-001 Kategori: , , , Brand:

Axis fixed dome cameras

HDTV 720p fixed mini dome

Ultra-compact, indoor fixed mini dome with dust- and vandal-resistant casing for easy mounting on wall or ceiling. Fixed lens. Multiple, individually configurable H.264 and Motion JPEG streams; max HDTV 720p resolution at 30 fps with WDR. Axis’ Zipstream technology for reduced bandwidth and storage needs. Memory card slot for optional local video storage. Video motion detection and active tampering alarm. Power over Ethernet. Midspan not included.

Key features :

  • Capable of delivering up to HD 720p resolution at 25 fps, providing high quality CCTV footage
  • Wide Dynamic Range technology improves image quality in complex lighting conditions
  • Axis Corridor Format reduces bandwidth waste by vertically orientating the stream – capturing only what is essential
  • Ultra compact form factor provides a discreet surveillance solution for indoor applications
  • Camera is factory focused and features 3-axis lens adjustment to help make installation quick and easy
  • Vandal resistant, IK08 rated housing is ideal for installation in areas prone to tampering
  • Video motion detection and tampering alarms can be used to trigger recordings and alert operators of possible incidents
  • Axis Zipstream technology lowers bandwidth and storage – whilst maintaining resolution and frame rate
  • Support for recording to MicroSD allows the camera to be used as a standalone unit
  • PoE delivers both power and network connectivity to the camera through the same cable – reducing the cost of installation

Typical applications

The Axis M3044-V mini-dome provides high quality CCTV monitoring of indoor areas at an affordable price. It’s easy to install and provides clear imaging in a range of complex lighting conditions. This compact IP camera is suitable for smaller installations such as independent retail stores, GP surgeries and restaurants.

Datasheet

Out of stock

Përshkrimi

Key technical features of the Axis M3044-V

Camera
Environment: indoor (IK08 rated)
Type: fixed mini dome
Sensor: 1/3.” progressive scan RGB CMOS
Lens: M12 mount, fixed iris, fixed focus, 2.8 mm, F2.0, horizontal field of view: 82°
Audio: not given
Power: Power-over-Ethernet IEEE 802.3af/802.3at Type 1 Class 1, typical: 2.5 W, max: 2.9 W
Memory: 512 MB RAM, 256 MB Flash
Video
Resolution: (1280 x 720) to (320 x 240)
Compression: H.264 (MPEG-4 Part 10/AVC), Main, Baseline and High Profiles, Motion JPEG
Frame-rate: 25 fps
Bandwidth control: multiple, individually configurable streams in H.264 and Motion JPEG, controllable frame rate and bandwidth, Axis’ Zipstream technology in H.264, VBR/MBR H.264
Day/night: not given
Minimum illumination: 0.25 lux at 50 IRE F2.0
Digital zoom/PTZ not given
Video overlay: text and image
Imaging: compression, colour, brightness, sharpness, contrast, white balance, exposure control, backlight compensation, wide dynamic range, rotation: 0°, 90°, 180°, 270°, mirroring of images, including Corridor Format
Viewing, detection & recording
Privacy masking: yes
Number of users: not given
External alarm inputs and outputs not given
Alarm detection: AXIS Video Motion Detection 3, Active tampering alarm, support for AXIS Camera Application Platform enabling installation of AXIS Cross Line Detection and third-party applications
Alarm action: file upload: FTP, SFTP, HTTP, HTTPS network share and email, notification: email, HTTP, HTTPS and TCP and SNMP trap, video recording to edge storage, send video clip, overlay text
Pre-/post-alarm buffer: yes
On-camera recording: MicroSD/microSDHC/microSDXC slot supporting memory card up to 64 GB (card not included), support for recording to dedicated network-attached storage (NAS)
Recording software supported: Axis Companion Software, Axis Camera Station
Connections
Power: Power over Ethernet IEEE 802.3af/802.3at Type 1 Class 1
Network: RJ45 10BASE-T/100BASE-TX PoE, max. 2.9W
Alarm I/O not given
Other
Dimensions: Ø101mm x 56mm
Weight: 0.17kg
Casing: colour: white, encapsulated electronics, IP42 water- and dust-resistant, IK08 impact-resistant, polycarbonate/ABS casing
Warranty: 3 year
Mounting methods: ceiling, wall
Operating temperatures: -0°C to 45°C
Power consumption: max. 2.9W
Dynamic DNS: yes
Protocols supported: IPv4/v6, HTTP, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH
QoS: yes
Security: password protection, IP address filtering, HTTPSb encryption, IEEE 802.1Xb network access control, digest authentication, user access log
ONVIF compliant: yes, profile S



Më shumë informacion

Day and night Not given
Max. video resolution 1280x720
Max. frames per second 50/60
Environment Indoor
PoE Yes
Lens Type Fixed
Signal Process IP
