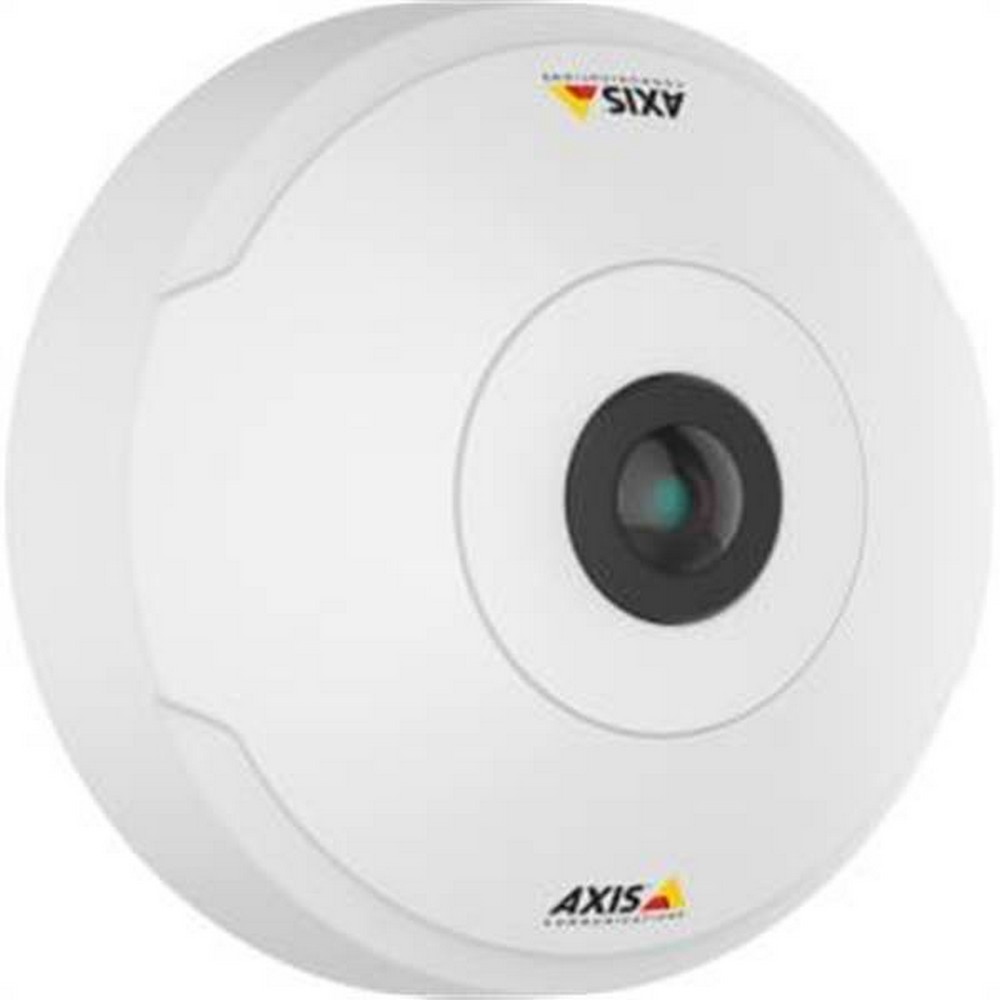

Name: AXIS M3047-P Network Camera
Availability: OutOfStock

SKU: CP0000004447 SKU e prodhuesit: 0808-001 Kategori: Audio / Video, Video Surveillance, Environment Monitoring Brand: Axis Communication

Axis fixed dome cameras

6 MP mini dome with 360° panoramic view

Ultra-compact, indoor fixed mini dome with 6 MP sensor, fixed lens and and tamper-resistant casing for easy mounting on wall or ceiling. Provides 360°/180° overview and dewarped panorama, quad, corner, corridor or digital PTZ views in up to 30 fps. Multiple, individually configurable H.264 and Motion JPEG streams. Client dewarping also supported. Axis’ Zipstream technology for reduced bandwidth and storage needs. Video motion detection and active tampering alarm. HDMI output (micro). Memory card slot for optional local video storage. Environment-friendly, PVC-free with recycled plastics. Power over Ethernet. Midspan not included.

Key features:

Fisheye lens with a 360° angle of view offers panoramic overviews of open plan indoor locations
Up to 6 megapixel resolution is supported to provide high quality IP CCTV surveillance
Supported viewing modes such as panorama and quad view allow areas of the scene to be seen with little distortion
Regions of the original fisheye image can be examined in detail using digital pan/tilt/zoom controls
Multi-view streaming allows the full 360° image to be streamed simultaneously alongside 2 cropped views or a single dewarped view
Wide dynamic range (WDR) – Dynamic Contrast ensures the capture of details in high contrast scenes
Configurable, camera-based video motion detection and tampering alarms help to enhance security monitoring
Simple video management for up to 16 cameras using the free Axis Companion application
Unit’s discreet form factor and ‘no-dome’ design blends in easily with most environments to provide unobtrusive CCTV
HDMI output allows the connection of an HD monitor for live footage display
Recordings can be written to the on-board MicroSD card (not included) – helpful in a standalone set up
Axis’ Zipstream technology lowers bandwidth by analysing and optimising the video stream in real time
Support for power and network connectivity through PoE enables simple installation

Typical applications

The Axis M3047-P dome IP camera is a suitable choice for organisations that require discreet, 360° overviews of indoor locations. Typical applications include independent retail stores, waiting areas and open plan offices.

Datasheet

Përshkrimi

Key technical features of the Axis M3047-P

Camera
Environment:	indoor
Type:	fixed mini dome
Sensor:	1/1.8” progressive scan RGB CMOS
Lens:	fixed iris, fixed focus, 1.6 mm, F2.8, horizontal field of view: 185°, vertical field of view: 185°
Audio:	not given
Power:	Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 2 Typical 4.2 W, max 6.49 W
Memory:	1024 MB RAM, 256 MB Flash
Video
Resolution:	360° overview: (2048 x 2048) to (480 x 480), panorama: (2304 x 648) to (640 x 240), double panorama: (2304 x 1296) to (480 x 360), quad view: (2304 x 1296) to (480 x 360), view area: (1920 x 1440) to (480 x 360), corner left or right: (1920 x 1440) to (640 x 240), double corner (1920 x 1440), corridor: (2304 x 1296) to (480 x 360)
Compression:	H.264 (MPEG-4 Part 10/AVC), Main, Baseline and High Profiles, Motion JPEG
Frame-rate:	360° overview: up to (2048 x 2048) @ 30/15 fps, dewarped view in max resolution and 360° overview up to (1920 x 1920) @ 25/13 fps, view areas in (1280 x 720) and 360° overview up to (1200 x 1200) @ 30/15 fps
Bandwidth control:	multiple, individually configurable streams in H.264 and Motion JPEG, controllable frame rate and bandwidth, Axis’ Zipstream technology in H.264, VBR/MBR H.264, HDMI
Day/night:	not given
Minimum illumination:	0.3 lux at 50 IRE F2.8
Digital zoom/PTZ	yes
Video overlay:	text and image
Imaging:	compression, colour, brightness, sharpness, contrast, white balance, exposure control, exposure zones, WDR – dynamic contrast, noise reduction, rotation: 0°, 90°, 180°, 270°, mirroring of images
Multi-view streaming	360° overview, dewarped panorama, corridor, corner and quad views, two individually cropped out and dewarped view areas, 360° overview can be streamed simultaneously with two view areas or one other dewarped view
Viewing, detection & recording
Privacy masking:	yes
Number of users:	not given
External alarm inputs and outputs	not given
Alarm detection:	Axis Video Motion Detection, Active tampering alarm, support for AXIS Camera Application Platform enabling installation of third-party applications
Alarm action:	file upload: FTP, SFTP, HTTP, HTTPS network share and email, notification: email, HTTP, HTTPS and TCP and SNMP trap, video recording to edge storage, send video clip, overlay text
Pre-/post-alarm buffer:	yes
On-camera recording:	MicroSD/microSDHC/microSDXC slot supporting memory card up to 64 GB (card not included), support for recording to dedicated network-attached storage (NAS)
Recording software supported:	Axis Companion Software, Axis Camera Station
Connections
Power:	Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 2 Typical 4.2 W, max 6.49 W
Network:	RJ45 10BASE-T/100BASE-TX PoE
Alarm I/O	not given
Other	HDMI type D, HD 720p @ 50 fps
Other
Dimensions:	Ø101mm x 46mm
Weight:	0.24kg
Casing:	colour: white, aluminium and plastic casing, encapsulated electronics
Warranty:	3 years
Mounting methods:	ceiling, wall
Operating temperatures:	-0°C to 40°C
Power consumption:	max. 6.49W
Dynamic DNS:	yes
Protocols supported:	IPv4/v6, HTTP, HTTPSa, SSL/TLSa, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, HDMI 1.4b
QoS:	yes
Security:	password protection, IP address filtering, HTTPSb encryption, IEEE 802.1Xb network access control, digest authentication, user access log
ONVIF compliant:	yes, profile S

Më shumë informacion

Day and night	Yes
Max. video resolution	2048x2048
Max. frames per second	25/30
PoE	Yes
Environment	Indoor
Signal Process	IP
