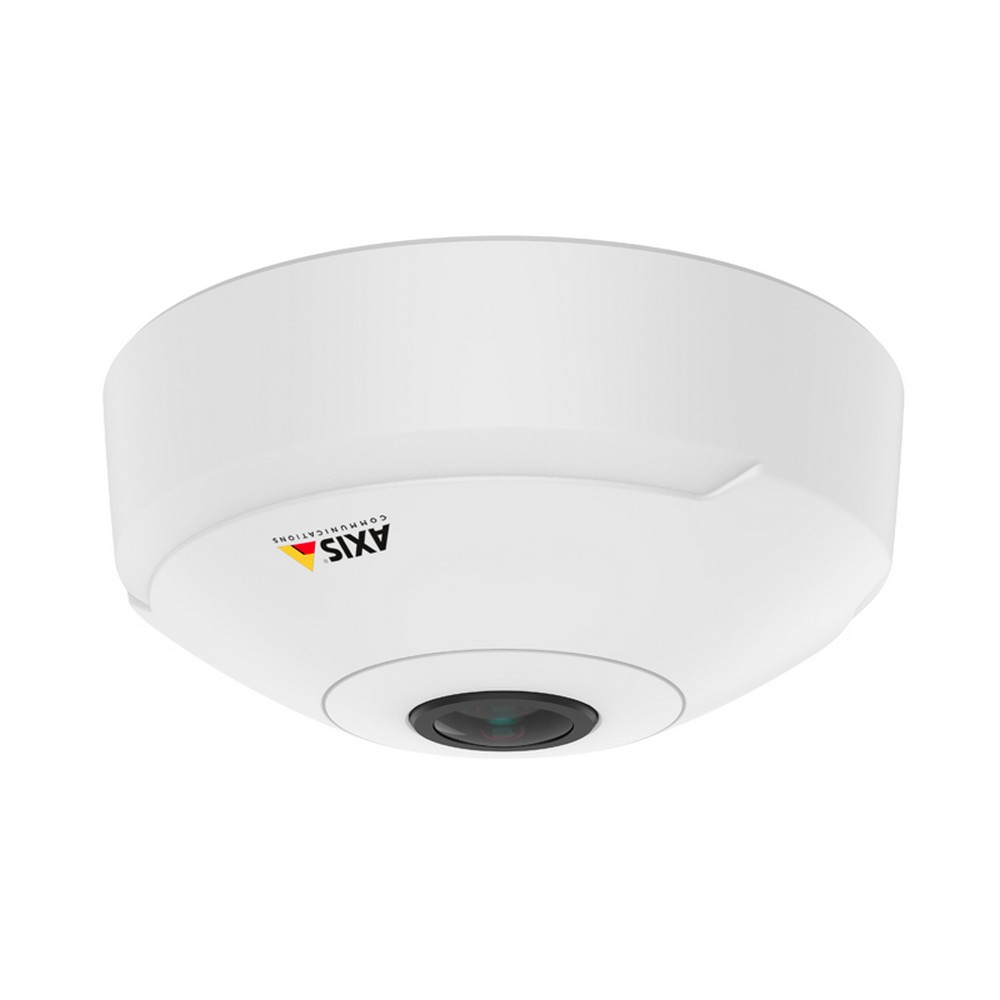

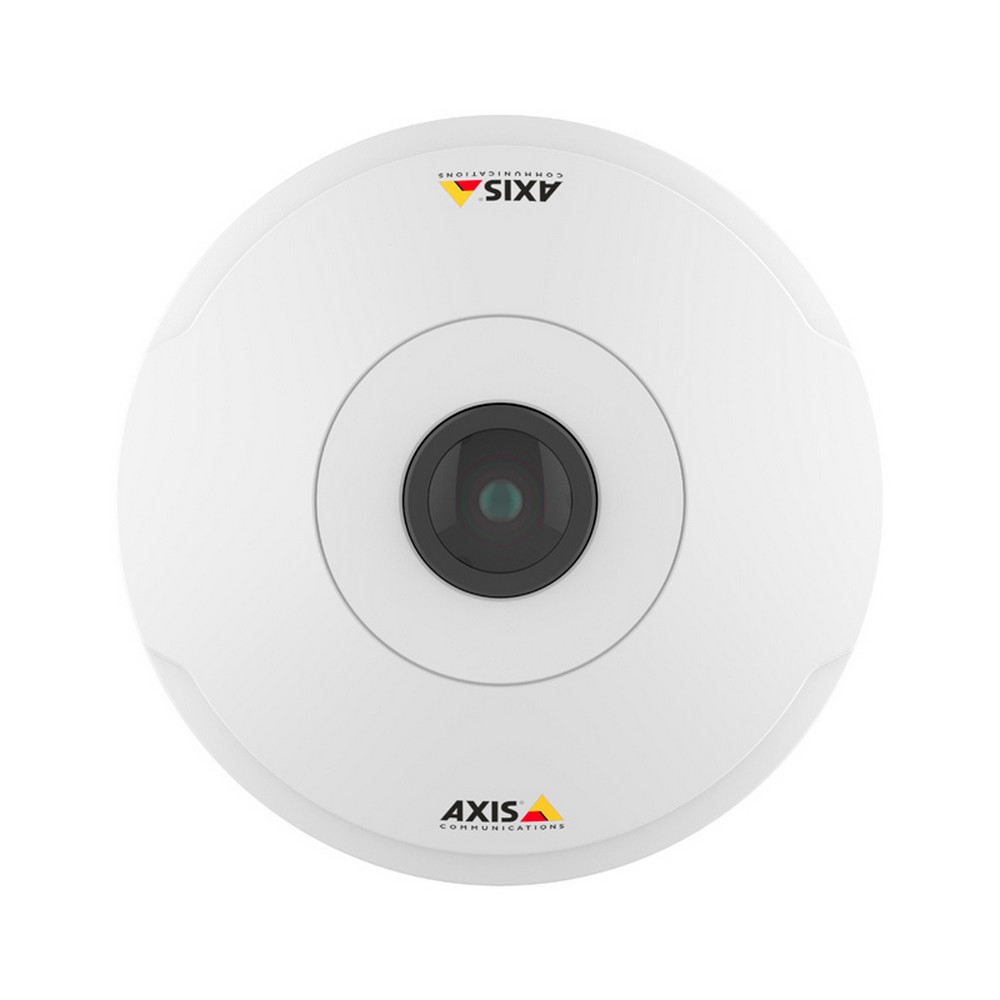

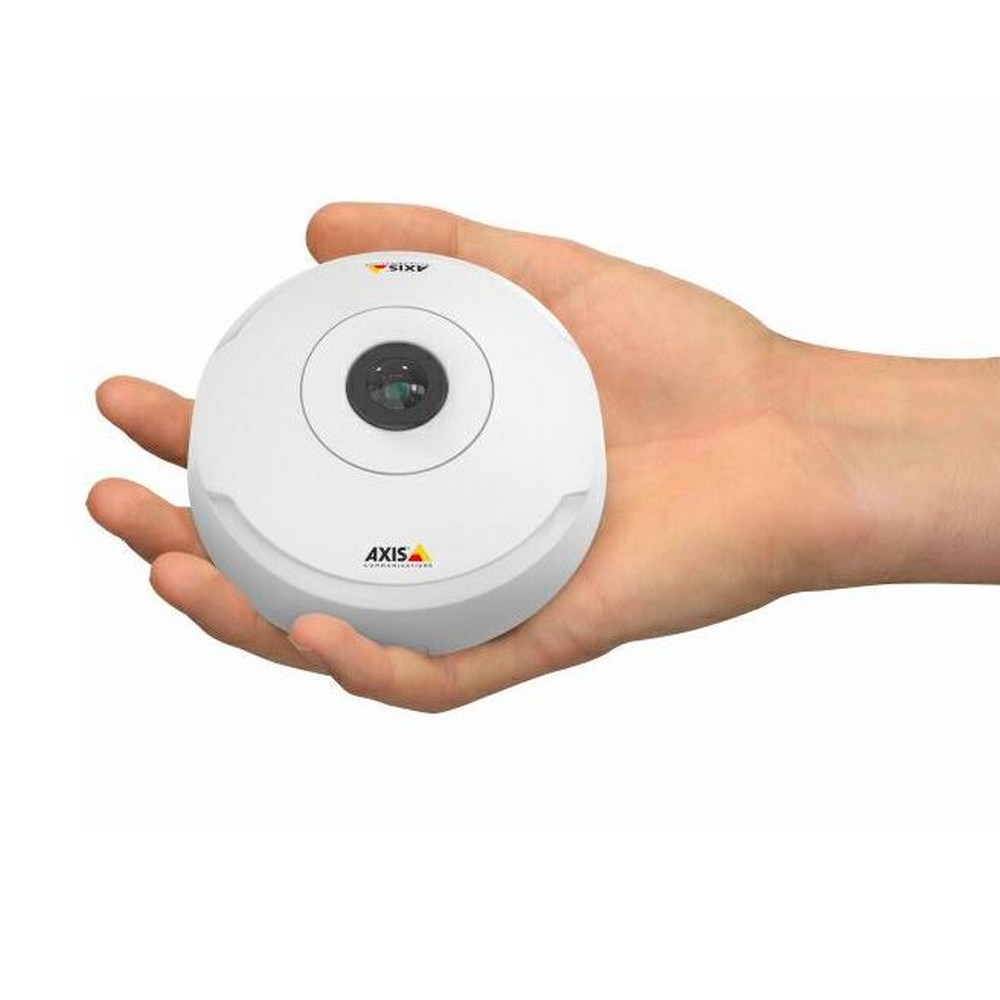

AXIS M3048-P Network Camera

SKU: CP0000004446 SKU e prodhuesit: 01004-001 Kategori: , , , Brand:

Axis fixed dome cameras

12 MP mini dome with 360° panoramic view

Ultra-compact, indoor fixed mini dome with 12 MP sensor, fixed lens and and tamper-resistant casing for easy mounting on wall or ceiling. Provides 360°/180° overview in up to 30 fps and dewarped panorama, quad, corner, corridor or digital PTZ views in up to 15 fps. Multiple, individually configurable H.264 and Motion JPEG streams. Client dewarping also supported. Axis’ Zipstream technology for reduced bandwidth and storage needs. Video motion detection and active tampering alarm. HDMI output (micro). Memory card slot for optional local video storage. Environment-friendly, PVC-free with recycled plastics. Power over Ethernet. Midspan not included.

Key features:

  • Fisheye lens with a 360° angle of view offers panoramic overviews of open plan indoor locations
  • Capable of delivering up to 12 megapixel resolution for detail-packed video footage
  • Viewing modes including panorama and quad view allow areas of the scene to be seen with little distortion
  • Users can examine areas of the original image in greater detail using digital pan/tilt/zoom controls
  • Multi-view streaming allows the full 360° image to be streamed simultaneously alongside 2 cropped views or a single dewarped view
  • Wide dynamic range (WDR) – Dynamic Contrast enables details in scenes with both bright and dark areas to be viewed clearly
  • Configurable video motion detection alarms notify users of activity and enhance security monitoring
  • Free video management for a maximum of 16 IP cameras using the Axis Companion application
  • Unit’s discreet form factor and ‘no-dome’ design blends in easily with most environments to provide unobtrusive CCTV
  • Live footage from the camera can be displayed when a monitor is connected through the HDMI output
  • Local storage to MicroSD card (not included) provides a handy standalone solution
  • Optimised real-time streaming with Axis Zipstream technology that reduces bandwidth and storage requirements by up to 50%
  • PoE supplies both power and network connection through one cable for a cost-effective installation

Typical applications

The Axis M3048-P dome IP camera is suitable for indoor organisations that require high resolution imaging and 360° overviews. Typical applications include supermarkets, open plan offices and museums.

Datasheet

Out of stock

Përshkrimi

Key technical features of the Axis M3048-P

Camera
Environment: indoor
Type: fixed mini dome
Sensor: 1/1.7” progressive scan RGB CMOS
Lens: fixed iris, fixed focus, 1.65 mm, F2.8, horizontal field of view: 185°, vertical field of view: 185°
Audio: not given
Power: Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 2 Typical 5.6 W, max 6.49 W
Memory: 1024 MB RAM, 256 MB Flash
Video
Resolution: 360° overview: (2880 x 2880) to (480 x 480), panorama: (2560 x 720) to (640 x 240), double panorama: (2560 x 1440) to (480 x 360), quad view: (2560 x 1440) to (480 x 360), view area: (2048 x 1152) to (480 x 360), corner left or right: (1920 x 720) to (640 x 240), double corner (1920 x 1440) to (480 x 360), corridor: (2560 x 1440) to (640 x 360)
Compression: H.264 (MPEG-4 Part 10/AVC), Main, Baseline and High Profiles, Motion JPEG
Frame-rate: 360° overview:  up to (2880 x 2880) @ 30/25 fps, dewarped view in max resolution and 360° overview up to (2048 x 2048) @ 25/13 fps
Bandwidth control: multiple, individually configurable streams in H.264 and Motion JPEG, controllable frame rate and bandwidth, Axis’ Zipstream technology in H.264, VBR/MBR H.264, HDMI
Day/night: not given
Minimum illumination: 0.35 lux at 50 IRE F2.8
Digital zoom/PTZ yes
Video overlay: text and image
Imaging: compression, colour, brightness, sharpness, contrast, white balance, exposure control, exposure zones, WDR – dynamic contrast, noise reduction, rotation: 0°, 90°, 180°, 270°, mirroring of images
Multi-view streaming 360° overview, dewarped panorama, corridor, corner and quad views, two individually cropped out and dewarped view areas, 360° overview can be streamed simultaneously with two view areas or one other dewarped view
Viewing, detection & recording
Privacy masking: yes
Number of users: not given
External alarm inputs and outputs not given
Alarm detection: Axis Video Motion Detection, Active tampering alarm, support for AXIS Camera Application Platform enabling installation of third-party applications
Alarm action: file upload: FTP, SFTP, HTTP, HTTPS network share and email, notification: email, HTTP, HTTPS and TCP and SNMP trap, video recording to edge storage, send video clip, overlay text
Pre-/post-alarm buffer: yes
On-camera recording: MicroSD/microSDHC/microSDXC slot supporting memory card up to 64 GB (card not included), support for recording to dedicated network-attached storage (NAS)
Recording software supported: Axis Companion Software, Axis Camera Station
Connections
Power: Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 2 Typical 4.2 W, max 6.49 W
Network: RJ45 10BASE-T/100BASE-TX PoE
Alarm I/O not given
Other HDMI type D, HD 720p @ 50 fps
Other
Dimensions: Ø101mm x 46mm
Weight: 0.24kg
Casing: colour: white, aluminium and plastic casing, encapsulated electronics
Warranty: 3 years
Mounting methods: ceiling, wall
Operating temperatures: -0°C to 40°C
Power consumption: max. 6.49W
Dynamic DNS: yes
Protocols supported: IPv4/v6, HTTP, HTTPSa, SSL/TLSa, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, HDMI 1.4b
QoS: yes
Security: password protection, IP address filtering, HTTPSb encryption, IEEE 802.1Xb network access control, digest authentication, user access log
ONVIF compliant: yes, profile S



Më shumë informacion

Day and night mode Yes
Max. video resolution 2880x2880
Max. frames per second 25/30
Environment Indoor
Signal Process IP
PoE Yes
Lens Type Fixed iris
