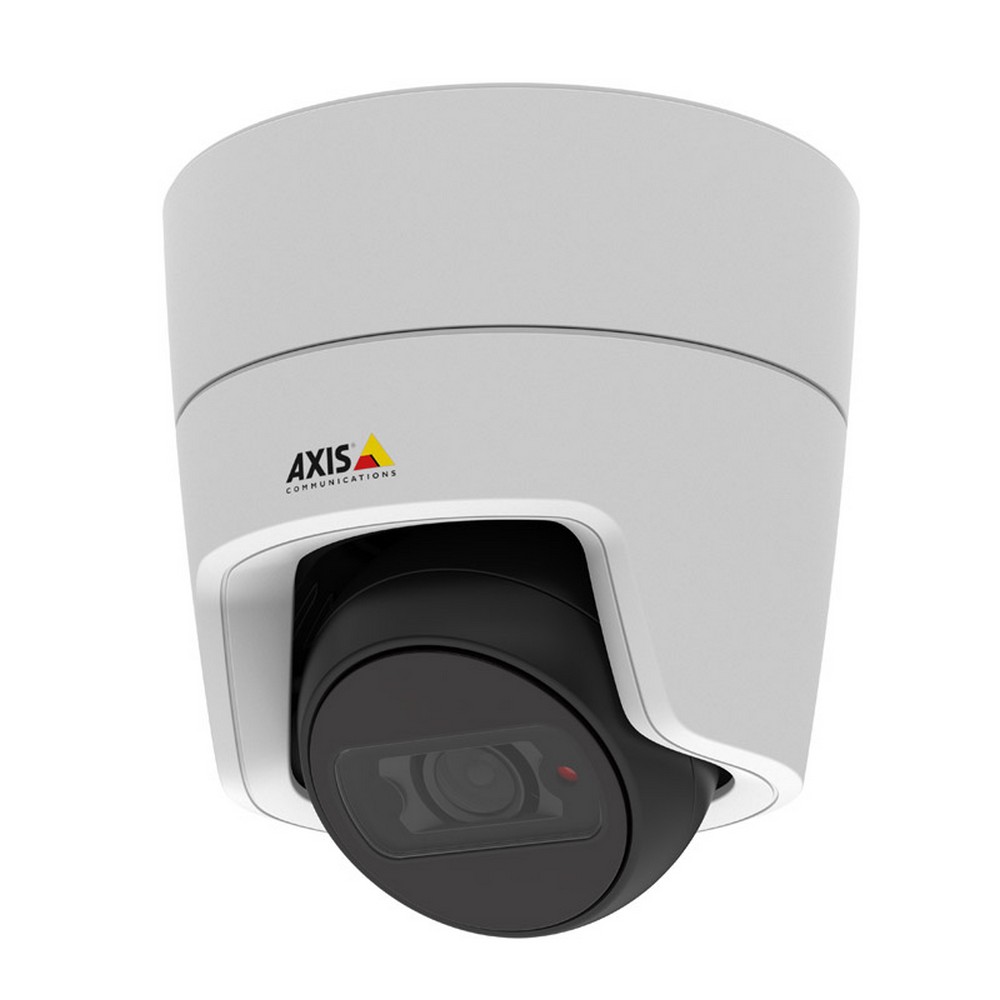

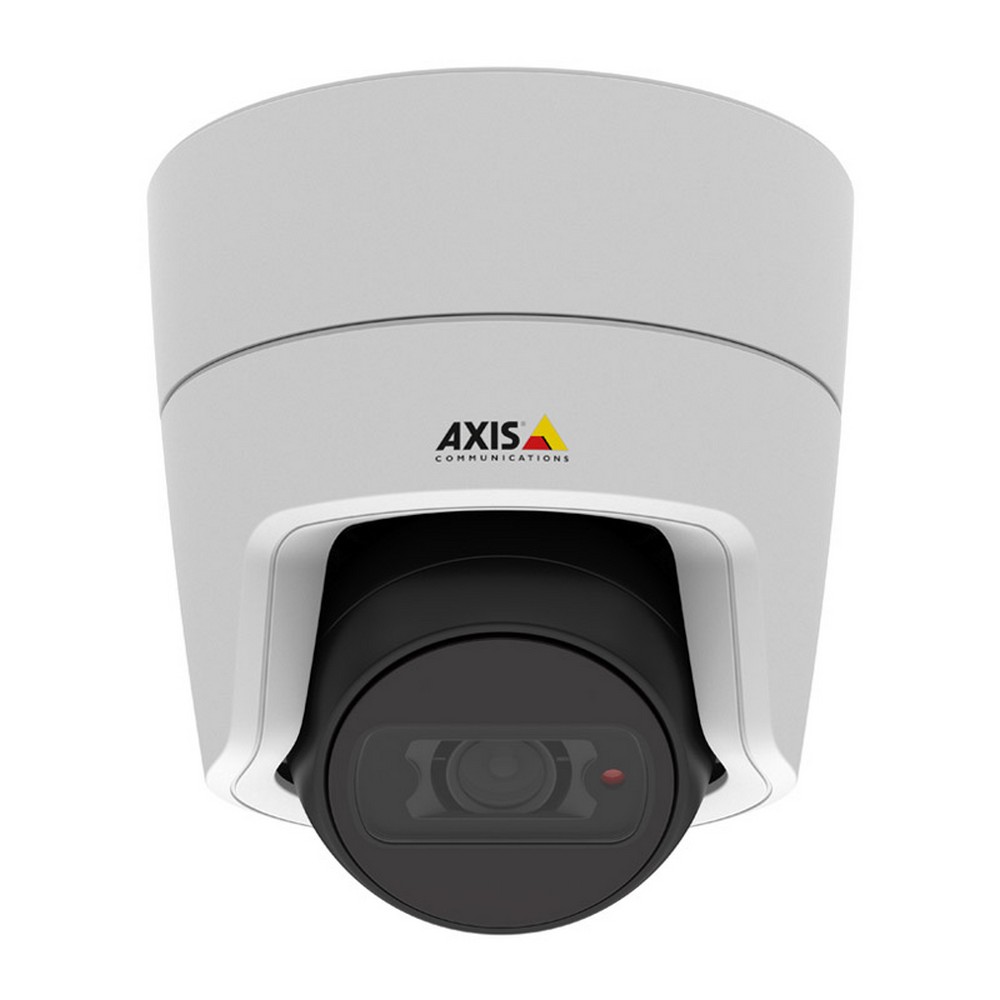

AXIS M3105-LVE Network Camera

SKU: CP0000004442 SKU e prodhuesit: 0868-001 Kategori: , , , Brand:

Axis fixed dome cameras

Discreet, outdoor-ready HDTV 1080p video surveillance with built-in IR illumination

Day/night, compact mini dome in a vandal-resistant, outdoor-ready, flat-faced design. Built-in IR illumination and WDR – Forensic Capture. Fixed lens. Multiple, individually configurable H.264 and Motion JPEG streams; max HDTV 1080p resolution at 30 fps. Axis’ Zipstream technology for reduced bandwidth and storage needs.  Memory card slot for optional local video storage. Video motion detection and active tampering alarm. Power over Ethernet. Midspan not included.

Key features & benefits

  • Capable of delivering up to HD 1080p resolution at 25 fps, providing high quality CCTV footage
  • True day/night functionality with integrated IR-cut filter provides round-the-clock surveillance
  • Outdoor-ready housing is IK08-rated to provide protection in exposed areas
  • Power efficient, built-in infrared LED provides up to 15m of night-vision
  • Innovative flat-faced design reduces light reflections to improve images captured in low light
  • WDR – Forensic Capture technology improves image quality in scenes with high contrast lighting
  • Axis Corridor Format vertically orientates the video stream – allowing the field of view to be optimised for use in narrow scenes
  • Free video management for up to 16 cameras using the Axis Companion application
  • Configurable, camera-based video motion detection and tampering alarms help to enhance security monitoring
  • Local recording to MicroSD card (not included) enables the unit to be used as a standalone system
  • PoE supplies power and network connection over one cable for quick and cost-effective deployment
  • 3-axis mount enables easy manual adjustment of the lens for quick set up
  • Axis’ Zipstream technology optimises the video stream in real-time, lowering bandwidth and storage levels by up to 50%

Typical applications

The Axis M3105-LVE is a feature packed mini-dome offering HD 1080p resolution and improved imaging in low light. It’s an ideal solution for users requiring 24-hour CCTV surveillance in locations such as industrial units, goods delivery areas and car parks.

Datasheet

Out of stock

Përshkrimi

Key technical features of the Axis M3105-LVE

Camera
Environment: Outdoor (IP66 and IK08 rated)
Type: fixed mini dome
Sensor: 1/2.8” progressive scan RGB CMOS
Lens: M12 mount, fixed iris, fixed focus, 2.8 mm, F2.0, horizontal field of view: 115°
Audio: not given
Power: Power-over-Ethernet IEEE 802.3af/802.3at Type 1 Class 2, typical: 4.2 W, max: 6.2 W
Memory: 512 MB RAM, 256 MB Flash
Video
Resolution: (1920 x 1080) to (176 x 120)
Compression: H.264 (MPEG-4 Part 10/AVC), Main, Baseline and High Profiles, Motion JPEG
Frame-rate: 25 fps
Bandwidth control: multiple, individually configurable streams in H.264 and Motion JPEG, controllable frame rate and bandwidth, Axis’ Zipstream technology in H.264, VBR/MBR H.264
Day/night: automatically removable infrared-cut filter
Minimum illumination: colour: 0.2 lux, b/w: 0.04 lux, 0 lux with IR illumination on, IR illumination: 15m
Digital zoom/PTZ yes
Video overlay: text and image
Imaging: compression, colour, brightness, sharpness, contrast, white balance, exposure control, backlight compensation, wide dynamic range – Forensic Capture, rotation: 0°, 90°, 180°, 270°, mirroring of images, including Corridor Format
Viewing, detection & recording
Privacy masking: yes
Number of users: not given
External alarm inputs and outputs not given
Alarm detection: AXIS Video Motion Detection 3, Active tampering alarm, support for AXIS Camera Application Platform enabling installation of AXIS Cross Line Detection and third-party applications
Alarm action: notification: email, HTTP, HTTPS and TCP and SNMP trap, video recording to edge storage, send video clip, overlay text
Pre-/post-alarm buffer: yes
On-camera recording: MicroSD/microSDHC/microSDXC slot supporting memory card up to 64 GB (card not included), support for recording to dedicated network-attached storage (NAS)
Recording software supported: Axis Companion Software, Axis Camera Station
Connections
Power: Power over Ethernet IEEE 802.3af/802.3at Type 1 Class 2
Network: RJ45 10BASE-T/100BASE-TX PoE, max. 6.2W
Alarm I/O not given
Other
Dimensions: Ø101mm x 94mm
Weight: 0.38kg
Casing: colour: white, IP66, NEMA 250 Type 4X and IK08-rated, ASA polymer casing
Warranty: 3 year
Mounting methods: ceiling, wall
Operating temperatures: -30°C to 50°C
Power consumption: max. 6.2W
Dynamic DNS: yes
Protocols supported: IPv4/v6, HTTP, HTTPSa, SSL/TLSa, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH
QoS: yes
Security: password protection, IP address filtering, HTTPSb encryption, IEEE 802.1Xb network access control, digest authentication, user access log
ONVIF compliant: yes, profile S



Më shumë informacion

Day and night mode Yes
Max. video resolution 1920x1080
Max. frames per second 25/30
Environment Outdoor
Signal Process IP
PoE Yes
Lens Type Fixed
