AXIS M3106-LVE Network Camera

Axis fixed dome cameras

Discreet, outdoor-ready 4 MP video surveillance with built-in IR illumination

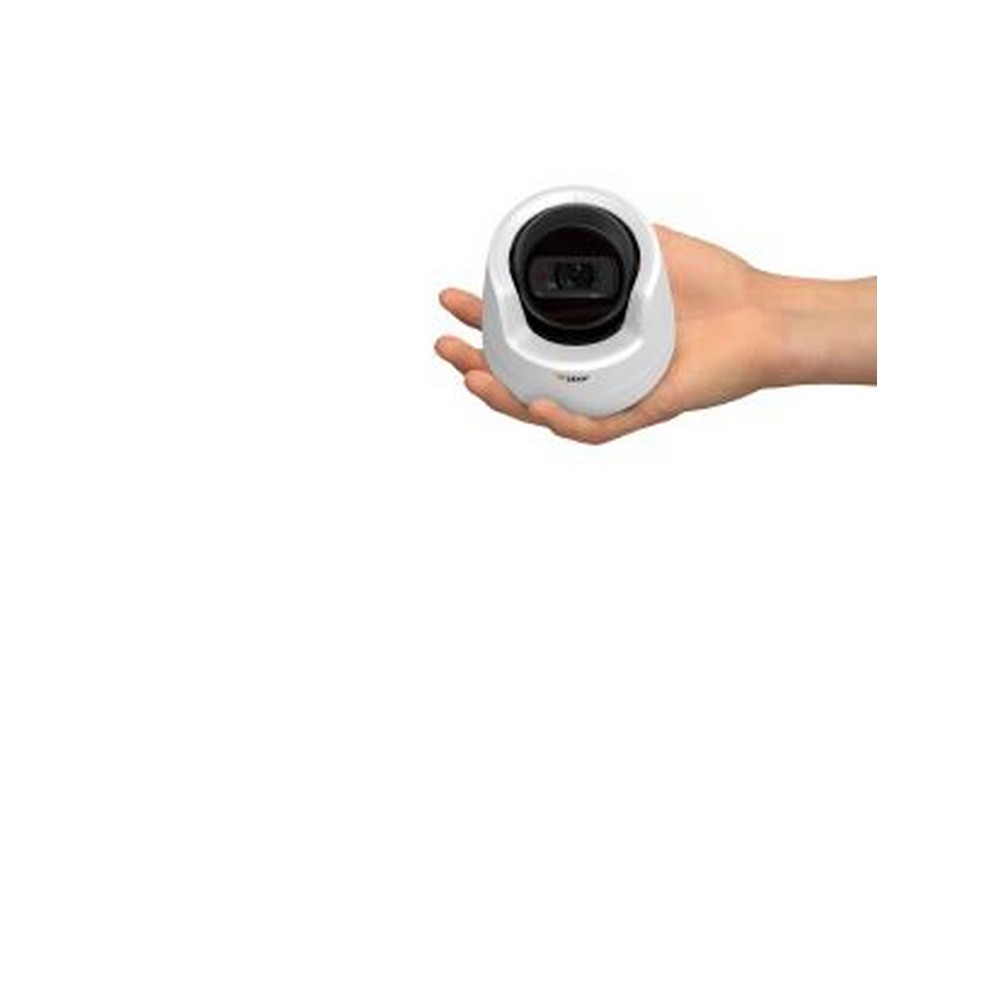

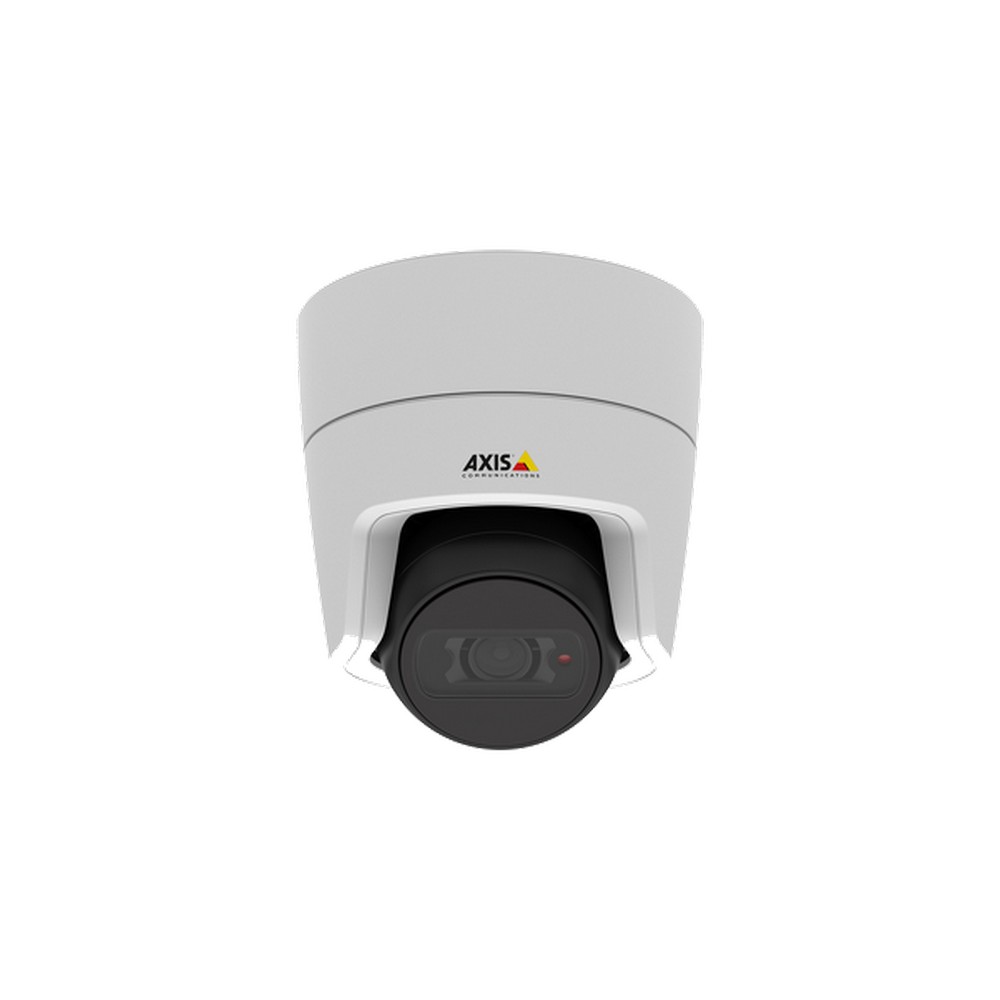

Day/night, compact mini dome in a vandal-resistant, outdoor-ready, flat-faced design. Built-in IR illumination and fixed lens. Multiple, individually configurable H.264 and Motion JPEG streams; max 4 MP resolution at 30 fps with WDR. Axis’ Zipstream technology for reduced bandwidth and storage needs. Memory card slot for optional local video storage. Video motion detection and active tampering alarm. Power over Ethernet. Midspan not included.

Key features & benefits

• Capable of delivering high quality 4MP resolution at 25 fps for detail packed video footage
• Integrated IR-cut filter provides true day/night functionality for round-the-clock surveillance
• Robust, vandal-resistant housing provides protection in exposed locations
• Long-life, built-in infrared LED provides up to 15m of night-vision
• Innovative flat-faced design reduces light reflections to improve images captured in low light
• Axis Corridor Format optimises the field of view in narrow scenes – capturing only what is essential
• Multi-view streaming allows 2 areas of interest to be streamed at full frame rate
• Free video management for up to 16 cameras using the Axis Companion application
• Enhanced security monitoring with a range of camera-based video motion detection and tampering alarms
• On-board recording to MicroSD card provides cost-effective, local storage that doubles as a data backup solution
• PoE allows the camera to receive power and network connectivity over a single cable, reducing costs and installation time
• Easy manual adjustment and quick set up of the lens using the handy 3-axis mount
• Axis Zipstream technology lowers bandwidth and storage by retaining important image details and removing unnecessary data

Typical applications

The Axis M3106-LVE mini-dome IP camera delivers high quality 4MP resolution images round the clock. It’s ideal for users that require 24-hour surveillance in exposed areas such as car parks, schools and community centres.
