AXIS M5013

Përshkrimi

• Discreet design with broad coverage

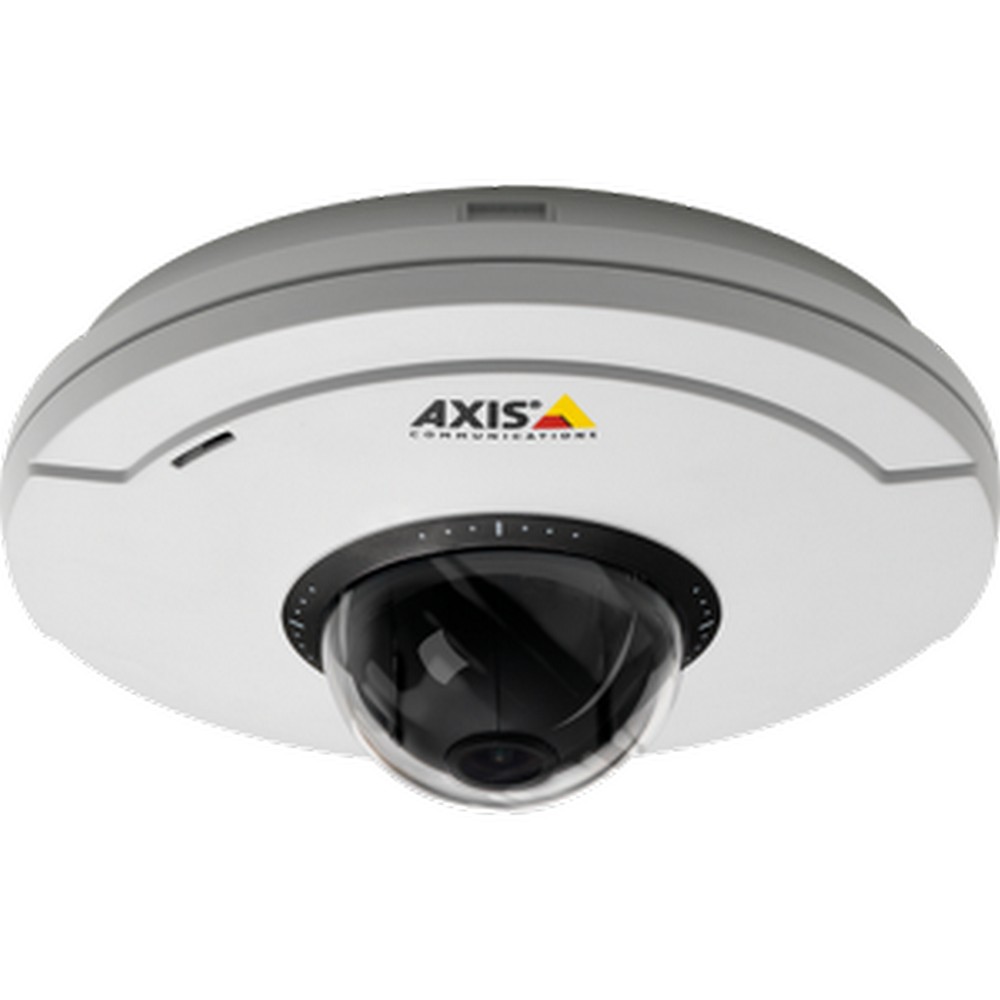

AXIS M5013 PTZ Dome Network Camera is a palm-sized pan/tilt/zoom camera, affordably priced for remote and discreet monitoring of indoor areas.

• Excellent image quality and multiple video streams

AXIS M5013 provides full frame rate video in SVGA 800×600 resolution. It can send multiple H.264 and Motion JPEG video streams simultaneously.

• Protective casing and easy installation on ceilings

With an IP51-rating, the camera is dustproof and protected from dripping water, enabling video to be taken even when a sprinkler system is activated. AXIS M5013 is designed for quick and easy installation. The camera is powered with Power over Ethernet (PoE) using a PoE switch or midspan, which eliminates the need for power cables and reduces installation cost.

• Audio support and intelligent capabilities

The built-in microphone enables users to listen in remotely and audio to be recorded. Audio detection allows unusual sounds or noise detected during off-hours to trigger alarm events. The microSD/SDHC card slot enables several days of recording on a microSDHC card.

Technical Specifications

Camera

• Image sensor: Progressive scan RGB CMOS 1/4”.
• Lens:

• Vertical field of view: 32°.
• Horizontal field of view: 45°.
• 6 mm, F1.8.

• Minimum illumination: 1.4 lux, F1.8.
• Shutter time: 1/25000 s to 1/6 s.
• Pan/Tilt/Zoom:

• 25 preset positions.
• Pan: ±180°, 100°/s.
• Tilt: 90°, 100°/s.
• Zoom: 3x digital zoom.

Video

• Video compression: H.264 (MPEG-4 Part 10/AVC) Motion JPEG.
• Resolution: 800×600 SVGA to 320×180.
• Frame rate: Up to 25/30 fps (50/60 Hz) in all resolutions.
• Video streaming:

• Multiple, individually configurable streams in H.264 and Motion JPEG.
• Controllable frame rate and bandwidth.
• VBR/MBR H.264.

Audio

• Audio streaming: One-way.
• Audio compression: AAC-LC 8/16 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz Configurable bit rate.
• Audio input: Built-in microphone.

Network

• Security: Password protection, IP address filtering, HTTPSa encryption, IEEE 802.1Xa network access control, Digest authentication, User access log, Centralized Certificate Management.
• Supported protocols: IPv4/v6, HTTP, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH.

General

• Casing: IP51-rated plastic casing, clear dome.
• Sustainability: PVC free.
• Memory: 256 MB RAM, 128 MB Flash.
• Power: Power over Ethernet 802.3af/802.3at Type 1 Class 3.
• Connectors: RJ45 10BASE-T/100BASE-TX PoE.
