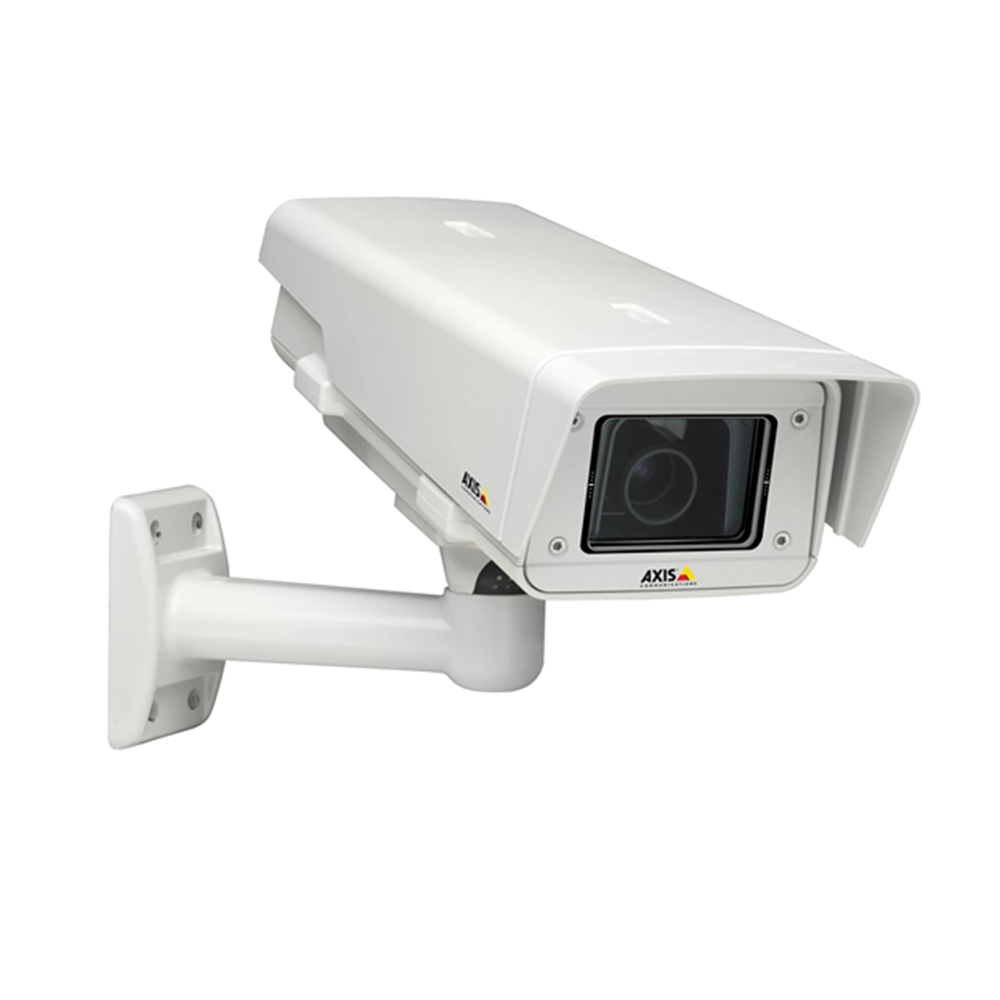

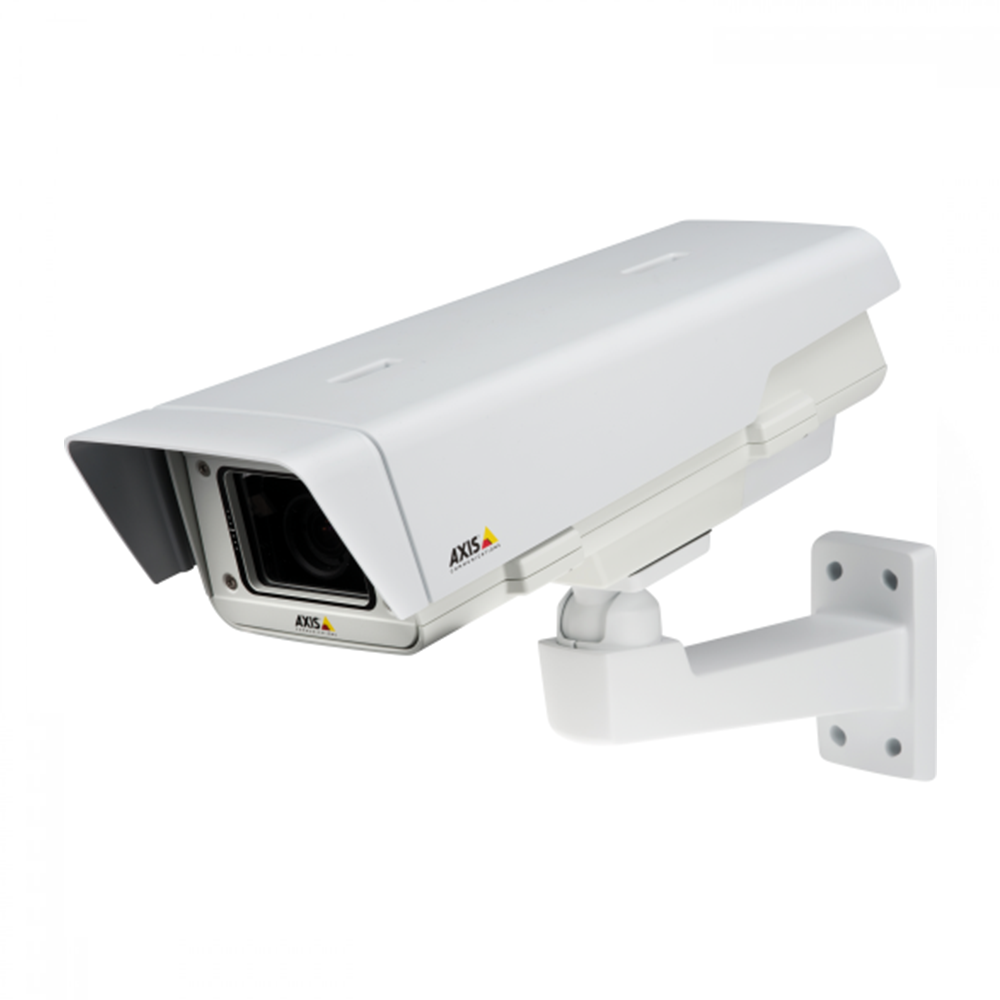

AXIS P1357-E

Përshkrimi

• Outdoor-ready, exceptional video surveillance with 5-megapixel fixed camera

AXIS P1357-E Network Camera presents a top-of-the-line, 5-megapixel outdoor-ready network camera with HDTV 1080p performance, precise iris control for optimal image clarity and H.264 compression.

• Advanced iris control

The camera’s revolutionary P-Iris enables automatic and precise control of the iris position to optimize depth of field and lens resolution for optimal image sharpness. DC-iris lenses are also supported for backward compatibility.

• Outdoor-ready surveillance

The IP66-rated AXIS P1357-E, which comes with a wall mount bracket, sunshield and Ethernet cable, is protected from dust, rain, snow and sun, and can operate in temperatures from -40 °C to 50°C (-40 °F to 122 °F).

• Simultaneous H.264 and Motion JPEG

To help minimize bandwidth and storage needs, the camera provides digital pan/tilt/zoom and multi-view streaming, which enables several cropped view areas to be streamed simultaneously.

• Easy installation

Support for Power over Ethernet* makes installation easy. The camera also features remote back focus for fine-tuning the focus from a computer.

Technical Specifications

Camera

• Image sensor: 1/3.2” progressive scan RGB CMOS.
• Lens:

• IR corrected, CS-mount lens, P-Iris.
• Varifocal 2.8–8 mm, F1.2.
• Horizontal field of view: 80°–32°.

• Day and night: Automatically removable infrared-cut filter.
• Minimum illumination:

• Color:2 lux, F1.2.
• B/W:04 lux, F1.2.

• Shutter time: 1/24000 s to 2 s.

Video

• Video compression: H.264 (MPEG-4 Part 10/AVC) Baseline and Main Profiles Motion JPEG.
• Resolutions: 2592×1944 (5 MP) to 160×90.
• Frame rate:

• Capture mode: 2 MP/1080p@25/30 fps (50/60 Hz).
• Capture mode: 3 MP@16/20 fps (50/60 Hz).
• Capture mode: 5 MP@12.5/12 fps (50/60 Hz).

Audio

• Audio streaming: Two-way, full duplex.
• Audio compression: AAC LC 8/16 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz Configurable bit rate.
• Audio input/output: External microphone input or line input, line output.

Network

• Security: Password protection, IP address filtering, HTTPSa encryption, IEEE 802.1Xa network access control, Digest authentication, User access log.
• Supported protocols IPv4/v6, HTTP, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP™, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH.
