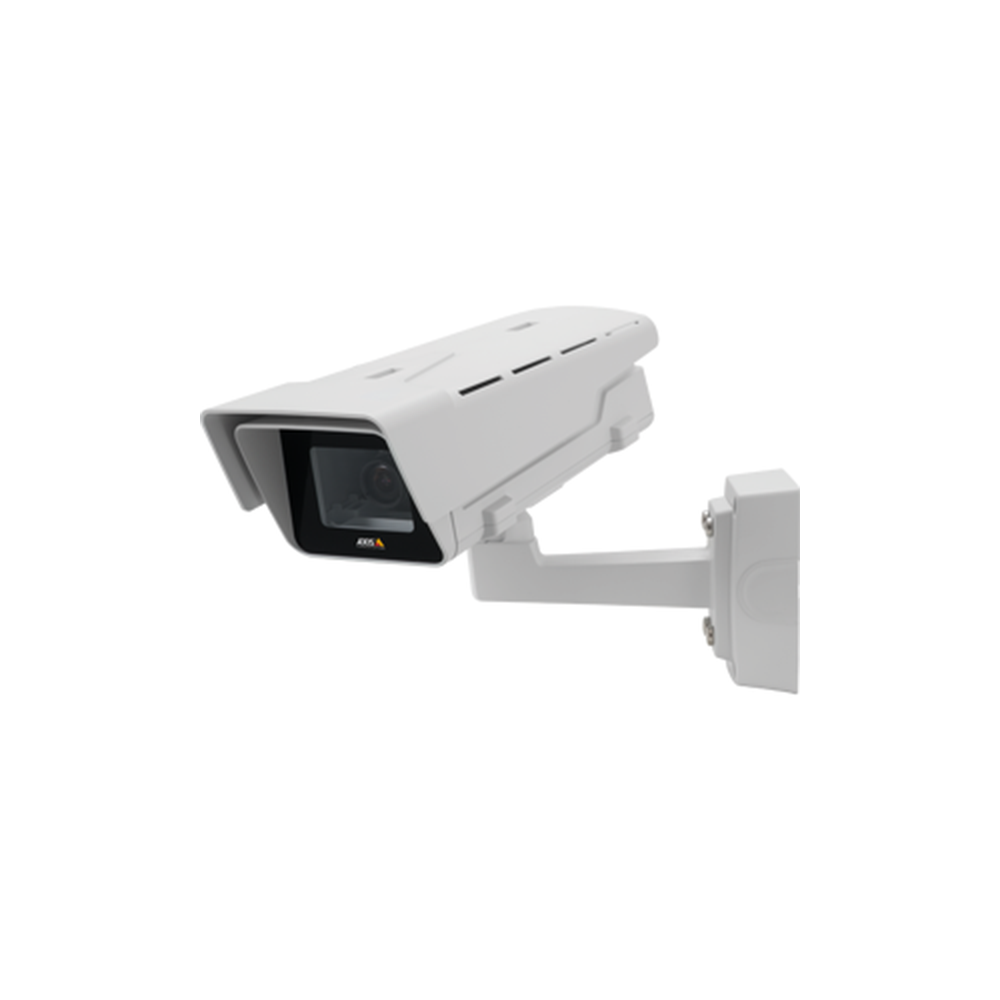

AXIS P1365-E Mk II

Përshkrimi

• A camera that’s rough and ready

AXIS P1365-E Mk II is ready for outdoor installation in tough environments – it can withstand temperatures as low as -40 °C and as high as 50 °C (-40 °F to 122 °F).

• Don’t be afraid of the dark

AXIS P1365-E Mk II provides images that are optimized for forensic purposes – even when they’re recorded in the dark. It offers outstanding light sensitivity and Axis Lightfinder technology for high-quality – color – images even in low-light or dark environments.

• Sharp images. Low bandwidth

AXIS P1365-E Mk II features Axis Zipstream technology, which analyses the video stream in real time to identify areas of interest.

Technical Specification

Camera

• Image sensor: 1/2.8” progressive scan RGB CMOS.
• Lens: IR corrected, CS-mount lens, P-Iris Varifocal 2.8–8 mm, F1.3 Horizontal field of view: 84°–39° Vertical field of view: 46°–21°.
• Day and night: Automatically removable infrared-cut filter.
• Minimum illumination:

• ​Color: 0.11 lux.
• B/W: 0.01 lux, at 50 IRE F1.3.
• HDTV: 1080p 50/60 fps: Color 0.22 lux.
• B/W: 0.02 lux, at 50 IRE F1.3.

Video

• Video compression: H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles Motion JPEG.
• Resolutions: HDTV 1080p 25/30 fps (WDR): 1920×1080 to 160×90 HDTV 1080p 50/60 fps (no WDR): 1920×1080 to 160×90.
• Frame rate: Up to 50/60 fps (50/60 Hz).
• Video streaming: Multiple, individually configurable streams in H.264 and Motion JPEG Axis Zipstream technology in H.264 Controllable frame rate and bandwidth VBR/MBR H.264.

Audio

• Audio streaming: Two-way, full duplex.
• Audio compression: AAC LC 8/16/32/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz Configurable bit rate.
• Audio input/output: External microphone input or line input, line output.

Network

• Security: Password protection, IP address filtering, HTTPSb encryption, IEEE 802.1Xb network access control, Digest authentication, User access log.
• Supported protocols: IPv4/v6, HTTP, HTTPSb , SSL/TLSb , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP™, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH.
