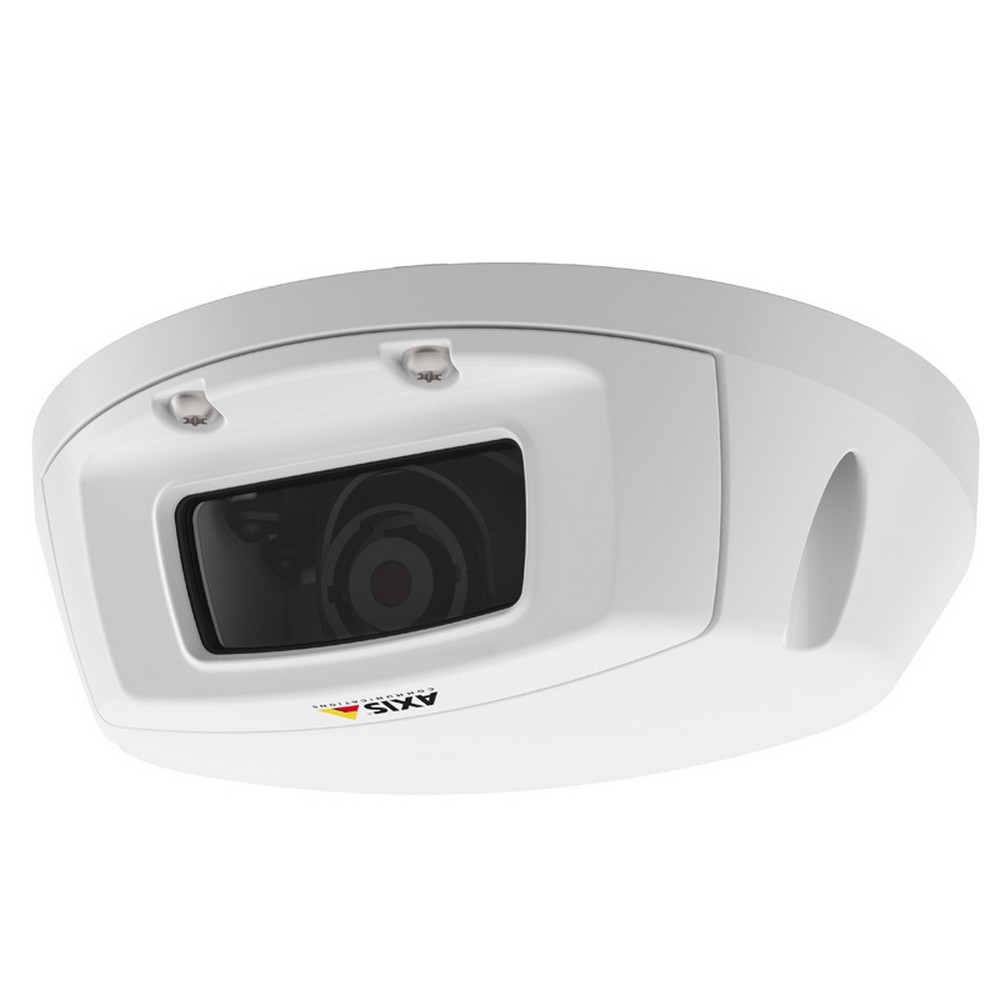

Name: AXIS P3905-RE Network Camera
Availability: OutOfStock

SKU: CP0000004461 SKU e prodhuesit: 0662-001 Kategori: Audio / Video, Cameras, Video Surveillance, Environment Monitoring, Others Brand: Axis Communication

Axis fixed dome cameras for onboard surveillance

High-performance outdoor-ready camera for onboard surveillance

Fixed dome mobile surveillance camera for outdoors use on buses, trams, trucks and emergency vehicles. IP69K and IK09 rated. Fixed 6 mm lens providing 55 horizontal FOV. Flat, discreet and tamper-resistant casing. Supports H.264 and Motion JPEG stream s; max 1080p resolution at 30/25 fps. Video motion detection and active tampering alarm. Male RJ45 network connector, Power over Ethernet. microSD card slot for Edge storage support. Includes lens tool and top cover tool.

Key features :

Ideal for use in transport applications such as buses, trains, trams and emergency vehicles
Low-profile dome form factor provides discreet CCTV monitoring
Outdoor-ready (IP69K) and tamper resistant (IK09) casing is robust and protects against damage from harsh weather and tampering/vandalism
Smooth surveillance footage in HD 1080p resolution at full frame rate (30 fps)
Able to cope with changes in lighting levels with wide dynamic range ~ dynamic contrast
Enhanced viewing and bandwidth usage when streaming vertically orientated scenes such as doorways with Corridor Format
Improved distinguishing of traffic light colours with Traffic Light mode
Advanced digital PTZ with preset positions, guard tour and control queue for secure monitoring
Users are alerted to possible tampering attempts and activity using active tampering alarm and video motion detection
Available with a male RJ-45 or rugged M12 network connector (please select choice from the drop down menu above)
H.264 and Motion JPEG are support for file compression
Handy recording to on-board MicroSD card (card not included) enables data to be stored temporarily until being transferred to a centralised device when convenient ~ ideal for mobile applications
Simple to install using lens tool and PoE

Typical applications

Rugged, compact and available with an M12 or male RJ-45 connector, the Axis P3905-RE delivers discreet and low-cost surveillance ideal for in or on emergency vehicles, trains, buses and trams. The P3905-RE is also suitable for use in general exposed outdoor applications such as train and bus stations, car parks and entrances.

Datasheet

Përshkrimi

Camera
Environment:	outdoor (IP69K) vandal-resistant (IK10)
Type:	fixed dome
Sensor:	progressive scan RGB CMOS 1/2.8
Lens:	M12 mount, fixed iris, megapixel resolution: 6mm, F1.6, 56° view, vertical angle of view: 33°, diagonal angle of view: 67°
Power:	Power over Ethernet IEEE 802.3af/802.3at type 1, class 2, max. 4.1 W
Memory:	256 MB RAM, 128 MB Flash
Video
Resolution:	1920×1080 to 160×90
Compression:	H.264 main and baseline profiles (MPEG-4 Part 10/AVC), Motion JPEG
Frame-rate:	30 fps in all resolutions
Bandwidth control:	multiple, individually configurable streams in H.264 and Motion JPEG controllable frame rate and bandwidth VBR/CBR H.264
Day/night:	automatically removable infrared cut-filter
Minimum illumination:	colour: 0.2 lux
Digital zoom/PTZ	digital PTZ, preset positions, guard tour, control queue
Video overlay:	text and image
Imaging:	compression, colour, brightness, sharpness, contrast, white balance, exposure control, exposure zones, backlight compensation, fine tuning of behaviour at low light, wide dynamic range – dynamic contrast, rotation: 0°, 90°, 180°, 270° including Corridor Format, mirroring of images, traffic light mode
Viewing, detection & recording
Privacy masking:	yes
Number of users:	not given
Alarm detection:	video motion detection, active tampering alarm, AXIS Camera Application Platform enabling installation of additional applications
Alarm action:	file upload: FTP, HTTP, email, notification: email, HTTP, TCP, video recording to edge storage, pre- and post-alarm video buffering, status LED activation
Pre-/post-alarm buffer:	yes
On-camera recording:	MicroSD/MicroSDHC/MicroSDXC slot supporting memory cards with up to 64 GB of storage. For best recording performance, use an SDHC or SDXC card with speed class 10, support for recording to dedicated network-attached storage (NAS)
Recording software supported:	Axis Camera Station
Connections
Power:	Power over Ethernet IEEE 802.3af/802.3at Type 1
Network:	RJ45: male RJ45 10BASE-T/100BASE-TX, M12: rugged, female, D-coded M12 connector with rotatable coupling nut, all connectors support Power over Ethernet
SD card slot:	MicroSD
Other
Dimensions:	150mm diameter x 124mm height
Weight:	0.29kg (net)
Casing:	aluminium and polycarbonate
Warranty:	3 years
Mounting methods:	wall, ceiling, in or on vehicle
Operating temperatures:	-30°C to 55°C
Power consumption:	max. 4.1W
Dynamic DNS:	yes
Protocols supported:	IPv4/v6, HTTP, HTTPSa, SSL/TLSa, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP”, SNMP, v1/v2c/v3(MIB-II), DNS,,DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH
QoS:	yes
Security:	password protection, IP address filtering, HTTPS encryption, digest authentication, user access log
ONVIF compliant:	yes, profile S

Më shumë informacion

Max. video resolution	1920x1080
Environment	Indoor
Day and night	Not given
Max. frames per second	25/30
Signal Process	IP
Lens Type	Fixed
Compression Type	MULTIPLE COMPRESSION TYPES
