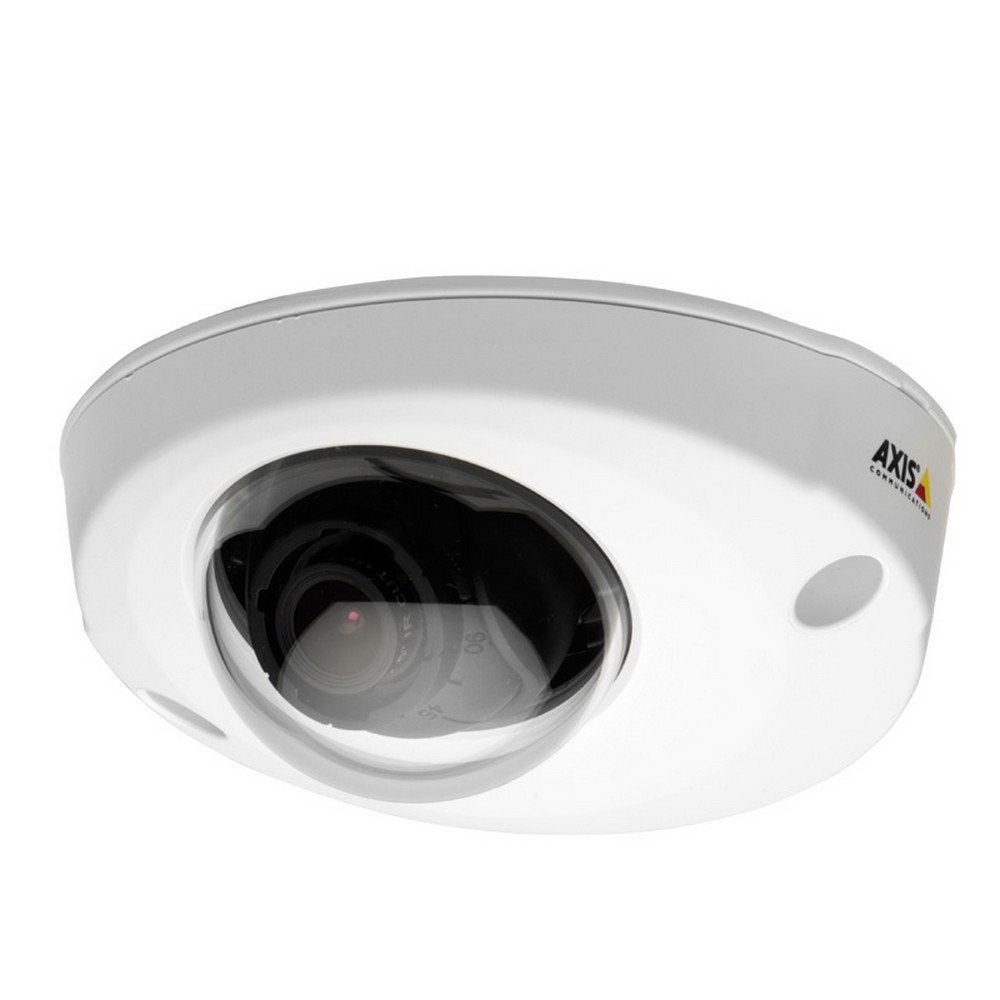

AXIS P3915-R Network Camera

Axis fixed dome cameras for onboard surveillance

High-performance camera with audio for onboard surveillance

Fixed dome mobile surveillance camera with rugged design. Fixed lens. Flat, discreet and tamper-resistant casing. Multiple, individually configurable H.264 and Motion JPEG streams; max 1080p resolution at 30/25 fps. Video motion detection and active tampering alarm. Male RJ-45 network connector, Power over Ethernet. Audio-in and I/O. microSD card slot for Edge storage support. Includes lens tool and top cover tool. Midspan not included.

Key features :

• HD 1080p video at full frame rate provides high quality footage ideal for general CCTV surveillance
• Compact IP67-rated dome is durable and provides discreet monitoring ideal for small spaces
• Audio-in capability enables a microphone to be connected (not included) to capture audio for enhanced video footage
• I/O capabilities enables external devices to be connected to the camera such as a PIR sensor, to perform actions on motion detection
• Can cope with challenging lighting conditions with wide dynamic range technology
• Axis Corridor Format provides vertically orientated video to maximise image quality and reduce bandwidth in applications monitoring areas such as hallways and corridors
• Traffic Light mode can distinguish different colour traffic lights, an ideal feature for use in transport applications and assisting with event analysis
• Tampering alarm enables the camera to alert the user if the camera has been spray painted or blocked in any way
• Audio recording, external event activation and user alert can all be triggered via video motion detection
• Dual codec provides two formats for compressing video frame size to reduce bandwidth and storage usage
• PoE provides a simple yet cost-effective power solution without electrical cabling
• Edge storage to MicroSD card (not included) is ideal for mobile applications such as transport as data can be stored locally instead of to a centralised PC or server
• Supplied lens tool directs and rotates the ball that holds the lens and image sensor to achieve the desired field of view and a levelled image
• Axis Companion software is supported, offering video management for up to 16 camera channels
• Mobile access to camera is supported for handy remote viewing

Typical applications

The Axis P3915-R provides high quality CCTV surveillance with features particularly useful for application in transport such as an M12 rugged connector, Traffic Light mode, PoE and MicroSD card recording. Typical examples of use in transport include coaches, emergency vehicles, trains and mini buses where audio recording is required. This discreet, IP67-rated camera is also suitable for general indoor CCTV surveillance in small spaces such as cash points, petrol stations, bus stops and entrances.
