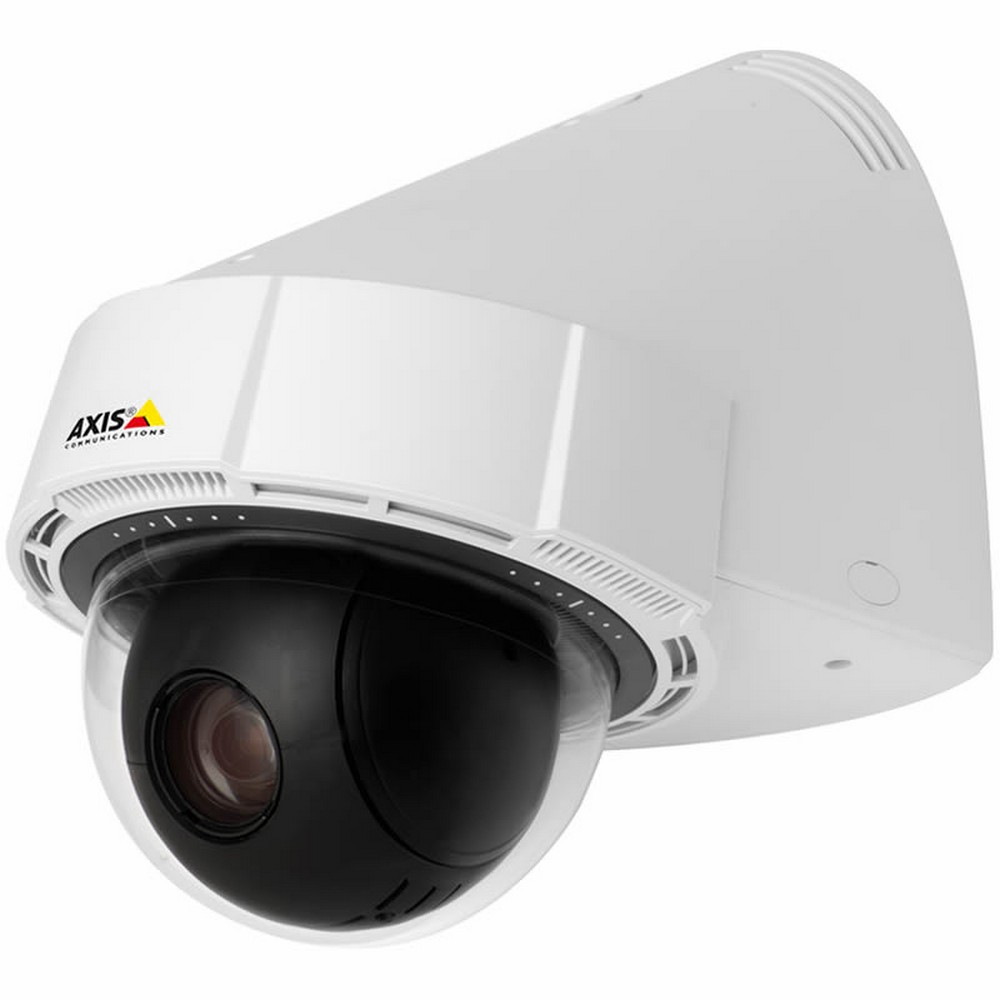

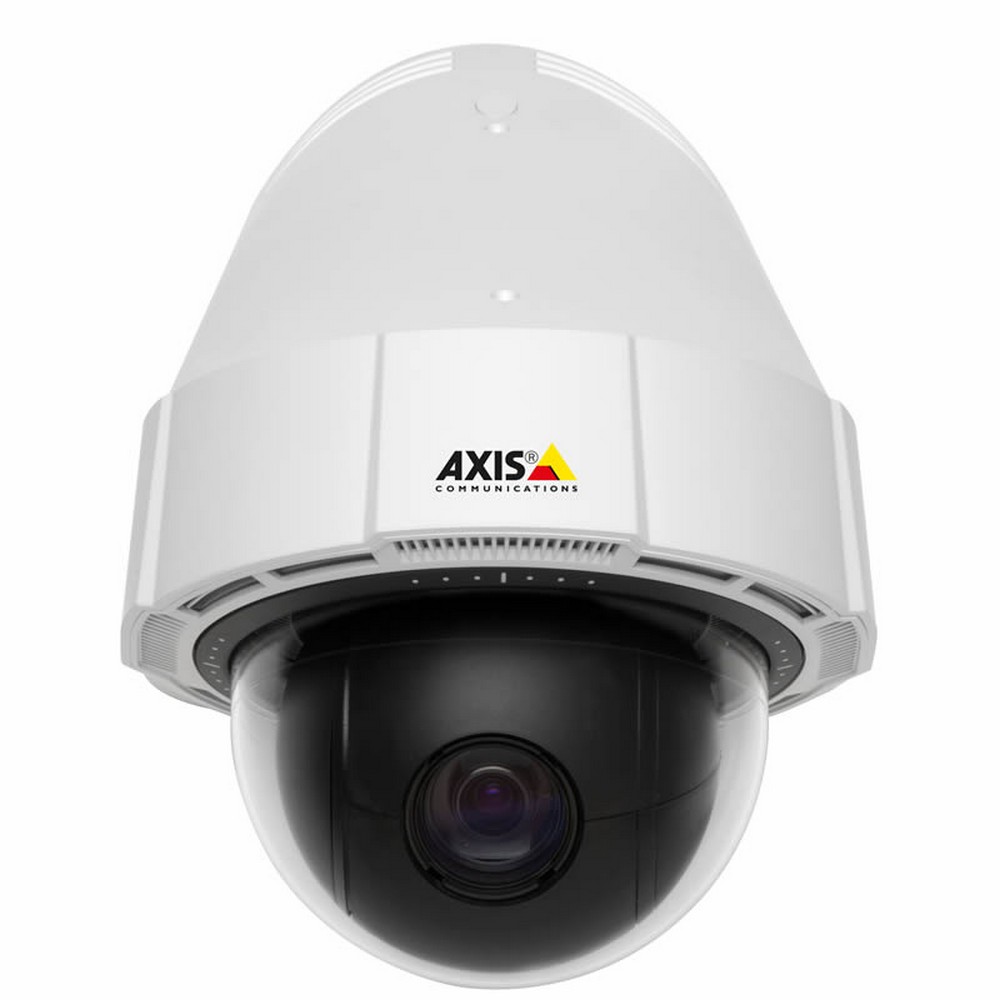

Name: AXIS P5415-E PTZ Network Camera
Availability: OutOfStock

SKU: CP0000004480 SKU e prodhuesit: 0546-001 Kategori: Audio / Video, Cameras, Video Surveillance, Environment Monitoring, Others Brand: Axis Communication

Axis pan/tilt/zoom cameras

Intelligent direct drive HDTV 1080p PTZ dome

Intelligent Direct Drive PTZ camera with HDTV 1080p, day/night and 18x zoom, designed for mounting on a wall or building. No extra bracket are needed, build in junction box. Audio In/Out, full size SD card, 24 V DC, 4 configurable I/Os and Ethernet connector with PoE. Repaintable sunshield covering the entire unit. Power supply not included.

Key features:

PTZ functionality with 270° panning and 18x optical zoom enables fast and precise monitoring of large areas with powerful zoom, providing detailed close up viewing
Built-in wall mount eliminates the need to buy a separate mount, reducing installation costs and the unit can be easily painted to match the colour of a building to blend in
Direct drive pan/tilt means there are no belts or gears therefore providing reliable, low maintenance surveillance
HD 1080p video at 30 fps provides high quality video footage
True day/night capability through an IR cut filter enables colour capture during daytime, automatically switching to mono capture at night time for 24/7 monitoring
Two-way audio support when a speaker and microphone are connected (not included) enables sound to be recorded to increase usefulness of video data
Video motion detection with Axis Advanced Gatekeeper can alert the user of activity detected via email for accurate surveillance
IP66-rated hidden junction box neatly conceals cables and makes installation and maintenance quicker and easier
Dual codec provides compression flexibility for different network requirements
SD card recording provides a constant storage solution for video data, remaining uninterrupted from potential network intermittence
PoE+ powers the camera and all its features through the Ethernet cable for reduced installation costs

Typical applications

The Axis P5415-E network PTZ camera is ideal for applications that require 24/7 high quality surveillance across a large area. Typical examples include university campuses, hospitals, city surveillance, schools and retail stores.

Datasheet

Përshkrimi

Key technical features of the Axis P5415-E

Camera
Environment:	outdoor
Type:	PTZ dome
Sensor:	1/2.9 progressive scan RGB CMOS
Lens:	f=4.7~84.6 mm, F1.6~2.8, autofocus, horizontal angle of view: 59°~4°
Optical zoom:	18x
Power:	Power over Ethernet Plus (PoE+) IEEE 802.3at type 2 class 4, 24 V DC max. 16 W
Memory:	256 MB RAM, 128 MB Flash
Video
Resolution:	1920×1080 (HDTV 1080p) to 240×135
Compression:	H.264 main and baseline profiles (MPEG-4 Part 10/AVC), Motion JPEG
Frame-rate:	H.264: up to 25/30 fps (50/60 Hz) in all resolutions, Motion JPEG: Up to 25/30 fps (50/60 Hz) in all resolutions
Bandwidth control:	multiple, individually configurable streams in H.264 and Motion JPEG, controllable frame rate and bandwidth VBR/CBR H.264
Day/night:	automatically removed infrared cut-filter
Minimum illumination:	colour: 0.5 lux at 30 IRE F1.6; B/W: 0.04 lux at 30 IRE F1.6
PTZ	Pan: ° 135°, 0.2°~400°/s, tilt: 0°~ 90°0.2°~350°/s;, 18x optical zoom and 12x digital zoom, total 216x zoom, 100 preset positions, limited guard tour, control queue, focus window, on-screen directional indicator
Video overlay:	text and image
Imaging:	compression, colour, brightness, sharpness, contrast, white balance, exposure control, exposure zones, backlight compensation, fine tuning of behaviour at low light
Viewing, detection & recording
Privacy masking:	20 individual 3D privacy masks
Number of users:	not given
External alarm inputs and outputs	4 configurable alarm inputs/outputs
Alarm detection:	video motion detection, audio detection, Advanced Gatekeeper, AXIS Camera Application Platform enabling installation of additional applications
Alarm action:	file upload: FTP, HTTP, network share and email, notification: email, HTTP and TCP, external output, PTZ preset, guard tour, play audio clip, video and audio recording to edge storage, day/night mode, pre- and post-alarm video buffering
Pre-/post-alarm buffer:	yes
On-camera recording:	SD/SDHC/SDXC slot supporting memory card up to 64 GB (card not included), support for recording to network share (network-attached storage or file server)
Recording software supported:	Axis Camera Station
Connections
Power:	Power over Ethernet Plus (PoE+) IEEE 802.3at type 2 class 4, 24 V DC max. 16 W
Network:	RJ45 for 10BASE-T/100BASE-TX PoE
Alarm I/O:	4 configurable alarm inputs/outputs
Audio:	external microphone or line input, and line output
Other:	terminal blocks for DC input
Other
Dimensions:	without sunshield: D224mm x H265mm x W169mm, with sunshield: D239mm x H279mm x W193mm
Weight:	3.5kg (net)
Warranty:	3 years
Mounting methods:	wall, corner (with additional adapter)
Operating temperatures:	-20°C to 50°C (-4°F to 122°F)
Power consumption:	Power over Ethernet Plus (PoE+) IEEE 802.3at Type 2 Class 4: max. 30 W, 24 V DC: max. 16 W
Dynamic DNS:	yes
Protocols supported:	IPv4/v6, HTTP, HTTPSb, SSL/TLSb, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS
QoS:	yes
Security:	password protection, IP address filtering, HTTPSb encryption, IEEE 802.1Xb, network access control, digest authentication, user access log
ONVIF compliant:	yes, profile S

Më shumë informacion

Day and night	Not given
Max. video resolution	1920x1080
Max. frames per second	0.04
Environment	Outdoor
Position Type	PAN-TILT ZOOM
PoE	Yes
Signal Process	IP
