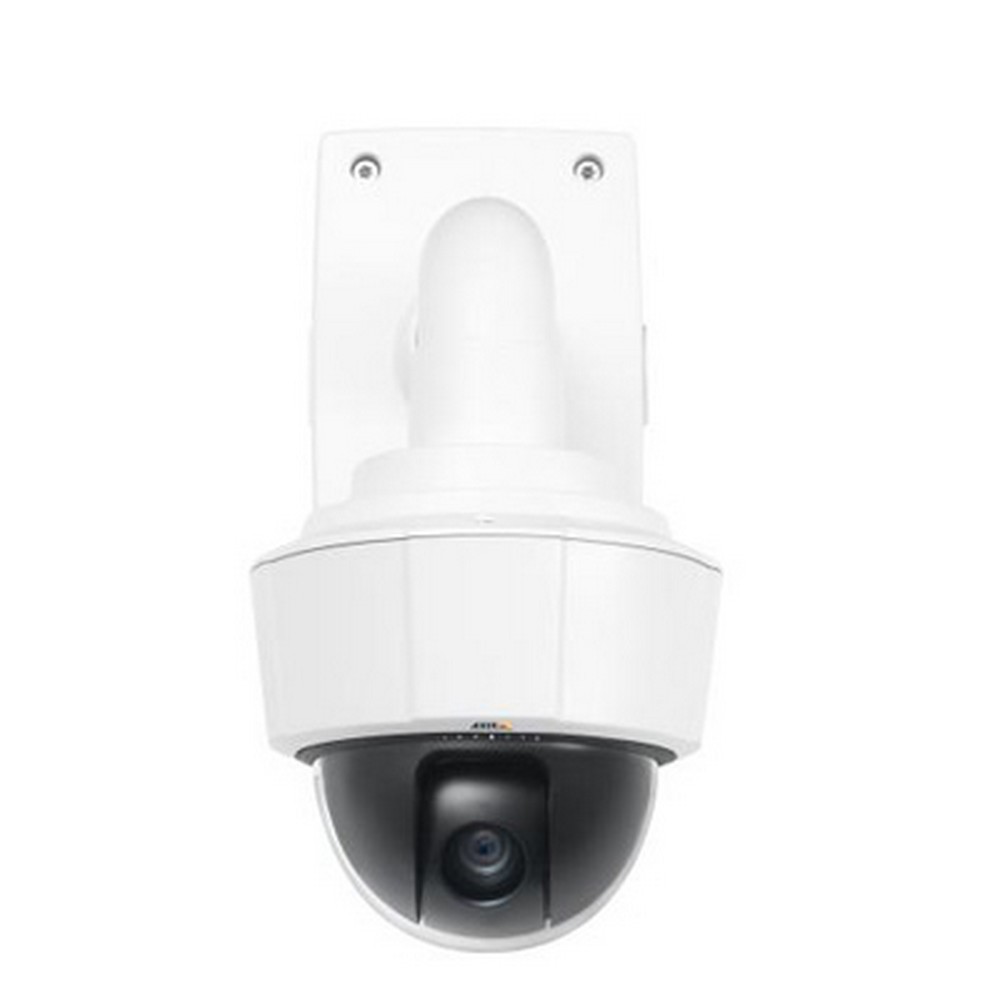

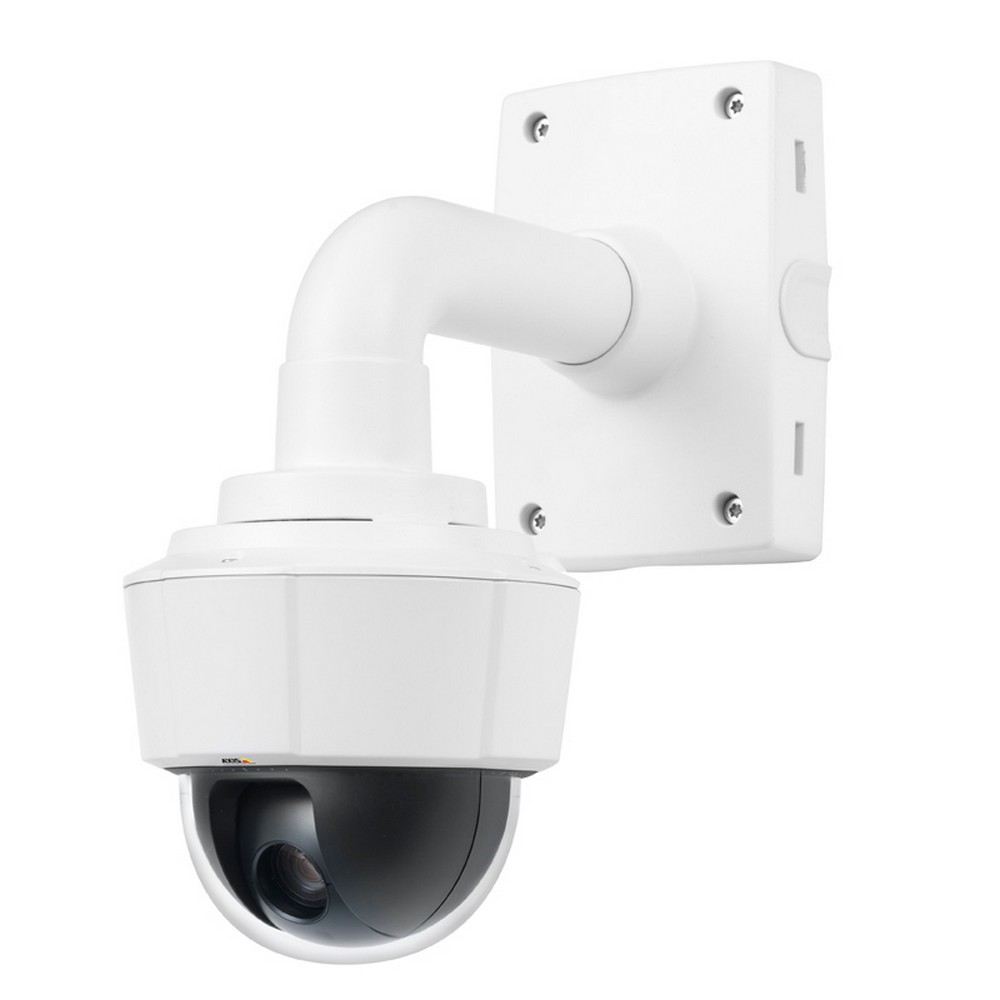

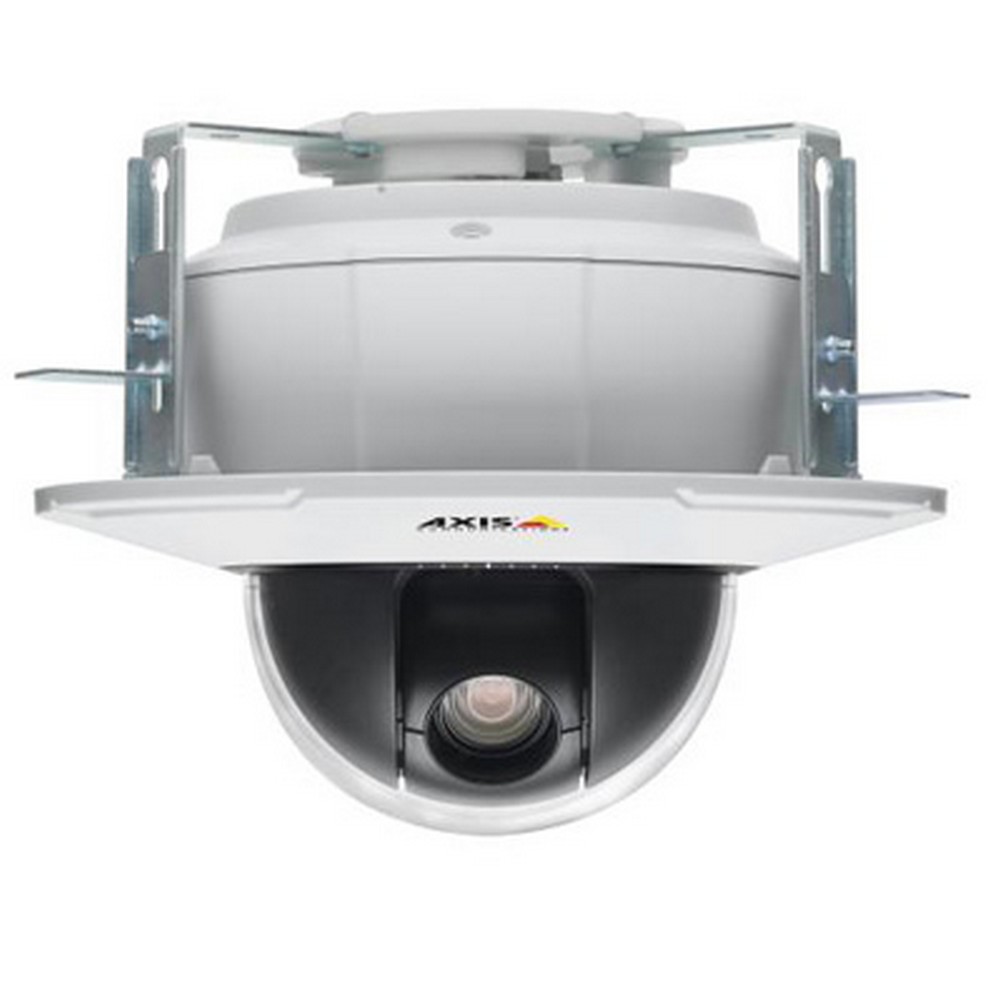

AXIS P5514 PTZ Network Camera

SKU: CP0000004478 SKU e prodhuesit: 0754-001 Kategori: , , , , Brand:

Axis pan/tilt/zoom cameras

Cost-effective, indoor PTZ camera

Compact PTZ camera, 360° pan with auto-flip, HDTV camera including 12x optical zoom, auto-iris, automatic day/night, and autofocus zoom lens. Up to 720P (1280×720) resolution at 50 fps frame rate. Simultaneous H.264 and Motion JPEG, standard IEEE 802.3af PoE (midspan not included), mounting kit for hard and drop ceiling, smoked and clear transparent cover. IP51 protection. 4 I/O connections for alarm/event handling. Two-way, full duplex audio requires multi connection cable (not included)

Key features :

  • Endless 360° Pan / 180° tilt and 12x optical zoom functionality enables surveillance of large areas with one camera as opposed to the implementation of multiple units
  • 10x digital zoom allows examination of the image to assist in evidence gathering
  • Capable of delivering HD 720p video footage at up to 60 fps
  • True day/night functionality with infrared cut-filter which switches the camera to an infrared-sensitive black and white image in low lighting conditions, ensuring 24/7 surveillance
  • Optional multi-connector enables support for two-way audio, audio detection and the use of external devices through I/O ports, providing a flexible CCTV solution
  • Intelligent video analytics and Axis’ Advanced Gatekeeper feature helps automate detection and alerts
  • Edge storage support enables the recording of data to MicroSD card (card not included) providing a back up solution if the network fails
  • H.264 and MJPEG compression options allow flexible system configuration via dual streaming
  • Power over Ethernet powers the camera and connects it to a network through a single cable, reducing installation costs and simplifying cabling

Typical applications

The P5514 network camera provides a cost-effective and flexible choice for indoor applications requiring reliable surveillance across wide areas. Typical examples include internal installations such as warehouses and large hotel reception areas.

Datasheet

Out of stock

Përshkrimi

Key technical features of the Axis P5514

Camera
Environment: indoor (IP51)
Type: pan/tilt/zoom
Sensor: 1/2.3” progressive scan CMOS
Lens: 3.8-42.9 mm, F1.4-2.1, horizontal angle of view: 59.2°-5.2°, autofocus, auto-iris
PTZ: e-flip, auto-flip, 100 pre-set positions, pan: 360° (with auto-flip), 1.8°-100°/s, tilt: 180°, 1.8°-100°/s, 12x optical zoom, 10x digital zoom, limited guard tour, control queue
Memory: 512 MB RAM, 256 MB Flash
Power: Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3, max. 12.95 W
Audio: two-way, audio detection, AAC-LC 8/16 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, configurable bit rate
Video
Resolution: 1280 × 720
Compression: H.264 (MPEG-4 Part 10/AVC) – baseline, main and high profiles Motion JPEG
Frame-rate up to 60 fps in all resolutions
Bandwidth control: multiple, individually configurable streams in H.264 and Motion JPEG, controllable frame rate and bandwidth, VBR/MBR H.264
Video overlay: text and image
Day/night: automatically removable infrared-cut filter
Minimum illumination: colour: 0.7 lux at 30 IRE F1.4, b/w: 0.08 lux at 30 IRE F1.4
Imaging: compression, brightness, sharpness, white balance, exposure control, backlight compensation (BLC), WDR – Dynamic Contrast, fine tuning of behaviour at low light, rotation, text and image overlay, image freeze on PTZ
Viewing, detection & recording
Privacy masking: not given
Number of users: not given
Alarm detection: audio detection (with multi-connector), video motion detection, Advanced Gatekeeper, AXIS Camera Application Platform enabling installation of additional applications
Alarm action: file upload: FTP, SFTP, HTTP, HTTPS, network share and email Notification: email, HTTP, HTTPS, and TCP External output activation, PTZ pre-set, guard tour, overlay text
Pre-/post-alarm buffer: yes
On-camera recording: built-in micro SD/SDHC/SDXC card slot, up to 64GB (free 64GB SD card with Axis camera)
Direct-to-NAS storage: yes
Connections
Network: RJ45 10BASE-T/100BASE-TX PoE
Audio: requires multi-connector cable (sold separately) for external microphone or line input, and line output
Alarm I/O: 4 configurable alarm inputs/outputs
Other
Dimensions: Ø 118.8 × 167.8 mm
Weight: 1.1kg
Warranty: 2 years
Mounting methods: ceiling, wall bracket available separately
Operating temperatures: 0°C to 50°C
Power consumption: max. 12.9W
Dynamic DNS: yes
Protocols supported: IPv4/v6, HTTP, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH
QoS: yes
Security: password protection, IP address filtering, HTTPSa encryption, IEEE 802.1Xa network access control, digest authentication, user access log
ONVIF compliant: yes



Më shumë informacion

Day and night mode Yes
Max. video resolution 1280x720
Max. frames per second 50/60
Environment Indoor
Signal Process IP
Position Type PAN-TILT ZOOM
PoE Yes
