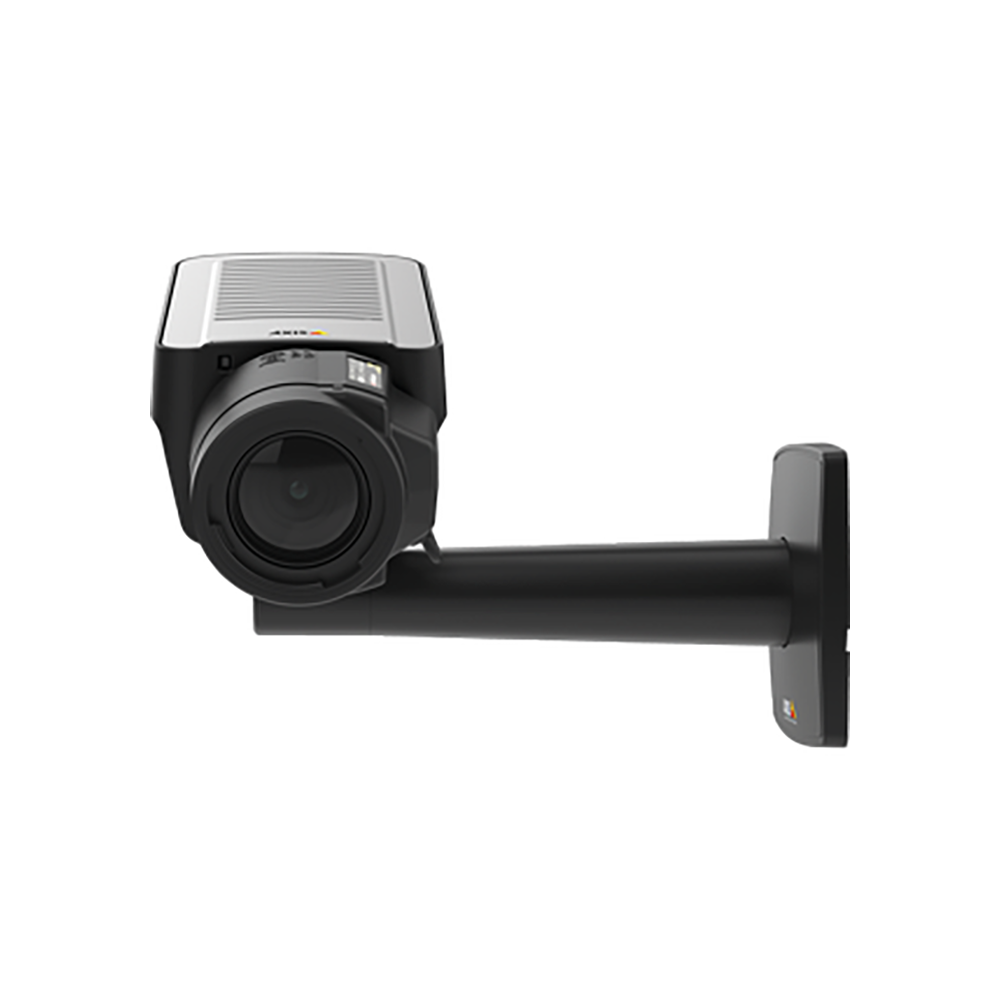

AXIS Q1615 Mk II

SKU: CP0000004266 SKU e prodhuesit: 0883-001 Kategori: , , , Brand:

Axis fixed box cameras

AXIS Q1615 Mk II is equipped with an i-CS lens, enabling the camera to adjust zoom and focus during remote setup, resulting in easy and quick installation. The camera delivers enhanced Lightfinder technology and WDR – Forensic Capture, optimizing video for forensic purposes in scenes with complex lightning. With up to 50/60 fps in HDTV 1080p and up to 100/120 fps in HDTV 720p, the camera captures all fast moving objects and people in sharp video. Furthermore, the camera features Scene Profiles with Forensic, Live and Traffic Overview profiles, allowing for automatic adjustment of image settings to meet specific surveillance needs.

AXIS Q1615 Mk II Network Camera is the world’s first network camera with an intelligent i-CS lens. AXIS Q1615 Mk II delivers superior image quality in footage of fast-moving objects in even the most demanding lighting conditions. And you can customize your surveillance solution to the requirements of specific scenes. AXIS Q1615 Mk II is perfect for indoor surveillance at, for example, airports and train stations or of production lines.

Key Features

  • Support for i-CS lens.
  • Scene Profiles with automatically adjusted image settings.
  • Lightfinder technology and WDR – Forensic Capture.
  • Electronic Image Stabilization.
  • Axis Zipstream technology.

Datasheet

Out of stock

Përshkrimi

  • Installation that’s as easy as 1, 2, 3.

New, intelligent i-CS lens technology in AXIS Q1615 Mk II facilitates fast and easy installation and adjustment. The camera and the lens exchange information.

  • One camera. Three scenes.

AXIS Q1615 Mk II offers three Scene Profiles to choose between:

  • Forensic profile for general surveillance and capturing details.
  • Live profile for more vivid colors and higher contrast.
  • Traffic Overview profile optimized for traffic surveillance.
  • Fast. Faster. Fastest.

With up to 100/120 fps in HDTV 720p and up to 50/60 fps in HDTV 1080p, AXIS Q1615 Mk II captures sharp images of fast-moving objects and people.

  • Excellent image quality. Low bandwidth.

AXIS Q1615 Mk II provides images that are optimized for forensic purposes regardless of lighting conditions. It has improved Lightfinder technology for high-quality images even when they’re recorded in darkness.

Technical Specifications

Camera

  • Image: sensor Progressive scan RGB CMOS 1/2.8″.
  • Lens: Varifocal, IR corrected, CS-mount 2.8–8.5 mm, F1.2 HDTV 720p: Horizontal field of view: 74°–26° Vertical field of view: 41°–15° HDTV 1080p: Horizontal field of view: 115°–39° Vertical field of view: 61°–22° i-CS lens.
  • Day and night: Automatically removable infrared-cut filter.

Video

  • Video compression: H.264 (MPEG-4 Part 10/AVC), Main, Baseline and High Profile, Motion JPEG.
  • Resolution: HDTV 720p 100/120 fps (no WDR): 1280×720 to 160×90 HDTV 1080p 25/30 fps (WDR): 1920×1080 to 160×90 HDTV 1080p 50/60 fps (no WDR): 1920×1080 to 160×90.
  • Frame rate: Up to 100/120 fps (50/60 Hz) in 720p (no WDR).

Audio

  • Audio streaming: Two-way.
  • Audio compression: AAC-LC 8/16/32/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Opus 8/16/48 kHz Configurable bit rate.
  • Audio input/output: Built-in microphone (can be disabled) External balanced/unbalanced microphone or line input, line output 24 bit AD/DA-conversion.

Network

  • Security: Password protection, IP address filtering, HTTPSa encryption, IEEE 802.1Xa network access control, Digest authentication, User access log, Centralized Certificate Management.
  • Supported protocols: IPv4/v6, HTTP, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH.



Më shumë informacion

Day and night Yes
Horizontal field of view 115deg - 39deg
Max. video resolution 1920x1080
Min. illumination Color 0.11
Min. illumination B/W 0.02
Included analytics Audio detection, Shock detection
Max. frames per second 100/120
Power PoE, DC
