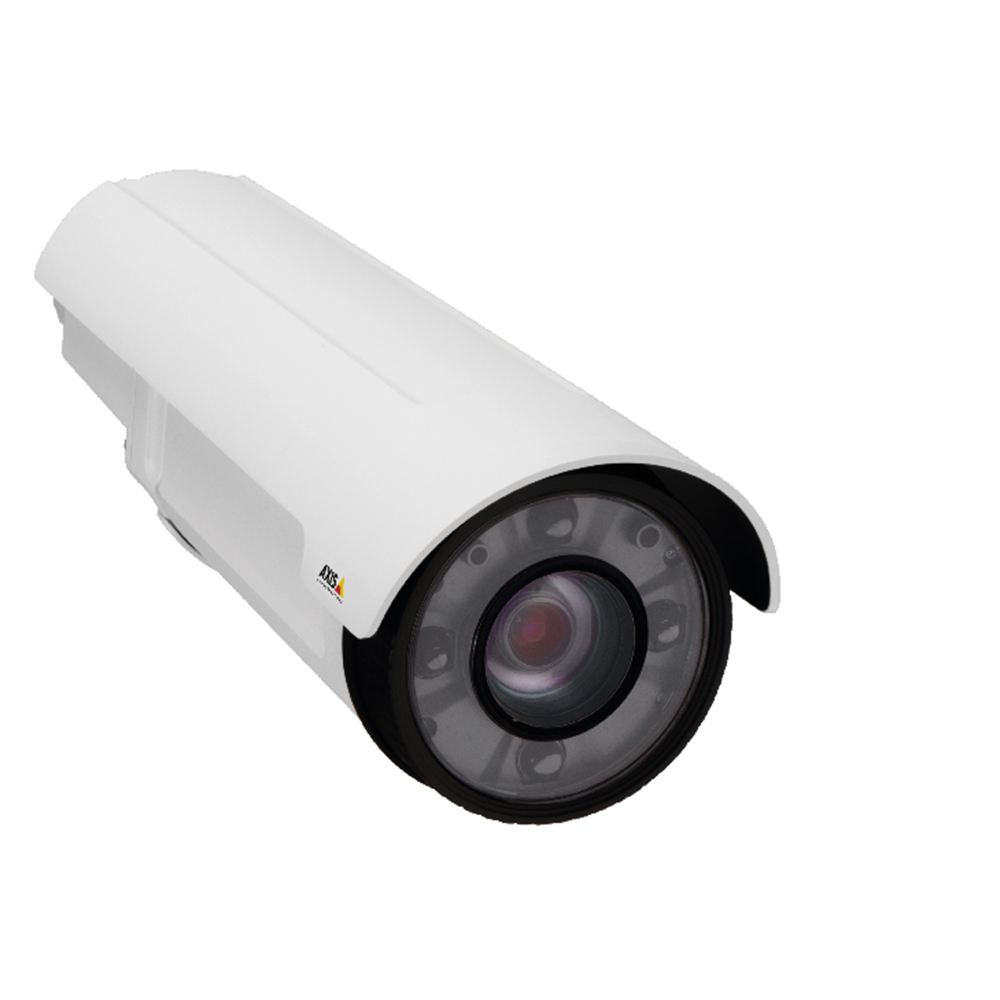

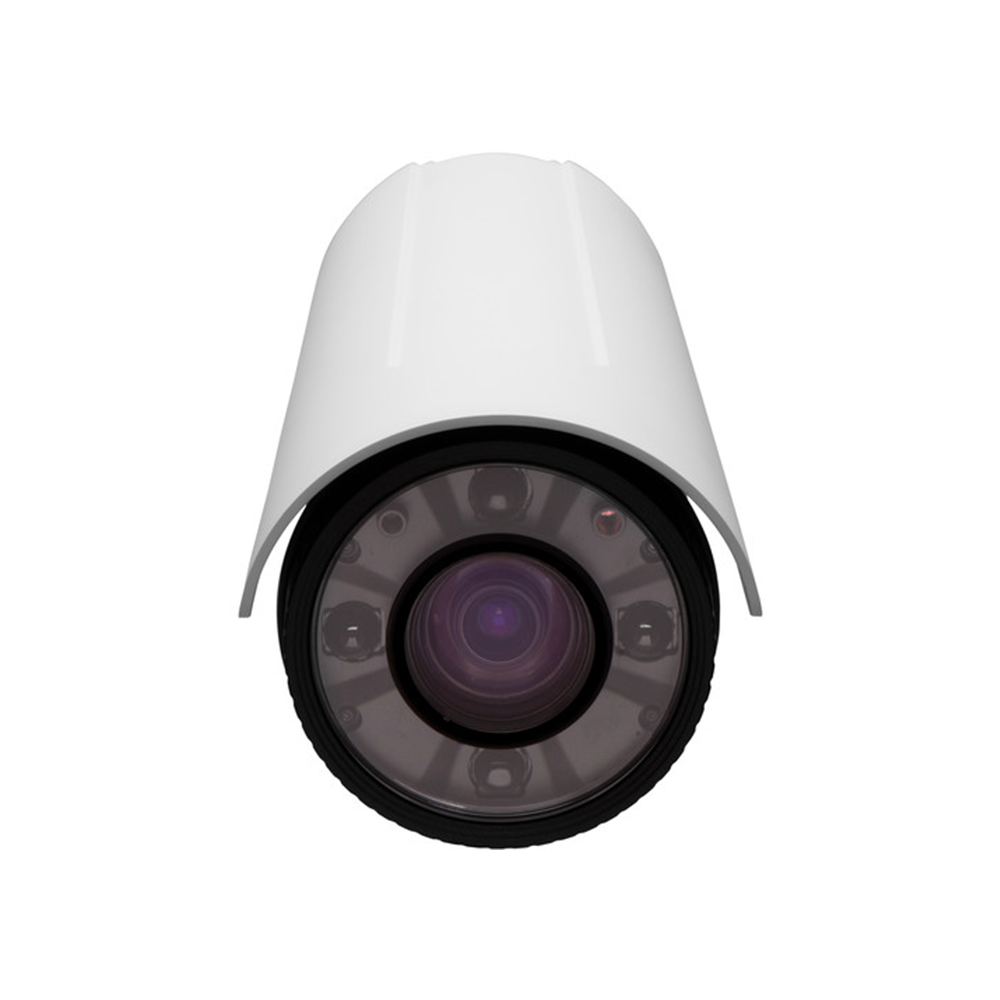

AXIS Q1765-LE PT Mount Network Camera

SKU: CP0000004277 SKU e prodhuesit: 0644-001 Kategori: , , Brand:

Axis fixed bullet cameras

Bullet-style, outdoor-ready camera with Optimized, 18x zoom and HDTV 1080p

Outdoor, IP66 and NEMA 4X-rated, 1080p HDTV camera with 18x optical zoom, auto focus and day/night mode. Integrated IR LED illumination. Multiple, individually configurable H.264 and Motion JPEG streams; max HDTV 1080p resolution at 25/30 fps. WDR- dynamic contrast. Video motion detection and active tampering alarm.

Serial port supporting RS422/485 communication for connection to a pan-tilt motor. MicroSD/MicroSDHC memory card slot for optional local video storage. Operation in -40°C to +50°C. Powered by PoE (IEEE 802-3af), 8-28 V DC or 20-24 V AC. Includes a removable sunshield. Power supply, midspan or pan-tilt motor not included.
Applications:

For Installation On Buildings, For Monitoring Entrances And Exits, Parking Lots, Toll Booths, Service Stations And For General City Surveillance Purposes

Key features:

  • 18x optical zoom and autofocus
  • OptimizedIR
  • HDTV 1080p and H.264
  • Ready for outdoor use
  • Axis’ unique Corridor Format
  • Slim, bullet-style design
  • Power over Ethernet (IEEE 802.3af), eliminating the need for power cables and reducing installation costs
  • Arctic Temperature Control ensures camera start-up, even at -40 °C (-40°F).
  • Advanced security and network management features such as HTTPS encryption with preserved performance, IPv6 and Quality of Service

Datasheet

Out of stock

Përshkrimi

Camera



Image Sensor





1/2.9″ progressive-scan CMOS

Lens 4.7-84.6mm varifocal
Aperture f/1.6 to 2.8
Focus Autofocus
Iris P-Iris
Day & Night Day Mode: Automatically removable infrared-cut filter
Night Mode: Infrared-pass filter 720 mm in night mode
Minimum Illumination Color: 0.5 lux at 30 IRE, f/1.6
B&W: 0.04 lux at 30 IRE, f/1.6
0 lux with IR illumination on
IR Illumination Power-efficient long-life 850 nm IR LEDs
Adjustable angle of illumination and intensity
IR Range Wide FOV: 50′ / 15 m
Full Tele View: 130′ / 40 m
Shutter Time 1/28000 to 2 seconds
Video
Compression H.264 Main and Baseline profiles (MPEG-4 Part 10/AVC), MJPEG
Resolutions 1920 x 1080 to 160 x 90
Frame Rate Up to 25/30 (50/60 Hz) in all resolutions
Streaming Multiple, individually configurable streams in H.264 and MJPEG
Controllable frame rate and bandwidth
VBR/CBR H.264
Image Settings Manual shutter time, Compression, Color, Brightness, Sharpness, White balance, Exposure control, Exposure zones, Backlight compensation, Fine tuning of behavior at low light, Rotation, Text and image overlay, 3D privacy mask, Day/night shift level
Wide Dynamic Range – Dynamic Contrast
PTZ 18x optical zoom and 12x digital zoom, Preset positions
Network
Security Password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, Digest authentication, User access log
Supported Protocols IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH

Më shumë informacion

Lens Type VARI-FOCAL
Form Factor BULLET
Environment OUTDOOR
PoE Yes
Max. video resolution 1920x1080
Zoom (Optical/Digital) 18x/12x
Max. frames per second 25/30
Day and night mode Yes
Compression Type H.264
