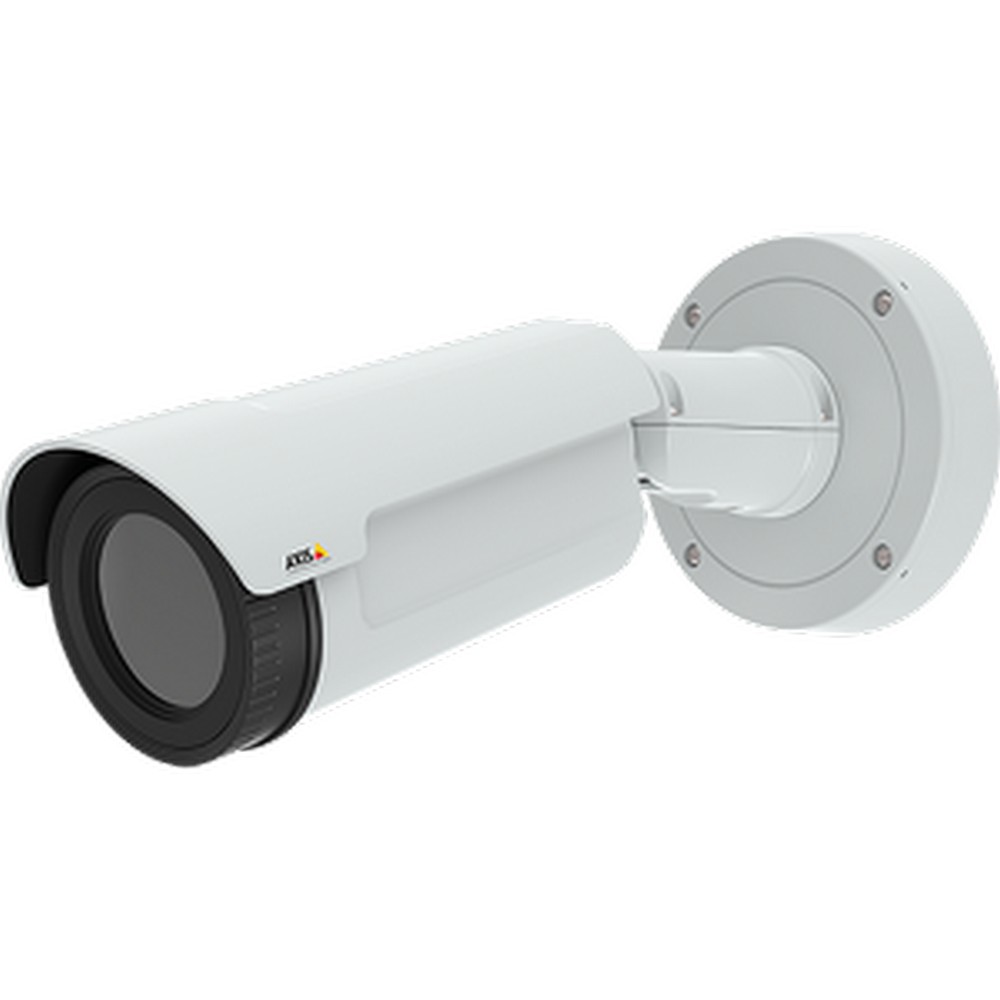

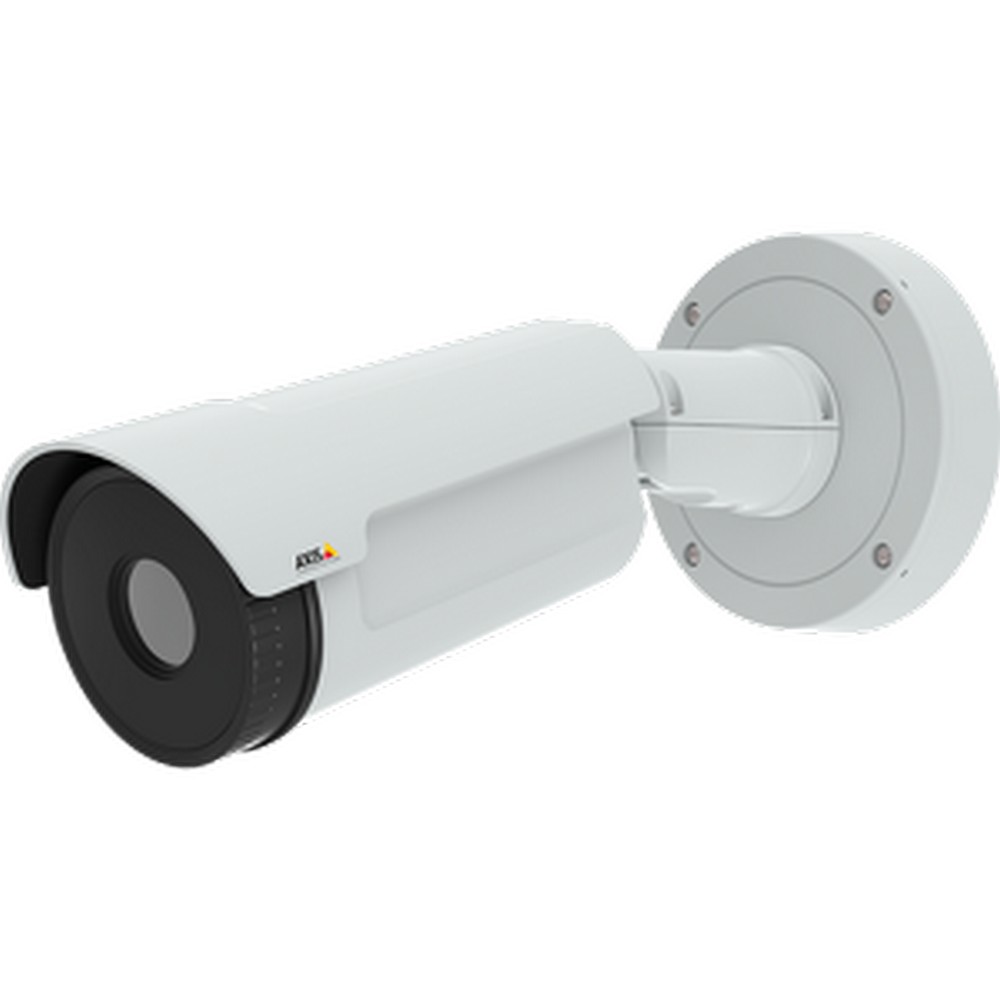

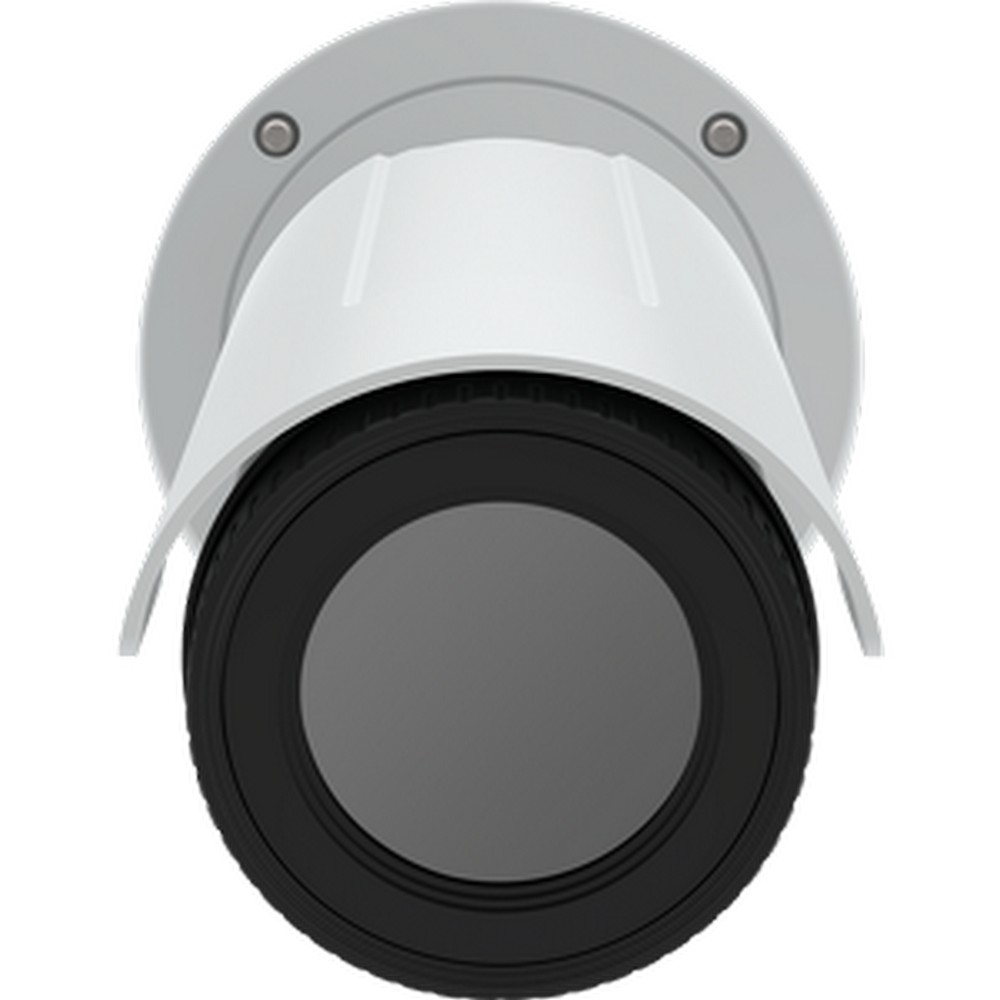

AXIS Q1942-E

Përshkrimi

• A video analytics powerhouse

AXIS Q1942-E’s powerful processor lets you add the strength of the market’s widest selection of video analytics solutions to your surveillance solution.

• Far + wide + sharp = accurate

AXIS Q1942-E features VGA 640×480 thermal resolution for wide-area coverage and a long range: in other words, a single camera captures events taking place in a large area and at great distance.

• Sharp images.

Thermal cameras are a powerful tool in combination with video analytics to detect intruders or other unwanted behavior in the area of interest. In order to have a reliable and efficient surveillance system, the primary object needs to be visible.

Technical Specifications

Models

AXIS Q1942-E 10 mm/19 mm/35 mm or 60 mm.

Camera

• Image sensor: Uncooled Micro bolometer 640×480, pixel size: 17 µm Spectral range: 8-14 μm.
• Lens:

• Horizontal field of view: 10°, F1.25 Near focus distance: 91 m (300 ft).
• Horizontal field of view: 17°, F1.20 Near focus distance: 33 m (108 ft) 60 mm.
• Horizontal field of view: 31°, F1.23 Near focus distance: 9.2 m (30 ft) 35 mm.
• Horizontal field of view: 63°, F1.24 Near focus distance: 2.8 m (9.2 ft) 19 mm.
• Athermalized 10 mm

• Sensitivity: NETD < 50 mK.

Video

• Video compression: H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles Motion JPEG.
• Resolution: Sensor is 640×480. Image can be scaled up to 800×600 (SVGA).
• Frame rate: Up to 8.3 fps and 30 fps.
• Video streaming: At least three H.264 and Motion JPEG streams, simultaneous and individually configured in max. resolution in full frame rate Axis Zipstream technology in H.264 Controllable frame rate and bandwidth VBR/MBR H.264.

Audio

• Audio streaming Two-way, full duplex.
• Audio compression AAC-LC 8/16 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz Configurable bit rate.
• Audio input/output External microphone input or line input, Line output.

Network

• Security: Password protection, IP address filtering, HTTPSa encryption, IEEE 802.1Xa network access control, Digest authentication, User access log, Centralized Certificate Management.
• Supported protocols: IPv4/v6, HTTP, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH.

General

• Casing: IP66-, IP67- and NEMA 4X-rated Metal casing (aluminum) with integrated dehumidifying membrane and a germanium window Color: White NCS S 1002-B.
• Sustainability: PVC free.
• Memory: 512 MB RAM, 256 MB Flash.
• Power: Power over Ethernet IEEE 802.3af/802.3at Type 1 Class 3 Typical 4.8 W, max 11.8 W 8–28 V DC, typical 6.6 W, max 13 W 20–24 V AC (50/60 Hz), typical 11 VA, max 19 VA Power supply not included.
• Connectors: RJ45 10BASE-T/100BASE-TX PoE I/O connector for DC or AC input, two configurable inputs/outputs and mic in/line in, line out. (AXIS Multicable A I/O Audio not included) AC/DC input.
