AXIS Q3709-PVE

Përshkrimi

• Multiple sensors, 180° overview

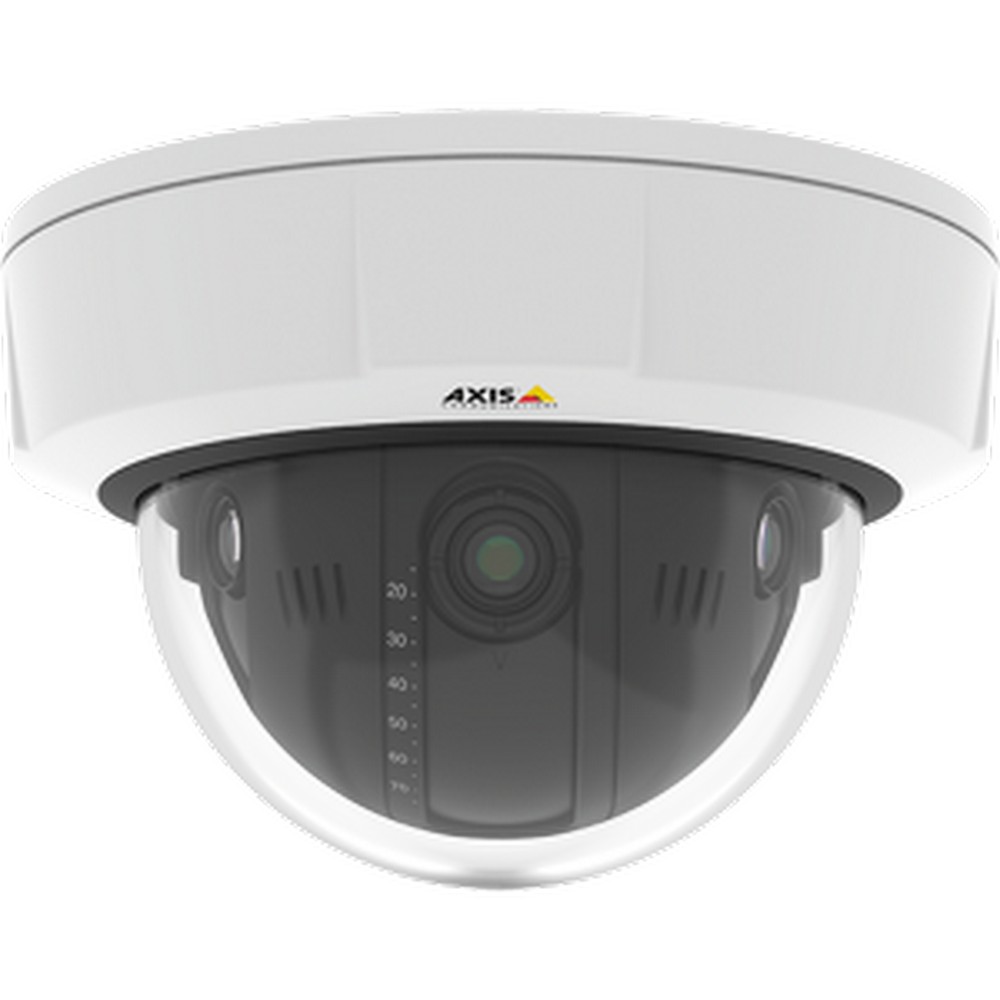

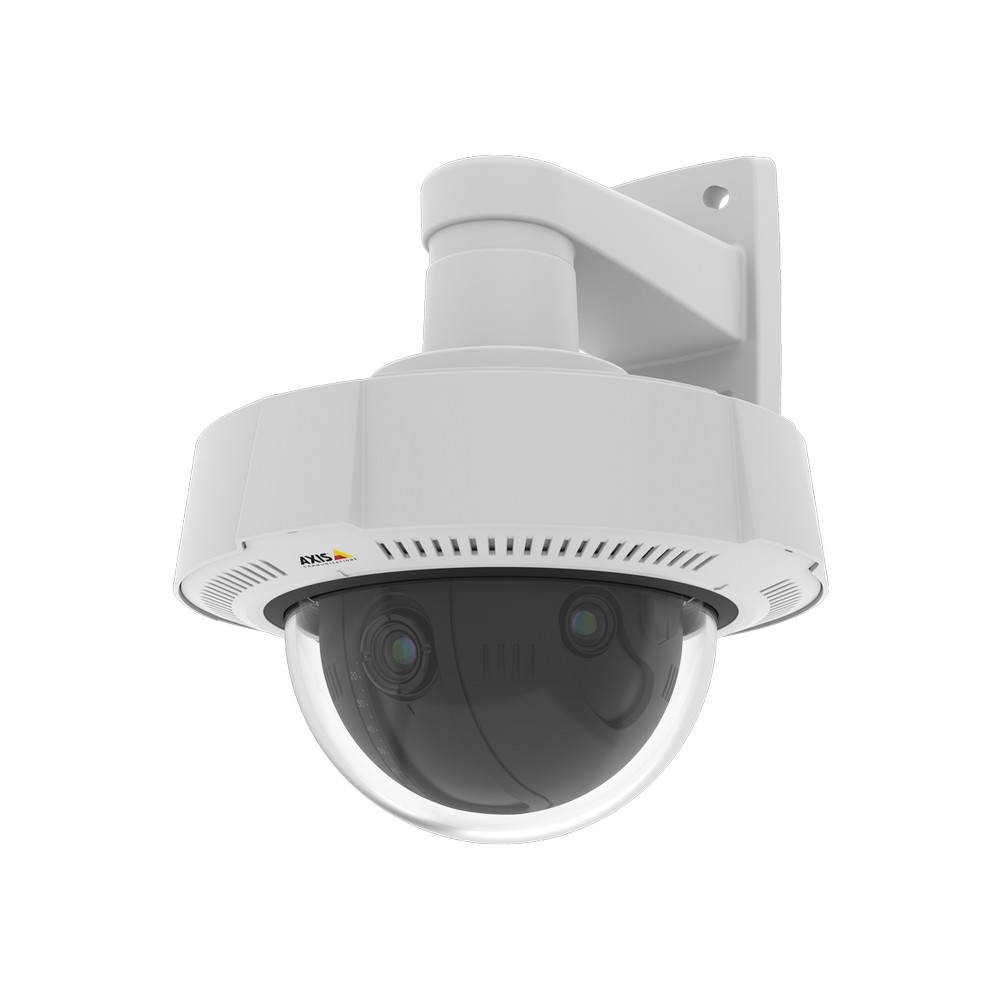

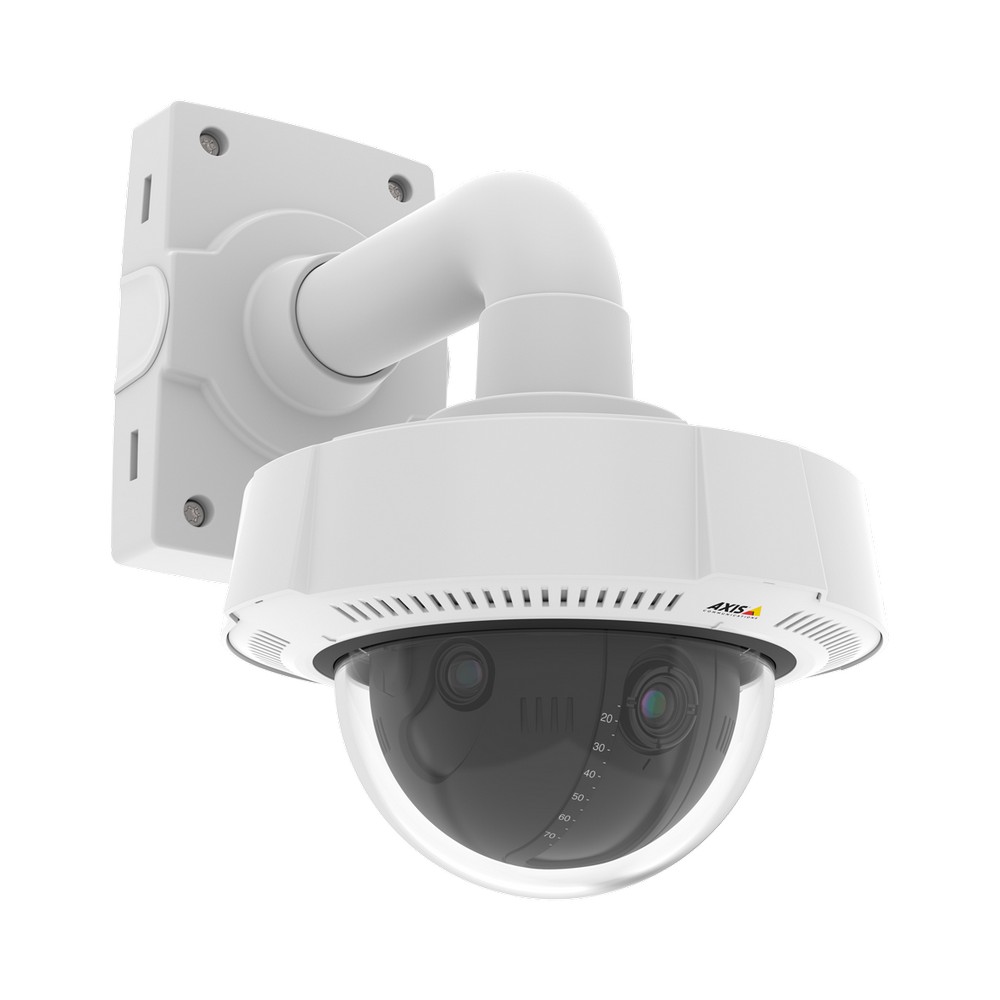

AXIS Q3709-PVE has three sensors that together provide a detailed 180° overview over a large area, providing situational awareness needed in, i.e. city surveillance applications.

• Efficient one-camera installation

Installation is easy, reliable and cost-efficient. No focusing is required since the lenses are factory-focused. The camera comes in a stylish and discreet design with easily repaintable and removable weather shield that protects against rain, snow and sunlight and allows for easy blending in with the environment.

• Unparalleled performance

The camera provides video with unparalleled streaming performance, smoothly capturing movement in high detail at 30 frames per second in 3x 4K Ultra HD, or 20 frame per second in 3x 11 megapixel.

• Outdoor-ready

The camera is outdoor-ready with protection against the ingress of dust and high pressure water jets from any direction (IP66 rating). In addition, it offers protection against windblown dust, salt spray, rain, hose-directed water, and damage from external ice formation (NEMA 4X rating).

Technical Specifications

Camera

• Image sensor: 3 x 1/2.3” progressive scan CMOS.
• Lens: 3 x lenses, fixed focus, 5.0 mm, F2.8 Combined horizontal angle of view: 180°.
• Day and night: Automatically removable infrared-cut filter.
• Minimum illumination Color: 2 lux, F2.8 B/W: 0.4 lux, F2.8.
• Shutter time: 1/23250 s to 2/5 s.
• Camera angle adjustment: Pan +/- 180° Tilt 18°–75°.

Video

• Video compression: H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles Motion JPEG.
• Resolutions: 3 x (3840×2880 to 320×240).
• Frame rate:

• 3 x 5 MP (4:3): Up to 16/20 fps with power line frequency 50/60 Hz.
• 3 x 5 MP (16:9): Up to 25/30 fps with power line frequency 50/60 Hz.
• 3 x 11 MP: Up to 16/20 fps with power line frequency 50/60 Hz.
• 3 x 4K Ultra HD: Up to 25/30 fps with power line frequency 50/60 Hz.

• Video streaming:

• Multiple, individually configurable streams in H.264 and Motion JPEG.
• Controllable frame rate and bandwidth VBR/CBR H.264.

Network

• Security: Password protection, IP address filtering, HTTPSa encryption, IEEE 802.1Xa network access control, Digest authentication, User access log, Centralized Certificate Management, Cross-Origin Resource Sharing.
• Supported protocols: IPv4/v6, HTTP, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH.

General

• Casing: IP66- and NEMA 4X-rated, IK10 impact-resistant aluminum casing with transparent, polycarbonate cover and dehumidifying membrane Encapsulated electronics Captive screws (resistorx 30) Color: White NCS S1002-B For repainting instructions and impact on warranty contact your Axis partner.
• Memory:3 GB RAM, 768 MB Flash.
• Power: Power over Ethernet IEEE 802.3at Type 2 Class 4, max. 23.1 W, typical 16.7 W.
• Connectors: RJ45 10BASE-T/100BASE-TX/1000BASE-T.
• Edge storage: Support for recording to dedicated network-attached storage (NAS).
• Operating conditions: -40 °C to 55 °C (-40 °F to 131 °F) Arctic Temperature Control: Start-up as low as -40 °C (-40 °F) Humidity 10–100% RH (condensing).
