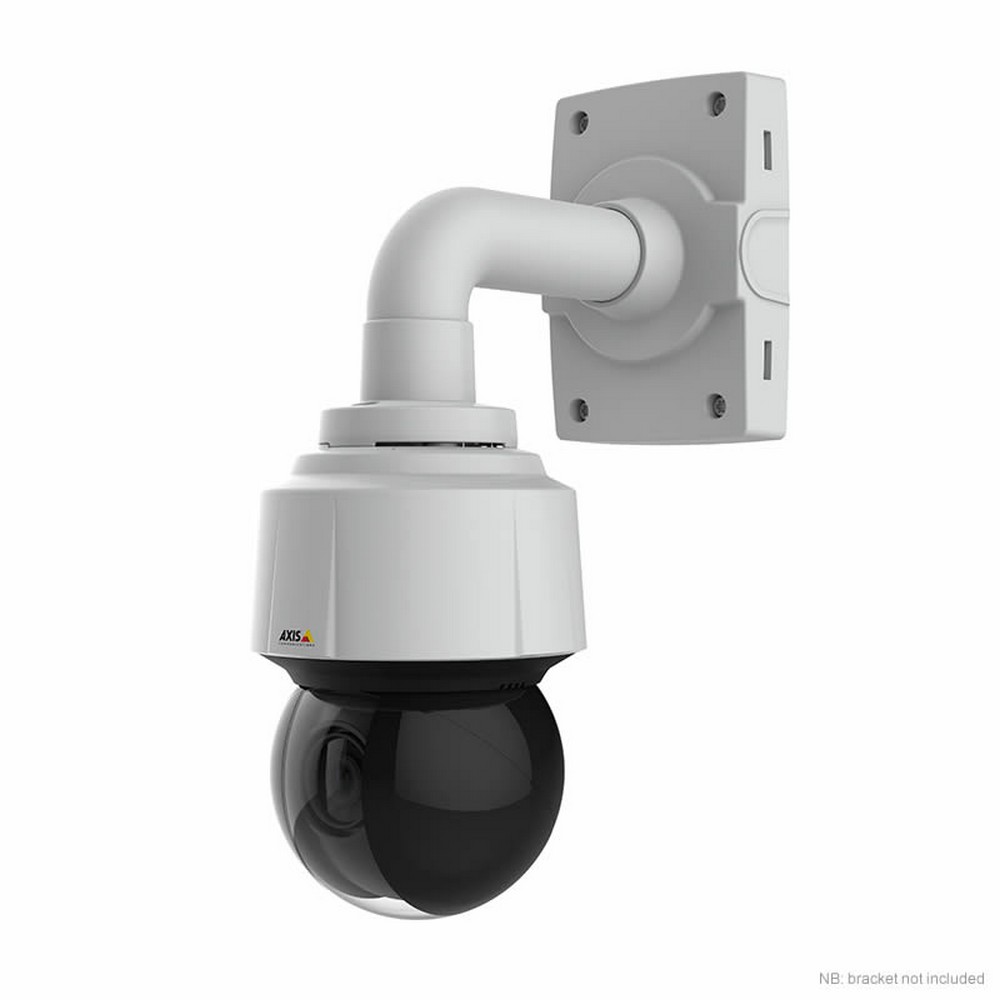

Name: AXIS Q6114-E PTZ Network Camera
Availability: OutOfStock

SKU: CP0000004469 SKU e prodhuesit: 0650-004 Kategori: Audio / Video, Video Surveillance, Environment Monitoring, Others Brand: Axis Communication

Axis pan/tilt/zoom camerasx

High-end HDTV 720p PTZ camera with Sharpdome technology and Lightfinder

Lightfinder HDTV PTZ for outdoor as well as indoor use. HDTV 720p resolution in 60 fps with 30x zoom and top performance. Perfect image quality in all directions, without distortion. 130 dB WDR, EIS, automatic defog, Advanced gate keeper. With its comp act size and repaintable surface, it will easily blend into the surroundings. Midspan included.

Key features :

360° pan and 20° above horizon tilt capabilities enable effective security monitoring of wide areas, allowing activity to be specifically pinpointed and viewed
High quality identification of objects and individuals with 30x optical zoom
Can produce HD 720p at 60 fps, providing video footage ideal for busy, fast-paced applications
Capable of 24-hour surveillance, switching from day to night mode
Increased sensitivity in low light with Axis Lightfinder technology
Auto focus and auto iris help with installation
Crisp video footage and clear image capture in rainy conditions with Sharpdome technology
Supports Motion JPEG and H.264 to reduce video file size
Improved visibility in smoke, haze, dust and fog with defog technology
High performance in windy conditions with Electronic Image Stabilisation (EIS) technology
Prevents saturation of images in scenes with bright light sources using highlight compensation
Copes well in challenging lighting environments with Wide Dynamic Range ~ Dynamic Capture technology
Advanced analytics including video motion detection, Active tampering alarm and Axis Active Gatekeeper with auto tracking
IK08, IP66 and NEMA 4X rated for durable outdoor use
Powered via High PoE (midspan included), enabling simple installation
Supports on-board recording to SD card (card not included)
iOS and Android mobile support

Typical applications

The Axis Q6114-E outdoor PTZ dome network camera delivers advanced security surveillance ideal for large internal or external CCTV applications that require 24-hour, high performance video capture of fast-paced activity. Typical applications include city and traffic surveillance, airports, stadiums and perimeter surveillance.

Datasheet

Përshkrimi

Key technical features of the Axis Q6114-E

Camera
Environment:	outdoor (IP66, IK08 and NEMA 4X rated)
Type:	PTZ dome
Sensor:	1/3 progressive scan CMOS
Lens:	f=4.3-129 mm, F1.6-4.7, autofocus, auto iris, 58.3° – 2.1° view
PTZ:	pan: 360° endless, 0.05-700°/s, tilt: +20 to -90° with nadir flip, 0.05-500°/s, zoom: 30x Optical, 12x digital, total 360x zoom, speed dry, nadir flip, 256 preset positions, tour recording, guard tour, control queue, on-screen directional indicator, set new pan 0°, adjustable zoom speed
Power:	High PoE midspan 1-port: 100-240 V AC, max. 74 W, 60 W midspan: camera max consumption 51 W, 60 W midspan: camera typical consumption 10 W, 30 W midspan: camera max consumption 25.5 W, 30 W midspan: camera typical consumption: 10 W
Memory:	1 GB RAM, 512 MB Flash
Video
Resolution:	1280×720 (HDTV 720p) to 240×135
Compression:	H.264 baseline, main and high profiles (MPEG-4 Part 10/AVC), Motion JPEG
Frame-rate:	25/30 or 50/60 fps (50/60 Hz) in all resolutions and H.264
Bandwidth control:	multiple, individually configurable streams in H.264 and Motion JPEG, controllable frame rate and bandwidth, VBR/MBR H.264
Day/night:	automatically removable infrared cut-filter
Minimum illumination:	colour: 0.15 lux at 30 IRE F1.4, B/W: 0.008 lux at 30 IRE F1.4
Video overlay:	text and image
Imaging:	compression, colour, brightness, sharpness, white balance, exposure control, exposure zones, rotation, backlight compensation, fine tuning of behavior at low light, electronic image stabilization, defogging, manual shutter time, image freeze on PTZ, highlight compensation, wide dynamic range (WDR) – dynamic capture: 130 dB
Viewing, detection & recording
Privacy masking:	32 individual 3D privacy masks
Number of users:	not given
Alarm detection:	detectors: live stream accessed, motion detection, shock detection hardware: fan, network, temperature, input signal: manual trigger, virtual inputs, PTZ: autotracking, error, moving, preset reached, ready storage: disruption, recording system: system ready, time: recurrence, use schedule
Alarm action:	day/night vision mode, overlay text, record video, file upload: FTP, HTTP and email notification: email, HTTP and TCP, PTZ preset, guard tour, video recording to edge storage, autotracking
Pre-/post-alarm buffer:	yes
On-camera recording:	SDHC UHS-I/SDXC UHS-I slot supporting memory card up to 64 GB (card not included)
Direct-to-NAS storage:	yes
Recording software supported:	Axis Camera Station
Connections
Power:	High PoE midspan 1-port: 100-240 V AC
Network:	RJ45 for 10BASE-T/100BASE-TX PoE
SD card slot:	SD card
Other:	RJ45 push-pull connector (IP66) included
Other
Dimensions:	H 275mm x W 164mm x L 140mm
Weight:	2.7 kg
Casing:	IK08, IP66- and NEMA 4X-rated metal casing (aluminum), polycarbonate (PC) clear dome with Sharpdome technology
Warranty:	3 years
Mounting methods:	wall or ceiling (mounting brackets not included)
Operating temperatures:	-40°C to +70°C
Power consumption:	High PoE midspan 1-port: 100-240 V AC, max. 74 W, 60 W midspan: camera max consumption 51 W, 60 W midspan: camera typical consumption 10 W, 30 W midspan: camera max consumption 25.5 W, 30 W midspan: camera typical consumption: 10 W
Dynamic DNS:	yes
Protocols supported:	IPv4/v6, HTTP, HTTPSb, SSL/TLSb, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, NTCIP
QoS:	yes
Security:	password protection, IP address filtering, HTTPS encryption, IEEE 802.1Xa network access control, digest authentication, user access log, centralised certificate management
ONVIF compliant:	yes, profile S

Më shumë informacion

Max. frames per second	50/60
Day and night mode	Yes
Max. video resolution	1280x720
Compression Type	MULTIPLE COMPRESSION TYPES
Environment	Outdoor
Signal Process	IP
Position Type	PAN-TILT ZOOM
PoE	Yes
Lens Type	VARI-FOCAL
