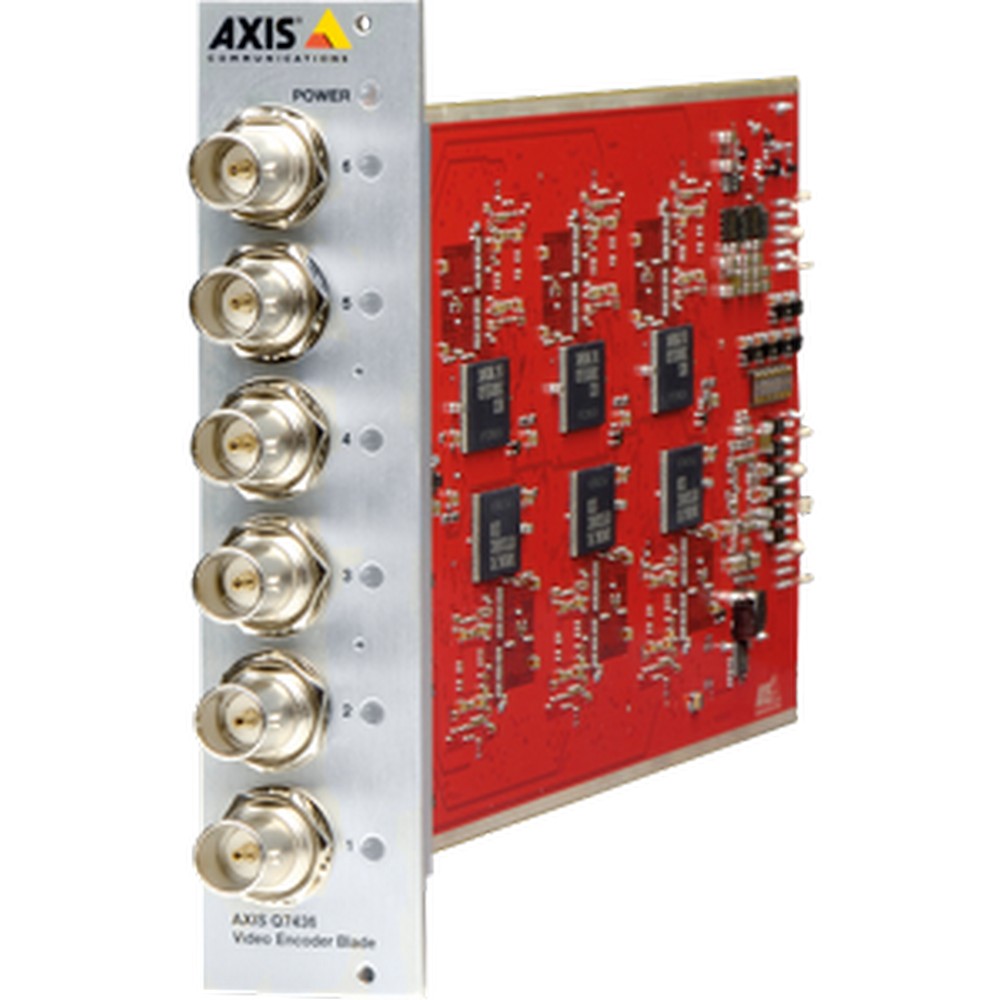

AXIS Q7436 Video Encoder Blade

Përshkrimi

·         High-density video encoder solution

AXIS Q7436 Video Encoder Blade is a high-performance 6-channel blade for video encoder rack solutions, enabling a large number of analog cameras to be integrated into an IP-based, high-density video surveillance system. The video encoder blade fits perfectly into AXIS Q7920 Video Encoder Chassis, the industry’s highest-density encoder chassis with support for up to 84 analog cameras.

• Outstanding video processing performance

AXIS Q7436 is a full-featured video encoder solution offering outstanding video processing performance and great flexibility. It supports 60/50 (NTSC/PAL) frames per second, providing smooth video in high motion scenes. This also enables the user to more closely follow details and changes in the monitored area, which is of major importance in forensic work.

• Coax PTZ Control

AXIS Q7436 allows PTZ control over the coaxial cable, resulting in significant installation savings. In addition, the video encoder provides standard support for PTZ cameras using the serial ports.

• Intelligent video capabilities

The video encoder offers powerful event management capabilities with embedded intelligent features such as motion detection and active tampering alarm, in addition to AXIS Camera Application Platform applications.

TECHNICAL SPECIFICATIONS

VIDEO

• Video compression: H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles Motion JPEG.
• Resolutions: 176×120 to 720×576 NTSC/PAL.
• Frame rate: Up to 60/50 fps (60/50 Hz) in all resolutions.
• Video streaming:

• Multiple, individually configurable streams in H.264 and Motion JPEG.
• Axis Zipstream technology in H.264.
• Controllable frame rate and bandwidth VBR/MBR H.264.

NETWORK

• Security: Password protection, IP address filtering, HTTPSa encryption, IEEE 802.1Xa network access control, digest authentication, user access log, centralized certificate management.
• Supported protocols: IPv4/v6, HTTP, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, SFTP, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH.

GENERAL

• Memory: 6x 256 MB RAM, 6x 256 MB Flash.
• Power: 12 V DC, max 16.3 W.
• Connectors: 6x analog composite video BNC inputs.
• Operating conditions: 0° C to 45° C (32° F to 113° F) Humidity 10–85% RH (non-condensing).
• Storage conditions: -40 °C to 65 °C (-40 °F to 149 °F).
