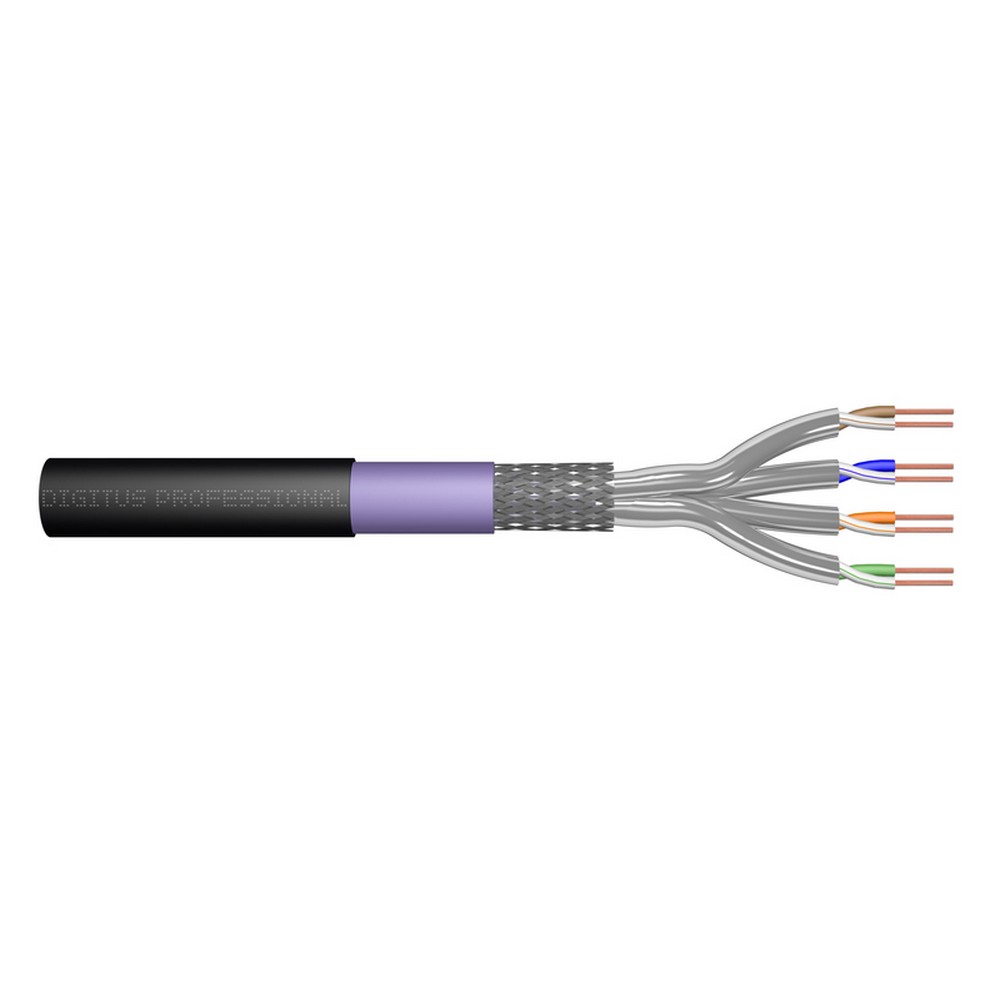

CAT 7 S-FTP outdoor installation cable, 1200 MHz PE, inner Eca (LSZH-1), AWG 23/1, 100 m ring, simplex, color black & purple

Përshkrimi

CAT 7 S-FTP outdoor installation cable, 1200 MHz PE, inner Eca (LSZH-1), AWG 23/1, 100 m ring, simplex, color black & purple

Best performance and link quality for your network.

Technical Details

Physical Properties

• Conductor :  Bare annealed copper, solid AWG 23/1; diameter 0.56 mm nominal
• Insulations :  SFS-PE (Foam-Skin Polyethylene)
• Total number of insulated conductors :8, twisted in 4 pairs
• Color code: Blue-white, orange-white, green-white, brown-white
• Individual pair shielding Aluminum foil, providing 100% coverage
• Outer sheath PE (Polyethylene); UV resistant
• Outer sheath diameter 0.50 mm nominal
• Outer sheath color Black (RAL 9005)
• Inner sheath ECA acc. to EN 50575
• Inner sheath diameter: 0.50 mm nominal
• Inner sheath color:  Purple
• DoP number: 1000_007

Mechanical Properties

• Tensile loading : 150 N max.
• Dynamic bending radius:  8x AD mm min.
• Static bending radius:  4x AD mm min.
• Shipping- and storage temperature range:  -20 °C up to +60 °C
• Operating temperature range:  -50 °C up to +60 °C
• Installations temperature range 0 °C up to +60 °C
• Overall diameter:  8.5 mm nominal
• Flame retardancy inner sheath:  IEC 60332-1 (LSZH-1/FRNC-B)
• Halogen free & smoke-proof inner sheath:  IEC 60754-2 & IEC 61034
• Fire load: 650 Mj/km
• Weight:  66,5 kg/km

Electrical Properties

• Impedance:  100 ± 15 Ohm @ 4-100 MHz; 100 ± 25 Ohm @ 100-600 MHz
• Capacitance:  45 pF/m nominal @ 1 KHz
• Capacitance unbalance (pair-ground): 1.6 pF/m max. @ 1 KHz
• Insulation resistance: 5 GOhm x km min.
• DC resistance:  95 Ohm/km max. (2% max. resistance unbalance)
• DC loop resistance:  190 Ohm/km max. (2% max. resistance unbalance)
• Voltage resistance: 72 Vdc max.
• Coupling attenuation: 70 dB
• Signal propagation delay:  450 nS/100 m max.
• Propagation delay:  25 nS/100 m max.
• Separating class:  „d“ acc. to EN 50174-2
• NVP: 79%
