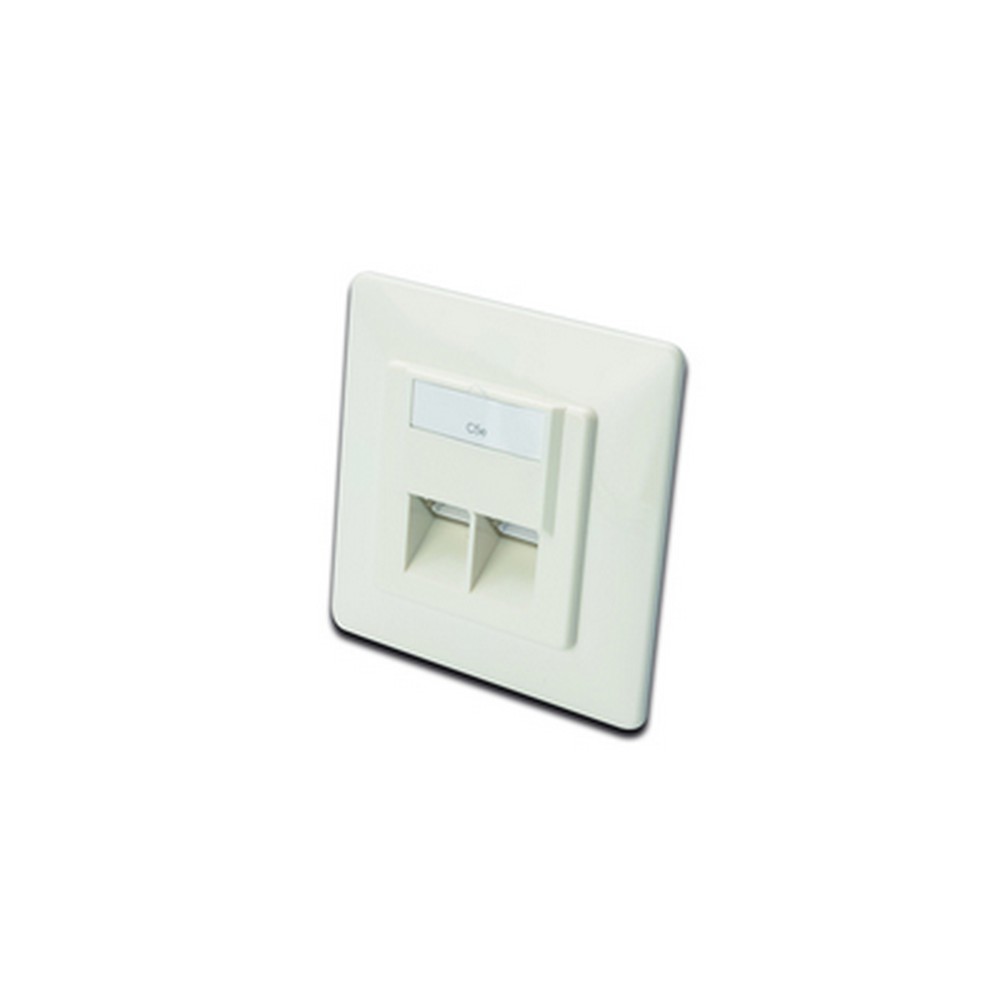

Name: DIGITUS CAT 5e wall outlet, shielded 2x RJ45, 8P8C, LSA, color pure white, flush mount
Price: 804 ALL
Availability: OutOfStock

SKU: CP0000005317 SKU e prodhuesit: DN-9001-N Kategori: Passive / Cables & Cabling Brand: DIGITUS Professional

DIGITUS CAT 5e wall outlet, shielded 2x RJ45, 8P8C, LSA, color pure white, flush mount

Full compatible design. The shielded CAT 5e network outlets from DIGITUS® are certificated to CAT 5e EIA/TIA 568 and ISO/IEC 11801, EN 50173. The cable installation takes place via LSA strips, color coded acc. EIA/TIA 568 B with horizontal cable entry. All network outlets from DIGITUS® are available flush mount or surface mount.

KEY FEATURES

Flush mount design and horizontal cable entry provide a neat installation.
Ensured safety due to completely shielded RJ45 sockets and LSA strips.
The sockets are angled by 40° which makes the plug in of patch cables very easy.

Datasheet

Përshkrimi

General properties:

Suitable for installation in trucking, surface and flush mount.
RJ45 female, 8P8C.
Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B.
Integrated strain relief for installation cables.
Complete shielding of RJ45 sockets and LSA strips due to zinc die-cast housing.
Strain relief 40°-angled female for patch cord.
Central plate: 50 x 50 mm.
Frame: 80 x 80 mm.
Central plate with integrated dust covers.
Design compatible to common switch ranges.

Technical properties:

Housing material: Die-cast metal.
RJ45 female material: ABS UL 94V-0.
RJ45 female contact: Tinned phosphor bronze, 0.5 μ gold-plated contact.
RJ45 shielding: Tinned bronze.
LSA termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze.
Conductor plate: FR4, UL 94V-0.

Physical properties:

Insertion force: 30N max. (IEC 60603-7-5).
Retention strength: 7.7 kg between jack and plug.
Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C).
Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5.
Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5.
IDC wire size: 22 – 26 AWG solid and stranded conductor.
Insulation resistance: > 500 MOhm.

Më shumë informacion

Contact resistance	< 20 MilliOhm
Transmission property	Category 5e
Area of application	Up to 100 MHz, 10/100Base-T, 1GBase-T
Norms	ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C
Dielectric strength	1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
