A high-performance router with a standards-based, secure applications server in the same dual-core hardware platform, which brings together network transport and business applications. Operatwes both as a router and server (file/printer/scanner server, LDAP server, IP telephony server), Flexible with modular structure.

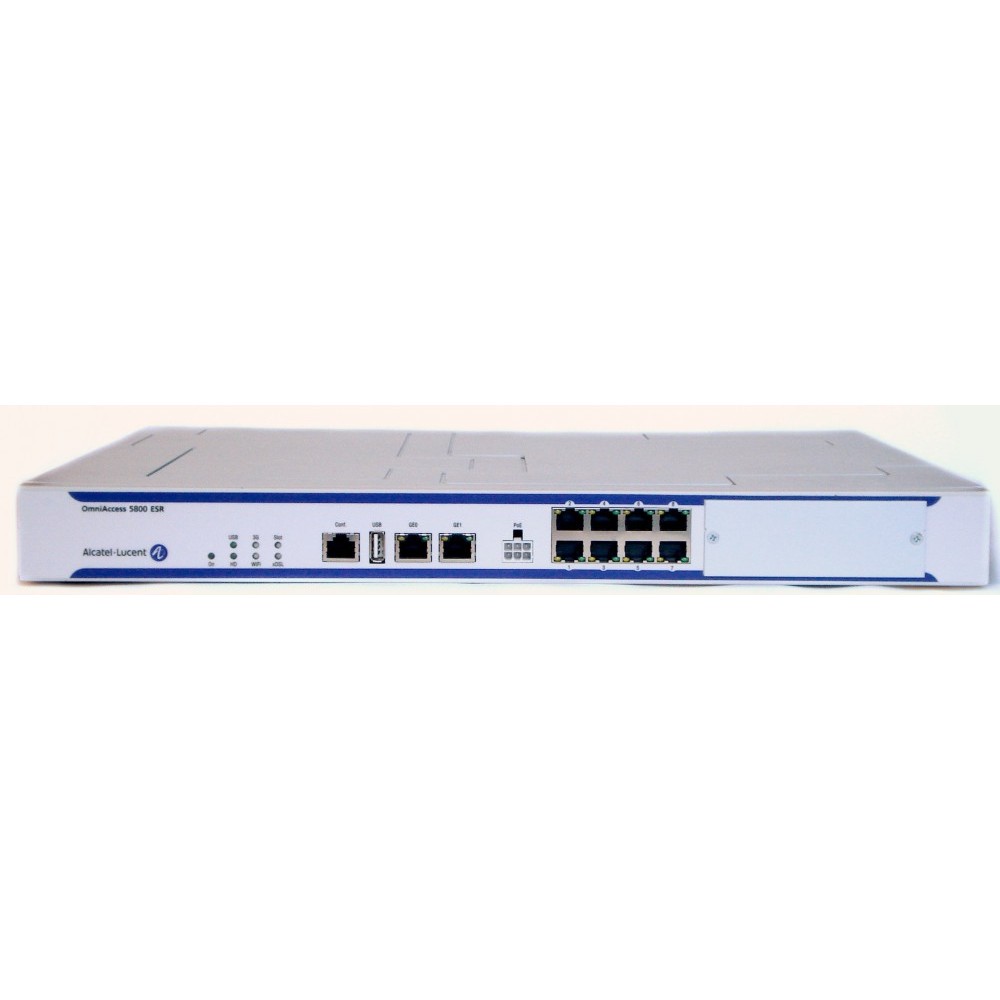

The Alcatel-Lucent OmniAccess® 5800 Enterprise Services Router (ESR) series bring together network transport and business applications into the same dual core hardware platform. They combine a high-performance router with a standards-based, secure applications server.

KEY FEATURES

Integrated VoIP solution, supporting up to 300 telephony endpoints with Media Gateway features.
Processor exceeds 100 Mb/s routing bidirectional sustained flow throughput with active services.
Base includes 2 GE network connections and 8 Ethernet ports 10/100 with advanced functions VLAN, 802.1P/Q/X and Wi-Fi 802.11n Access Point. Optional PoE.
Compatible with the Alcatel-Lucent OmniAccess ESR Wireless WAN (WWAN) Enabler, an external interface that grants wireless WAN access, enabling the router with 4G.
2 expansion slots and many card possibilities: VDSL2, ADSL2+, G.SHDSL (2p), 3 serial ports, 2 BRI, 2 SFP, 4 FXS/FXO, 2 E&M, 4 E1/T1 or 8 10/100 RJ-45 Fast Ethernet.
Includes advanced routing and state-of-the-art security free of charge: ACLs, Firewall, 802.1X, IPSec.
Application scenarios on the embedded GNU/Linux core.

Datasheet

Përshkrimi

Gigabit Ethernet interfaces

2 x 10/100/1000 Ethernet, RJ-45.
Electric interface compliant with 10/100/1000Base-T IEEE 802.3.

IEEE 802.3 ah (Ethernet OAM).
Operational up to 180 meters with category 5 cable.
Automatic crossed detection MDI/MDIX. for all operating modes.
Auto-negotiation complying with IEE 802.3u.

IEEE 802.1Q (VLAN).
IEEE 802.1X.
2 status LEDs per port.

Fast-Ethernet Switch

8 x 10/100 Ethernet, RJ-45.
10/100Base-T detection.
Automatic semi-duplex/duplex negotiation.
MDI/MDI-X detection (crossover detection).
Ethernet V2/IEEE 802.3.
LLC (IEEE 802.2), ARP.
IEEE 802.1Q (VLAN) up to 16 VLANs.
Managed switch:

EtherLike-MIB (RFC 2665).
SNMP-REPEATER-MIB (RFC 2108).
MAU-MIB (RFC 2668).
2 status LEDs and activity per port.

WLAN-specific features

IEEE 802.11 a/b/g/n modes.
Manual or automatic channel selection.
Selectable power transmission.
Manual or automatic speed selection.
IEEE 802.11i, WPA, WPA2.
EAP, EAPOL.
Authentication (open, shared, WPA).
Encryption (AES, TKIP, WEP).
ESSID.
MAC filtering.
Quality of Service (QoS) AIFS, CWmin, CWmax.

USB interface

Cellular features:

Passive interface down detection. (analysis of received traffic).
Active interface down detection (poll).
Automatic handover.

Protocols and functionalities IPv4

IP, ARP, Proxy ARP.
Static IP Routing.
RIP I, RIP II, OSPFv2 and BGP-4.
Bidirectional Forwarding Detection (BFD).
Compatible with HSRP.
RFC 2281 Virtual Router Redundancy Protocol (VRRP).
Policy routing.
Multi-VRF.
Quality of backup: Routing based on network quality measurements.
Multi-path per IP packet (with static and dynamic routing).
Weighted balancing per TCP/IP session.
Multicast: IGMP, IGMP-proxy, MOSPF.
DHCP client, server and relay.
NTP Client.
DNS client and proxy.
DNS cache.
DNS dynamic updating (RFC 2136).
DynDNS Client.
NAT/PAT/Port Mapping/NAT exceptions.
PAT firewalling.
Multiple addresses per interface.
Loopback interfaces.

IPv6

IPv6 Core/Routing.
Dual Stack IPv4/IPv6 (DS-Lite).
Address auto configuration.
Multicast MLD/MLDv2.
IPv4 to IPv6 transition mechanisms RFC 4213).
IPv6 over IPv4/IPv4 over IPv6 tunnels.
ACLs and firewall.
IPv6 ,management (CLI, Telnet, FTP, ping, traceroute, etc.).

PPP

PPP (RFC 1661), PAP/CHAP, IPCP.
Dynamic assignment of IP addresses (own or peer).
PPP Multilink.
Multi-Class Extension to Multi-Link PPP (RFC 2686).

PPPoE

PPPoE over Ethernet and over ATM.
PPPoE Bridge + routing (PPPoE pass-through).
PPP Multilink over PPPoE.
Re-negotiation based on PADT.

ATM

PVCs: 31 and SVCs.
VPIs and VCIs range: Complete.
Dynamic creation and destruction of PVCs.
Traffic Shaping: CBR, UBR, VBR-nrt, VBR-rt.
OAM F4/F5.

Encapsulation over ATM

PPPoA RFC 2364 LLC and VC-based.
PPPoE RFC 2516 LLC and VC-based.
Classical IP over ATM (RFC 2225).
Ethernet Bridged RFC 1483 LLC and VC-based.
Frame Relay over ATM: FRF.5 and FRF.8.

Quality of Service (QoS)

Packet labeling (DiffServ) depending on interface, subinterface, protocol, port, MAC and size.
Congestion control: FIFO, queuing priority, BRS proprietary system, WFQ.
Traffic limiting in queues, with overflow in lesser priority queues. Standard limitation over ATM and Frame Relay.
Fragmentation in FR (FRF.12) PPP and MPPP.

Më shumë informacion

Console	TIA/EIA-232 at 9600 b/s (max. 115,200 b/s)
USB interface	USB 2.0 host interface
ATM	SAR AAL5
Encapsulation over ATM	Routed IP RFC 1483 LLC and VC-based
Telephony over IP (ToIP)	SIP: RFC 3261, RFC 3262, RFC 3264, RFC 3265
Data compression	Compression in X.25 and PPP
