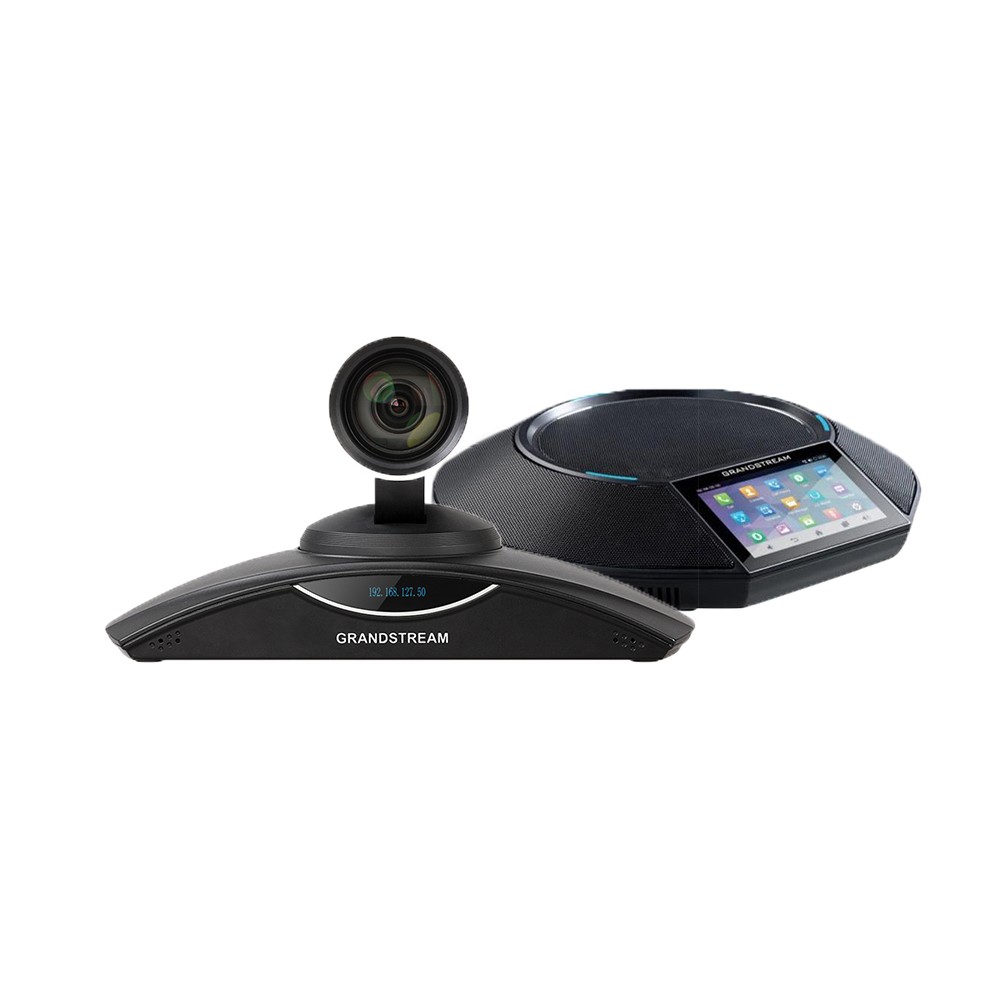

Name: Grandstream Full HD VideoConferencing GVC3200
Price: 425880 ALL
Availability: OutOfStock

SKU: CP0000004947 SKU e prodhuesit: GVC3200 Kategori: Communication, Audio / Video Communication, Video Conferencing Brand: Grandstream

The GVC3200 is a revolutionary video conferencing system that provides an interactive and immersive video conferencing environment to increase collaboration and productivity. This SIP-based GVC3200 allows the user to connect their video conferencing solutions with any 3rd party SIP or H.323 video conferencing platform. Additionally, its built-in MCU bridges multiple platforms such as Skype, Google Hangouts and many others. . Additionally, since the GVC3200 is based on an Android 4.4 operating system it offers access to applications in the Google Play Store. Users will elevate their experience with its 1080p Full-HD video, up to 9-way video conferences, 3 monitor outputs, screen-sharing capabilities, WiFi and more.

The GVC series supports Grandstream’s IPVideoTalk Video and Web Conferencing platform. This paid-subscription based service allows users to turn any meeting hosted on any GVC device into an online meeting that can be joined seamlessly from a web browser or GVC. Turn any physical room into a virtual, online meeting place to offer your customers the tools they need to be successful, no matter where they are.

KEY FEATURE

1080p Full-HD video, up to 9-way video conferences, support for 3 monitor outputs through 3 HDMI outputs.
9-way hybrid-protocol conferencing with no external MCUs/servers or extra software licenses.
PTZ camera with 12x zoom.
Can be installed in three simple steps.
Plug and Play connection to Grandstream’s IPVideoTalk video conferencing service.
Supports most SIP and H.323 video conferencing platforms.

Datasheet

Përshkrimi

Protocols/Standards: SIP RFC3261, BFCP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP, TCP/IP/UDP, IPv6, FEC, FECC, H.323, Q.931, H.224, H.281, H.225.0, H.239, H.241, H.245, H.460.18 and H.460.19.
Video Input: 1x VGA/1x HDMI with resolution up to 1080p.
Microphone/Speaker: External MIC/Speaker, built-in MIC, cascadable external MIC/speaker (pending).
Remote Control: Bluetooth remote control with multi-touch touchpad.
Auxiliary Ports: 1x USB 2.0, SD, external speaker port, reset pin.
Graphic Display: OLED with 128×32 resolution.
Voice Codecs: G.711μ/a, G.722 (wide-band), G.726-32, iLBC (pending), Opus, G.722.1, G.722.1c (pending), in-band and out-ofband DTMF (In audio, RFC2833, SIP INFO).
Video Codecs: H.264 BP/MP/HP, video resolution up to 1080p, frame rate up to 30 fps, bitrate up to 4Mbps.
People Video Resolution: 1080p from 512 Kbps, 720p from 384 Kbps, 4SIF/4CIF from 128 Kbps, SIF/CIF/QSIF/QCIF/SQSIF/SQCIF from 64 Kbps.
Content Video Resolution: Input: VGA, SVGA, XGA, WXGA, WXGA, SXGA, 1440×900, 720p, 1600×1200, 1080p (HDMI), up to 60fps; Encoding: 1280×720, 1920×1080.
Output Resolution: 720p, 1080p.
Embedded MCU: Up to 4-way 1080p conference, 5-way 720p conference, 9-way VGA conference.
Dual-Stream: BFCP, people video (up to 1080p@30fps) + content video (up to 1080p@15fps, 720p@30fps).
Audio Features: AEC, ANS, AGC, PLC, CNG/VAD.
Video Features: FEC, dynamic display layout, picture-in-picture, picture-outside-picture, digital caption (pending).
Platform Bridging: Bridge SIP calls with any Android VoIP apps such as Skype, Skype for Business, Google Hangouts and more.
Telephony Features: Hold, transfer, forward (unconditional/no-answer/busy), call park/pickup, 9-way audio/video conference, downloadable XML phone book, LDAP, call waiting, call history, flexible dial plan, personalized music ring tones, server redundancy & fail-over.
Sample Applications: Skype, Google Hangouts, Skype for Business, Web browser, Facebook, Twitter, YouTube, Google calendar, mobile phone data import/export via Bluetooth, etc. API/SDK available for advanced custom application development.
Application development: Skype, Google Hangouts, Skype for Business, Web browser, Facebook, Twitter, YouTube, Google calendar, mobile phone data import/export via Bluetooth, etc. API/SDK available for advanced custom application development.
QoS: Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS.
Application Deployment: Allows Android 4.4.2 compliant applications to be deployed in the device with provisioning control.
Security: User and administrator level passwords, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, TLS, 128/256-bit SRTP, HTTPS, 802.1x media access control.
Multi-Language: English, German, Italian, French, Spanish, Portuguese, Russian, Turkish, Polish, Chinese, Korean, Japanese, and more.
Upgrade/Provisioning: Firmware upgrade via TFTP / HTTP / HTTPS or local HTTP upload, mass provisioning using TR-069 or AES encrypted XML configuration file.
Power & Green Energy Efficiency: Universal power adapter included: Input 100-240VAC 50-60Hz; Output 12VDC/5A (60W)
Package Content: GVC3200 video conference system, external USB speaker/MIC, remote control, 2 AAA batteries, universal power supply, network cable (1.5 meters), USB extension cable (5 meters), mounting kit, 4 HDMI cables (one 1.5 meter cable, two 3 meter cables and one 5 meter cable), lens cover, lens cleaning cloth, quick installation guide, GPL license.
Dimensions and Weight: Net weight: 5.06 Kgs; Gross weight per box: 7.8 Kgs; Unit Dimensions (L x W x H): 11.9’’ x 4.89’’ x 7.15’’.
Temperature and Humidity Operation: 0°C to 40°C, Storage: -10°C to 60°C, Humidity: 10% to 90% Non-condensing.
Compliance: FCC: Part 15 (CFR 47) Class B; UL 60950 (power adapter), Part 15C, Part 15E.407, Part 2.1091 CE: EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1, EN62479, RoHS, EN301893, EN62311 RCM: AS/NZS CISPR22/24; AS/NZS 60950; AS/NZS 4268.

Më shumë informacion

Camera	1/3" 2 Megapixel CMOS 1920Hx1080V@30fps
Lens	12x optical zoom, +/-23deg tilt, +/- 90deg pan, 70deg(W)*- 6.3deg (T) field of view
Network Interface	1x RJ45 10/ 100/ 1000 Mbps port
Wi-Fi	Yes, integrated dual-band 802.11 a/b/g/n (2.4GHz & 5GHz)
Bluetooth	Yes, integrated. Bluetooth 4.0 + EDR
