Përshkrimi

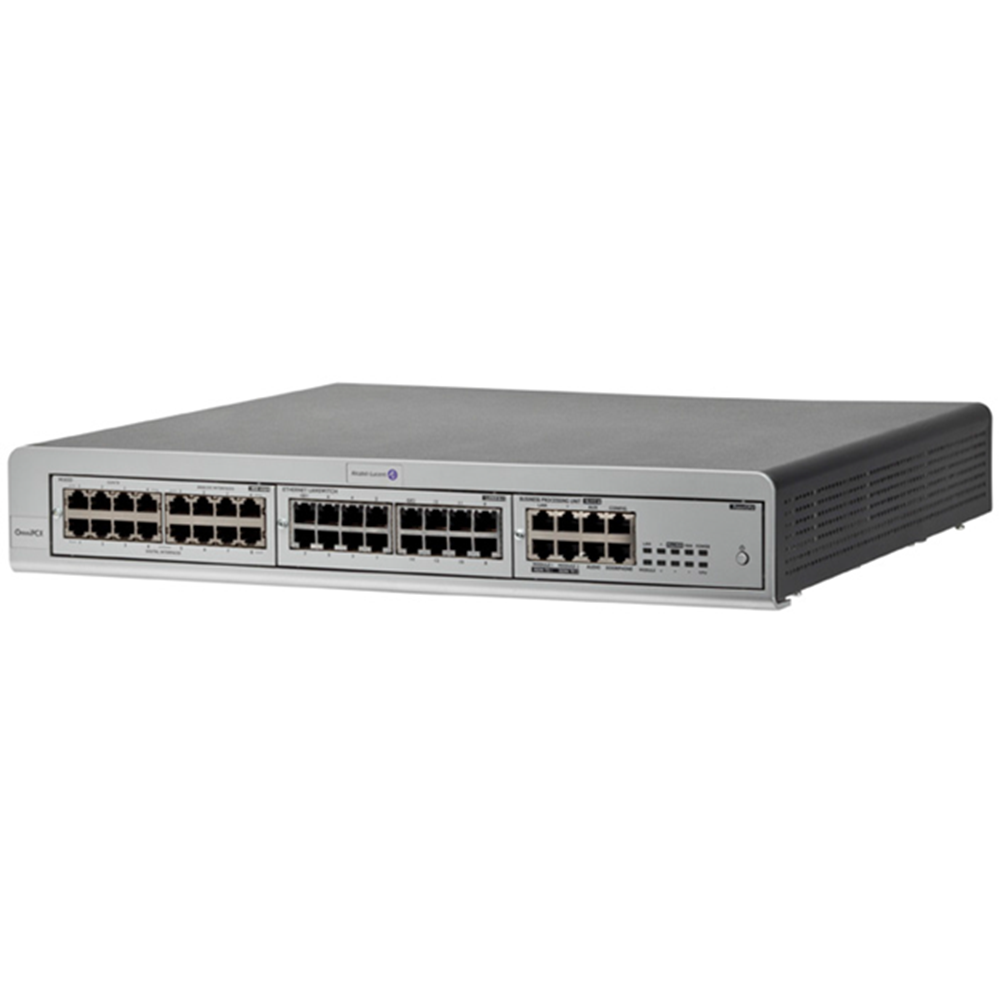

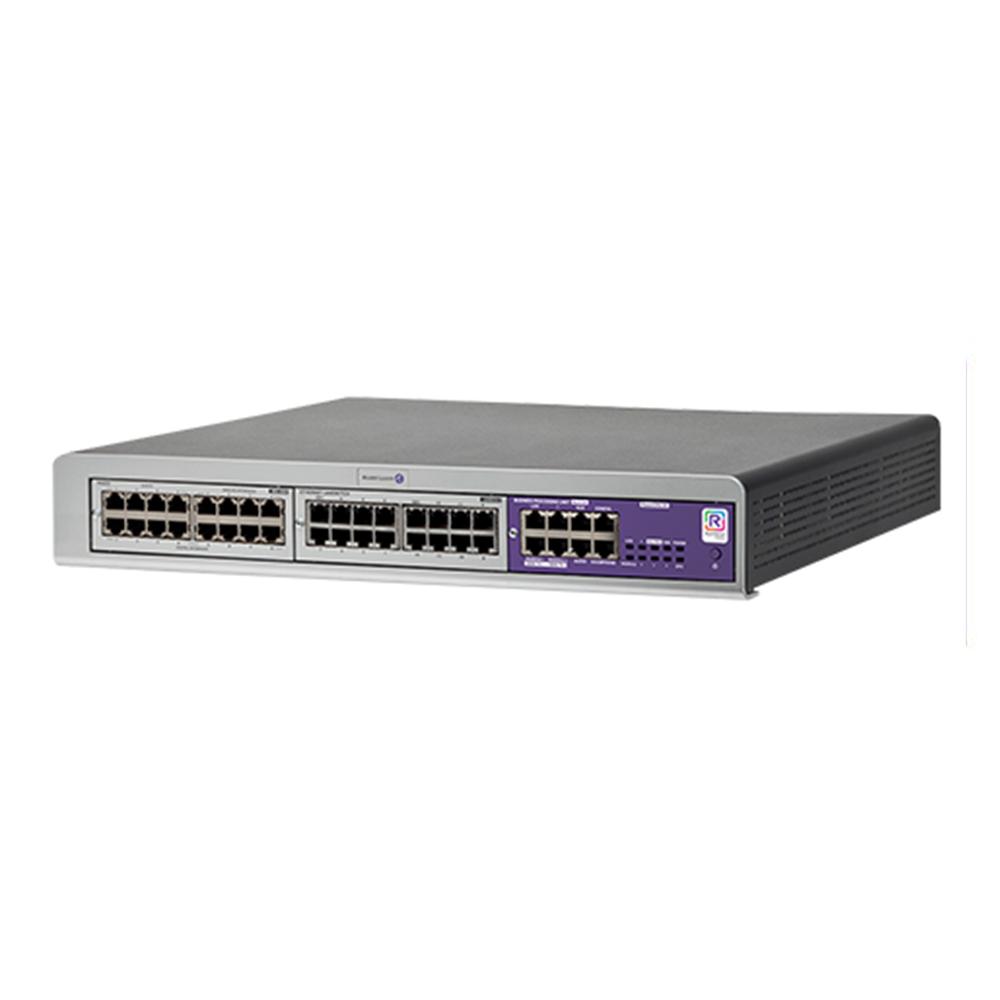

• Small Version (S) 1U

• 2 free modular slots
• Noise level: maximum 40dBA
• Power maximum/typical: 70W/28W
• Weight (unpacked): 6 kg
• Depth:  400 mm
• Width:  442 mm
• Height: 66 mm

• Interface boards:

• Terminals
• Analog Interfaces SLI 4, 8, 16
• Digital Interfaces UAI 4, 8, 16
• Network
• BRA boards (T0) 2, 4, 8
• PRA boards (T1, T2) 1
• Analog trunk(1) 2,4
• Mixed boards T0/UA/SL 2/4/4, 4/4/ 8, 4/8/4
• Analog mixed boards APA/UA/SL 4/4/ 4-1, 4/4/8-1, 4/8/4-1
• Mini-MIX2/0/2
• LAN
• Ethernet LANswitch LanX 16 10/100/1000 BT auto-sense unmanaged

• System Architecture:

• All-in-one call server

• Switching: TDM and IP + hybrid
• Software

• Linux: Linux Kernel 2.6.29.6

• Hardware:PowerCPU EE (PowerPC e300), Covers, Chassis (compact, S, M, L), All requirements and options, Memory Storage Daughter Board (MSDB): 8GB ( EMMC),  Hardware watchdog, 16 VoIP DSP channel, Daughter board (optional), AFU: CD-player, door phone, loudspeaker, HSL1 or HSL2 : for multiple cabinet interconnection (S,M,L chassis), MiniMIX 2/0/2 (compact chassis only),  VoIP 32 (increase to 48 VoIP channels), VoIP 64 (increase to 76 VoIP channels), Chassis• Compact (C) Edition¬ AC/DC power supply: external¬ Backup battery: external (optional), Installation: offfice environment, wall-mounted, 1 free modular slot, No fan, Height: 70 mm, Width: 345 mm, Depth: 340 mm, Weight (unpacked): 5.1 kg, Power maximum/typical: 40 W  / 25W, Noise level: 0, Chassis: racks S, L, M, Standard in S, M, L Editions: Fan, Rack (19-inch rack), AC/DC power supply: Integrated– Backup battery: Internal / external (Option)– Installation: stack, rack, wall-mounted– Combination: up to 3 chassis, maximum of 27 free slots.
• Application partner interfaces (AAPP):

• SIP
• CSTA, TAPI 2.0, TAPI 2.1
• Alcatel-Lucent Hospitality Link
• Local call metering application (LCMA)
• Alcatel-Lucent OmniVista® 8770 Accounting and VoIP Ticket Collector, call detail records
• QSIG
• Urgent alarm

• (SIP/ISDN trunk)SIP : Session Initiation Protocol

• Header to routing based
• Static NAT (SIP ALG/ SBC less topology)
• Public conἀgurable SIP number format
• SIP capabilities¬ RTP direct; Multiple RTP Ḁow; SIP notiἀcation (IM); Video (RTP direct)
• Third-party devices (AAPP)
• Alcatel-Lucent SIP devices
• SIP end points (local users)
• SIP peering
• SIP private trunk
• SIP public trunk

• Networking:

• SIP networking
• QSIG-BC (DLT0 DLT2), ASR, Multisite,
• ISVPN ( T0/T2)
• H323 networking

• Security: Authentication, traffic filtering, SIP Perimeter, defense, encryption, alarm, server,

• DECT Radio: Radio DECT/GAP/AGAP

• Radio frequency range
• 92 GHz to 1.93 GHz (United States) with power adaptation
• 91 GHz to 1.93 GHz (South America)
• 88 GHz to 1.90 GHz (Europe)
• Alcatel-Lucent 4070 DECT Base Station
• Maximum devices registered: 200
• 2 UA interfaces
• Six simultaneous communications
• Inline powered
• Alcatel-Lucent 8340 and 8340-C Smart IP-DECT Access Points

• WLAN: OmniAccess® WLAN access points and WLAN controllers

• IEEE 802.11a/b/g/n
• IEEE 802.11i
