Name: RJ45 connectors for field assembly, T568A for all networks of voice up to 10Gigabit Ethernet mounting in only 60 seconds
Price: 3264 ALL
Availability: OutOfStock

SKU: CP0000005326 SKU e prodhuesit: A-MFP6A-8-8-TG Kategori: Passive / Cables & Cabling Brand: DIGITUS Professional

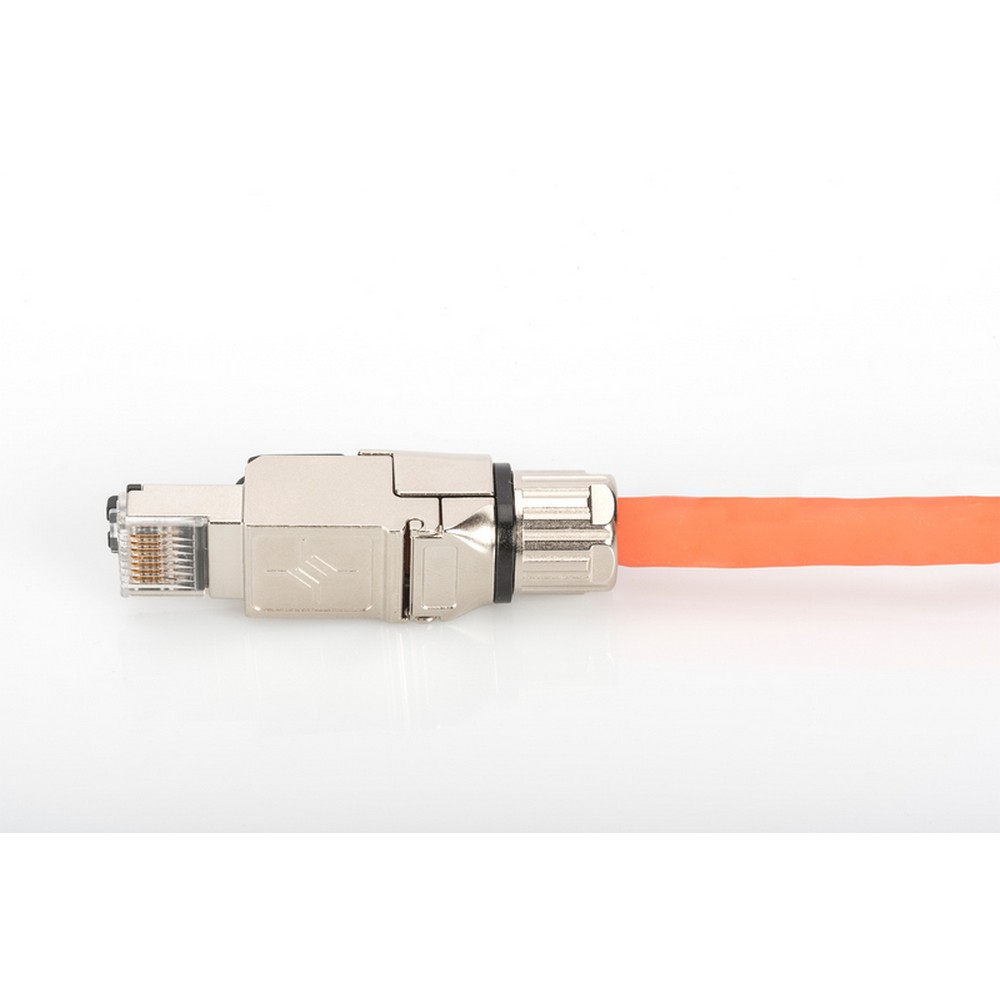

The A-MFP6A 8-8 TG is a modern and high class RJ45 plug, characterized not only by the simple application, but standing the field assembler every time reliably and quickly at his side. The rapid assembly in only 60 seconds without special tools, as well as the high flexibility, makes it to the perfect choice at any locations. It is suitable for all networks of voice up to 10 Gigabit Ethernet. Satisfied customers, because of fast and cost-saving installation, repairs and maintenance, are the logical consequence of this innovative RJ45 plug. Why complicate things when it can be so easy? See for yourself!

Key Features:

Pre-assembled protection cap
PoE+ acc. to IEEE 802.3at
Color code acc. to T568A or B
Robust zinc diecast housing
Robust zinc diecast housing
Attachable in only 60 seconds without special tools
Optimized for field usage, also in harsh conditions
Secure transmission even with outside interference

Datasheet

Përshkrimi

RJ45 connectors for field assembly, T568A for all networks of voice up to 10Gigabit Ethernet mounting in only 60 seconds

The RJ45 plug is optimised for the field use, including demanding applications. Can be assembled in 60 seconds without any special tools. Ideal for repair and expansion of networks.

Technical Details

Layout Performance: CAT 6A, 10GBase-T
Area of application: For extension and reparation of networks; for cabeling in office buildings, data centers, industry facilities and home improvements
Norms: IEC 60603-7-51, IEEE 802.3, IEEE 802.3an, ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C
General properties:
4-chambers wire manager
360° shielding
Cross sections AWG 27/7-22/7, AWG 24/1-22/1
Technical properties:
Core Diameter: 0.85 – 1.6 mm
Cable diameter: 5.0-9.0 mm
Strain relief: with cable fixture
Connectors: IEC 60603-7-5
Gigabit Ethernet acc. to IEEE 802.3
10 Gigabit Ethernet acc. to IEEE 802.3an: Adequate for 10 Gigabit Ethernet
Packing Unit: 10 pcs
