VB-S910F

Axis Communication

VB-S910F

SKU: CP0000004510 SKU e prodhuesit: 1389C001 Kategori: , , Brand:

Canon fixed network cameras

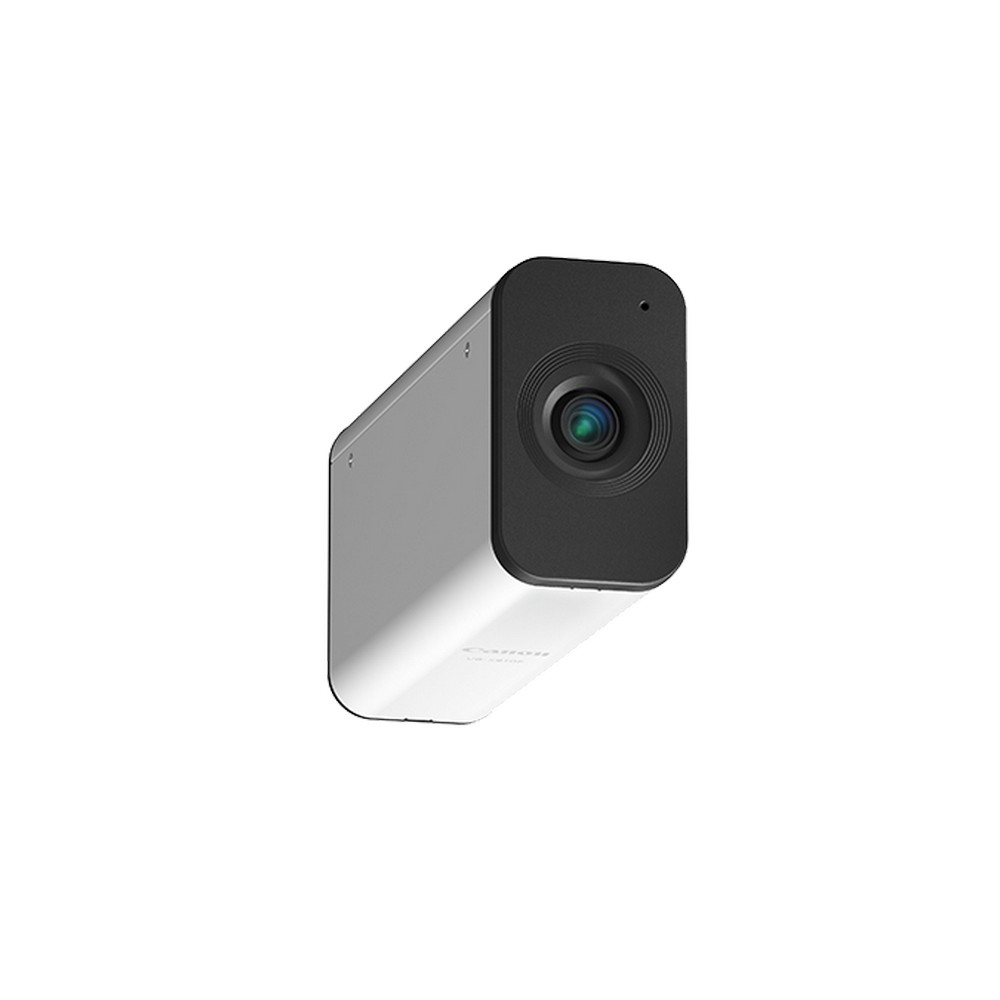

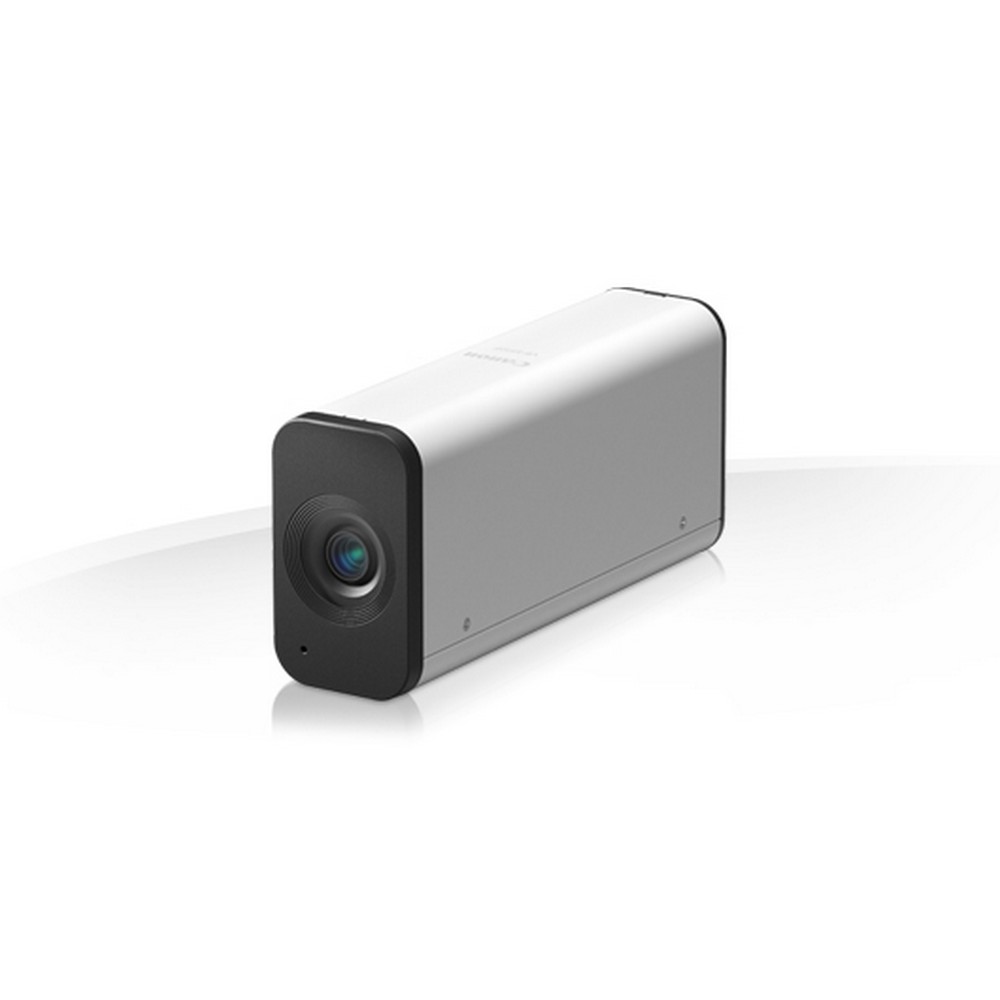

Compact box camera for capturing Full HD images and audio across a wide area.

A Full HD fixed box camera with optical zoom – ideal for indoor use. Featuring a wide-angle lens and a built-in microphone, this versatile camera captures even greater detail and context.

Key Feaures

  • Indoor surveillance camera with incredible accuracy, featuring a wide-angle 78.6° zoom lens and powerful low-light performance.
  • 2.1 MP 1/4.85” CMOS sensor and bright f/1.4–f/2.6 aperture with auto-focus.
  • Full HD imaging and 3.5x optical zoom with lowdistortion aspherical lens elements for clear, high resolution images.
  • Integrated omni-directional microphone for audio recording, providing an extra level of high-quality contextual information.
  • Compact, lightweight and easy to install • Maintain video quality while reducing data size with Motion Adaptive Noise Reduction and Area-specific Data. Size Reduction (ADSR) technologies.
  • Intelligent on-board analytics functions for advanced alarm detection.
  • Live monitoring and management from a wide range of web browsers and mobile devices.
  • Supports ONVIF® Profile S.

Datasheet

Out of stock

Përshkrimi

Camera

  • Image Senso: 1/4.85” type CMOS (primary colour filter).
  • Number of Effective Pixels: Approx. 2.1 million pixels.
  • Scanning Method: Progressive.
  • Lens: 3.5x optical (4x digital zoom) zoom lens with auto focus.
  • Focal Length:  2.25 (W) – 7.88 mm (T).
  • F-number:  F1.4 (W) – F2.6 (T).
  • Viewing Angle:
  • Horizontal: 78.6° (W) – 20.8° (T).
  • Vertical: 40.9° (W) – 11.6° (T).
  • Day/Night Switch:  Auto/Day Mode/Night Mode.
  • Min. Subject Illumination:
  • Day Mode (colour): 0.95 lux (F1.4, shutter speed 1/30 sec., SSC off, 50IRE).
  • Night Mode (monochrome): 0.5 lux (F1.4, shutter speed 1/30 sec., SSC off, 50IRE).

Server

  • Video Compression: JPEG, H.264.
  • Video Size: JPEG, H.264: 1920 x 1080, 960 x 540, 480 x 270 1280 x 720, 640 x 360, 320 x 180 1280 x 960, 640 x 480, 320 x 240.
  • Video Quality: JPEG, H.264: 10 levels.
  • Audio Compression Method: G.711 μ-law (64 kbps).
  • Audio Communication Method: Full-duplex (two-way)/half-duplex (One-way communication) RTP, Sound Transfer Protocol by Canon.

Interface

  • Network Terminal:  LAN x 1 (RJ45, 100Base-TX (auto/full-duplex/half-duplex)).
  • Audio Output Terminal (LINE OUT): Φ3.5 mm (Φ0.14 in.) mini-jack connector (monaural) LINE OUT (connect to an amplifier speaker).
  • External Device I/O: Input x 1, Output x 1.

Other

  • Operating Environment:
  • Humidity 5% – 85% (without condensation).
  • Temperature -10°C – +50°C (+14°F – +122°F).
  • Installation: With use of mounting pole (third party product).
  • Power Supply: PoE function : PoE power supply via LAN connector (IEEE802.3af compliant).

Më shumë informacion

Lens 2.25 - 7.88 mm F1.4 - F2.6 Autofocus 3.5x optical, 4x digital zoom
Image sensor Progressive scan CMOS 1/4.85"
Horizontal field of view 78.6deg - 20.8deg
Max. video resolution (pixels) 1920x1080
Day and night Yes
Min. illumination (lux) 0.95 (Color) 0.5 (B/W)
Power PoE IEEE 802.3at Type 2
Audio support Two-way
Pan/Tilt/Zoom Digital PTZ
Frames per second (50/60 Hz) 30
Other ONVIF Profile S, Memory card slot
