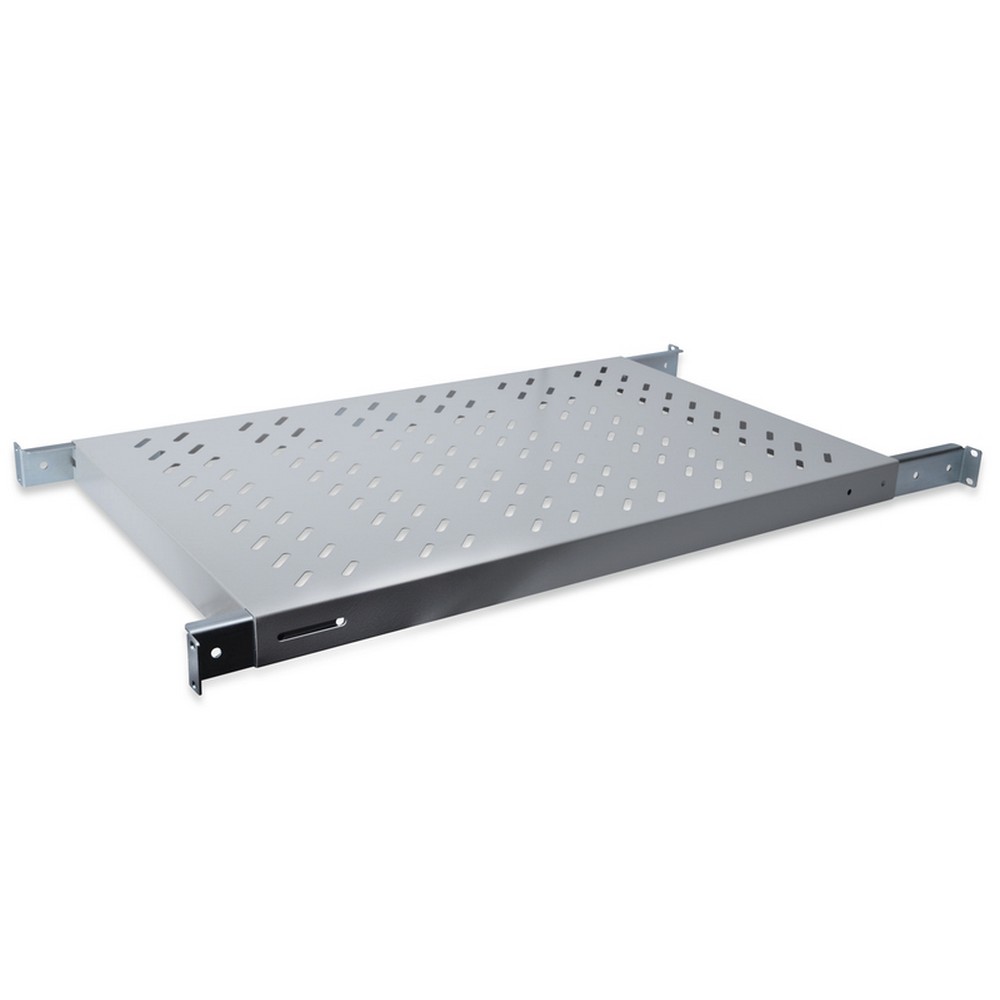

1U fixed shelf, for 1000 mm depth cabinets adjustable, 700 mm depth, color grey (RAL 7035)

The shelves for fixed mounting can be installed easy on the four 483 mm (19“) profile rails of your 483 mm (19“) network- or server cabinet. Due to their stable, perforated steel sheet with a load capacity of 50 kg, they are the optimal surface for components which are not 483 mm (19”) suitable. The front fixing rails are already mounted to the shelf body and can be adjusted by 50 mm if needed. The rear fixing rails can be adjusted in a certain area (please check the dimensions in the chart below).

KEY FEATURES

• For fixed mounting on the four 483 mm (19“) profile rails.
• Front mounting rails are already mounted to the shelf body (can be adjusted up to 50 mm).
• Rear mounting rails are variable in depth (see chart below).
• Sturdy, perforated steel sheet.
• Load capacity up to 50 kg.
• Delivery inclusive fixing material.
• Available in color grey (RAL 7035) and black (RAL 9005).

Datasheet
