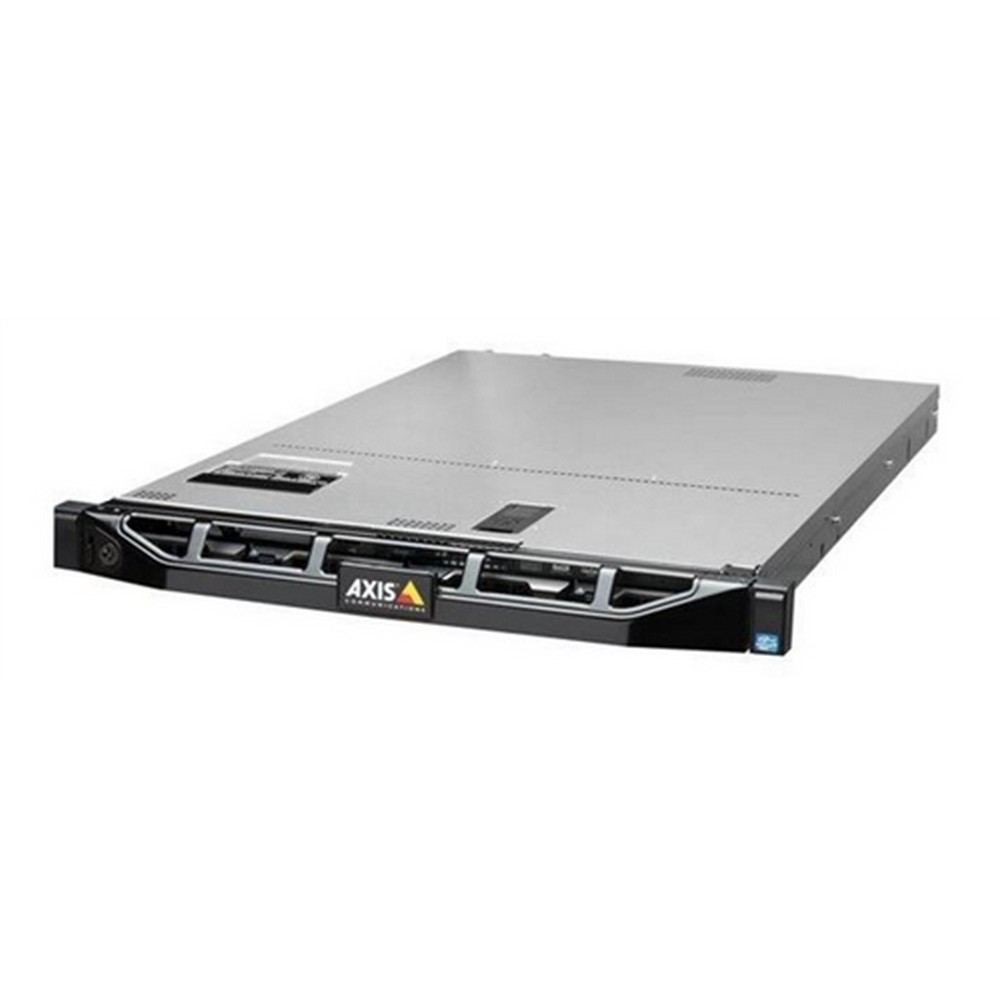

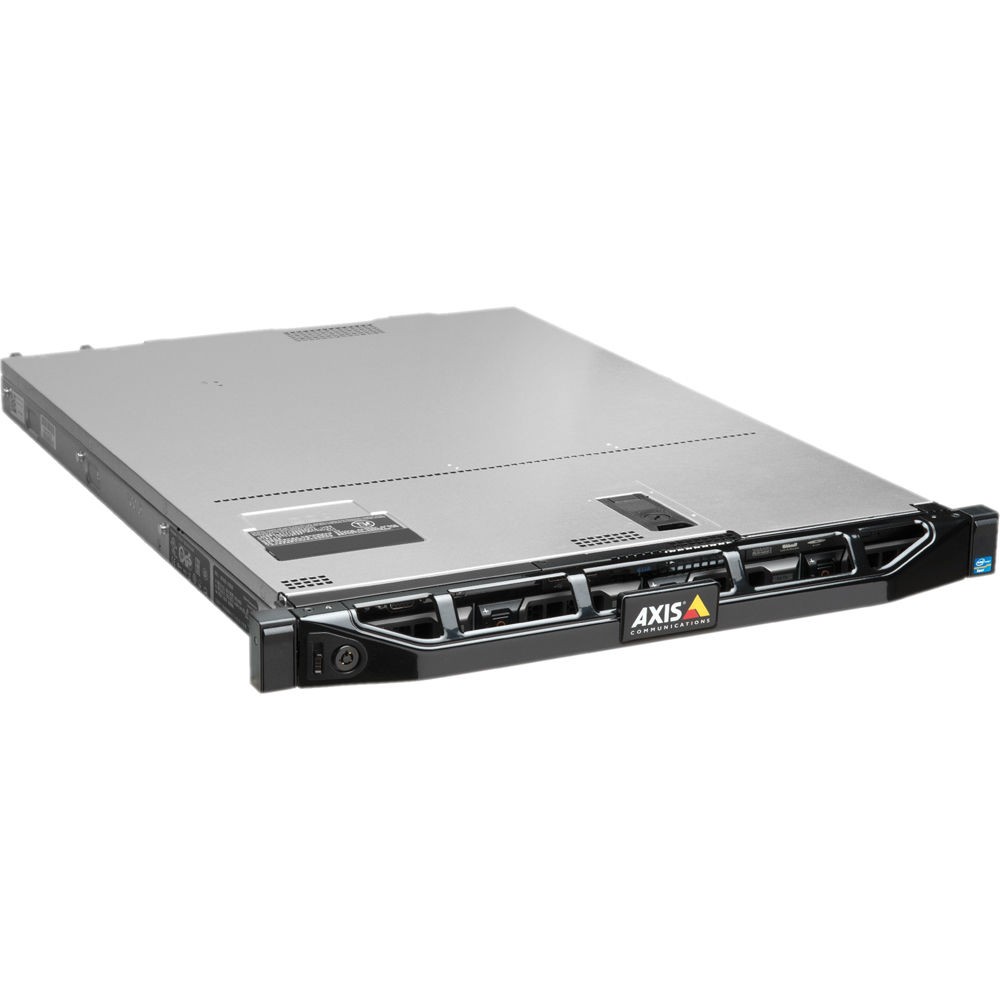

Name: AXIS Camera Station S1032 Mk II Recorder
Availability: OutOfStock

SKU: CP0000004572 SKU e prodhuesit: 0202-830 Kategori: Audio / Video, Video Surveillance Brand: Axis Communication

NETWORK VIDEO RECORDERS

AXIS Camera Station S1032 Recorder is an out-of-the-box ready rack server validated for reliable high-definition surveillance up to 4K. It is preloaded with AXIS Camera Station video management software with universal licenses for 32 channels and other necessary system software. It is preconfigured to minimize installation time. AXIS S1032 has validated hardware components, redundant hard disks and power supplies and includes three-year hardware warranty with on-site replacement service. AXIS Camera Station offers an intuitive user interface and allows users to take full advantage of Axis’ wide range of video surveillance cameras and other IP products. It also supports integration of third party IP cameras.

KEY FEATURES

Ease of installation.
Validated with extensive support.
High-definition surveillance up to 4K.
AXIS Camera Station included.
Full compatibility with Axis’ products.

Datasheet

Përshkrimi

Out-of-the-box ready

AXIS S1032 Mk II is designed for quick installation in server rooms. The recorder is preloaded with AXIS Camera Station video management software, 32-channel licenses and other necessary system software.

Maximum reliability

Hardware components such as hard-discs and graphic card as well as storage capacity are optimized to meet the demands for reliable high definition surveillance.

First-class support

Support for multi-vendor solutions can be challenging when it comes to troubleshooting and product warranties. With Axis as the single point of contact, you can feel confident that any problem that may arise will be handled quickly and efficiently. Our team of over 100 highly experienced Technical Support engineers world-wide can provide you expert assistance wherever you are, whenever you need it.

AXIS Camera Station for effective surveillance

AXIS Camera Station offers an intuitive user interface providing all necessary features for effective surveillance such as flexible live-view layout, site maps, powerful event configuration, efficient alarm management and responsive PTZ control.

TECHNICAL SPECIFICATIONS

Licenses: 32 AXIS Camera Station universal licenses included, can be upgraded up to 48 licenses (sold separately).
Processor: Intel® Xeon® E3-1220 v5, 3.0GHz, 8MB Cache, 4C/4T, turbo (80W).
Memory: UDIMM 2133 MT/s, ECC, 2x4GB (8192MB).
Storage: 16 TB (4×4 TB) Enterprise Class HDD (12 TB usable space after RAID), 7200 rpm, SATA 6Gb/s, RAID 5 RAID Controller: PERC H730, 1GB. NV Cache.
Operating system: Microsoft Windows 10 IoT Enterprise.
Video streaming: Not intended for local viewing of video. Recommended to use AXIS S9001 or AXIS S9002.
Recording: Qualified for recording up to 48 video channels with a total recording rate up to 384 Mbit per second.

GENERAL

Power: Max 350 W, 100 V AC to 240 V AC.
Connectors: 1xUSB 2.0, 2xUSB 3.0, 2xVGA, Serial port (DB9), 2xEthernet (RJ45), 2xPower inlet.
Operating conditions: 5 °C to 40 °C (41 °F to 104°F).
Storage conditions: -40 °C to 65 °C (-40 °F to 149 °F).
Approvals: EN/IEC/UL 60950-1, FCC part 15, class A, VCCI class A, EN 55022, class A, ICES-003/NMB-003 Class A, KCC KN22 Class A, KN-24, EN 55024, EN/IEC 61000-3-2, EN/IEC 61000-3-3.
Dimensions: 43 x 483 x 610 mm (1.69 x 19 x 24 in), 1U Chassi .
Weight: 14 kg (31 lb).

Më shumë informacion

Storage	4x 4TB (12TB usable space after RAID)
Memory	2x 4GB
Number of channels and licenses	32 (Upgradable to 48)
Recording	48 Channels 384 Mbit/s
Supported monitors	Complete with Desktop Terminal
Connectors	1x USB 2.0, 2x USB 3.0, 2x VGA, Serial port, 2x Ethernet, 2x Power inlet
Power	Max: 350 W, 100 to 240 V AC
