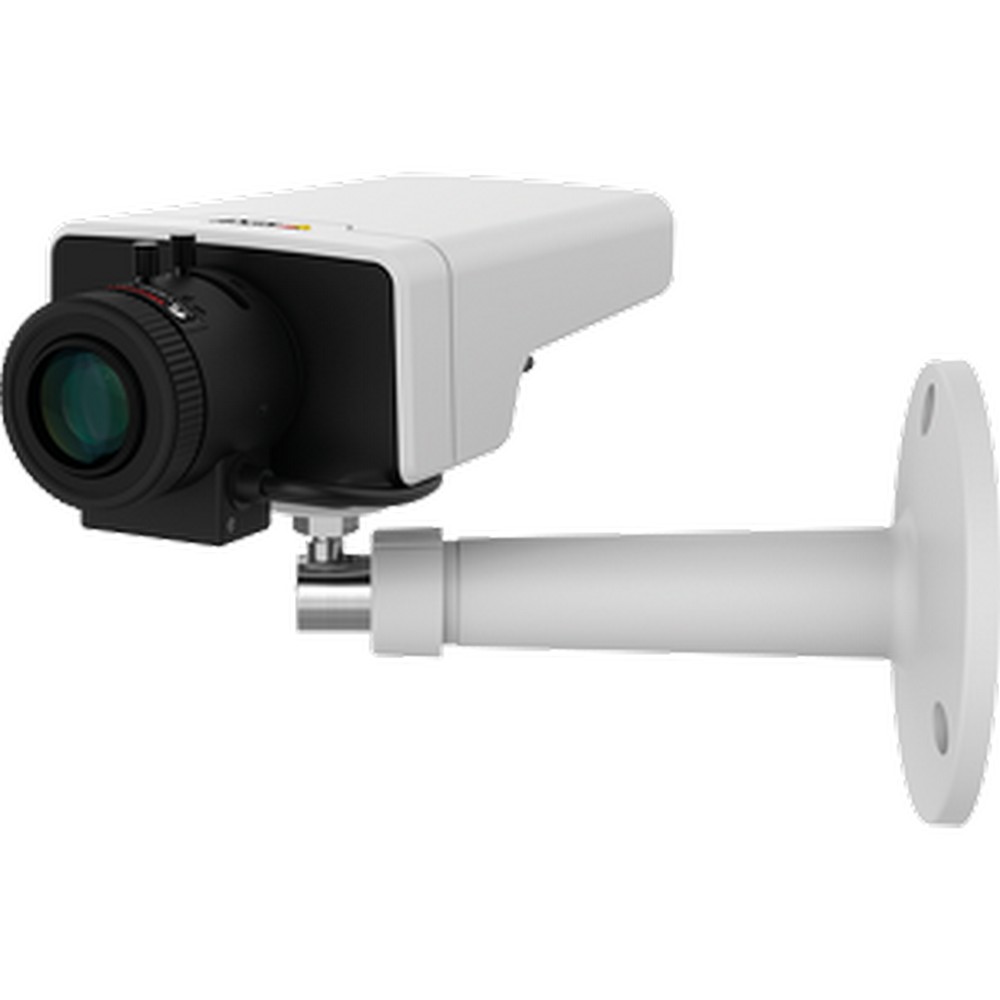

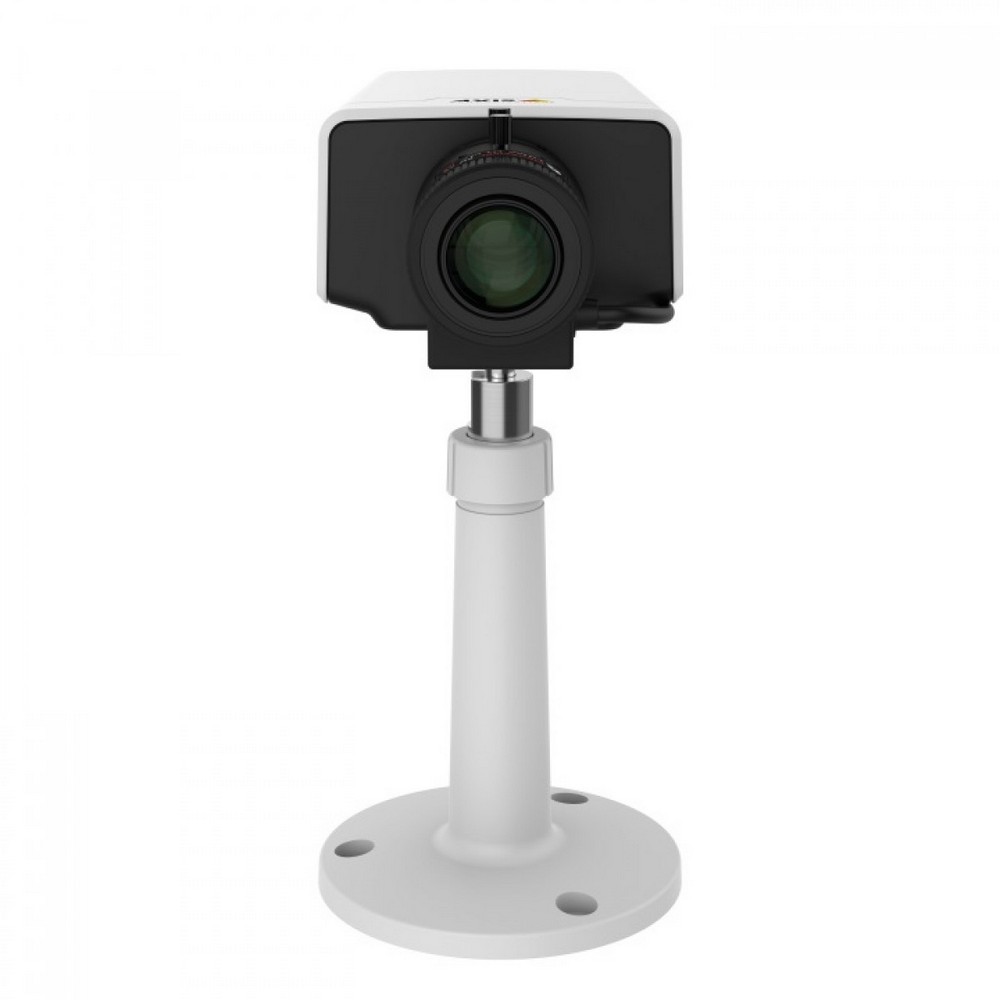

AXIS M1124

Përshkrimi

• Images optimized for forensic analysis

Supporting WDR – Forensic Capture capability, the video is highly optimized for forensic purposes and provides extreme levels of detail – even in scenes with very complex light conditions.

• More video, less storage

AXIS M1125 incorporates Axis Zipstream technology, which is a radically more efficient H.264 implementation, lowering bandwidth and storage requirements by an average 50% or more for many common 24/7 surveillance use cases.

Technical Specifications

Camera

• Image sensor: Progressive scan RGB CMOS 1/3″.
• Lens: Varifocal, IR corrected, CS-mount, DC-iris, 3-10.5 mm Horizontal field of view: 91°–32° Vertical field of view: 49°–18°.
• Day and night: Automatically removable infrared-cut filter.
• Minimum illumination Color: 0.25 lux F1.4 B/W: 0.05 lux F1.4.
• Shutter time: 1/66500 to 1 s.

Video

• Video compression H.264 Baseline, Main and High profile (MPEG-4 Part 10/AVC) Motion JPEG.
• Resolutions: 1280×720 to 160×90.
• Frame rate: Up to 25/30 fps in all resolutions.
• Video streaming: Multiple, individually configurable streams in H.264 and Motion JPEG Axis Zipstream technology in H.264 Controllable frame rate and bandwidth, VBR/MBR H.264.

Network

• Security: Password protection, IP address filtering, HTTPSa encryption, IEEE 802.1Xa network access control, Digest authentication, User access log.
• Supported protocols: IPv4/v6, HTTP, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH.

General

• Casing: Polycarbonate blend Color: White NCS S 1002-B and Axis Black NCS S9000-N.
• Sustainability: PVC free PCB is bromine-free.
• Memory: 512 MB RAM, 256 MB Flash.
• Power: 8-28 V DC or Power over Ethernet (PoE) IEEE 802.3af Class 2, max 5.0 W, typical 3.6 W.
• Connectors RJ45 10BASE-T/100BASE-TX PoE Terminal block for one input and one output (12 V DC output, max. load 15 mA) DC input, terminal block.
• Storage: Support for microSD/microSDHC/microSDXC card SD card encryption Support for recording to network-attached storage (NAS).
