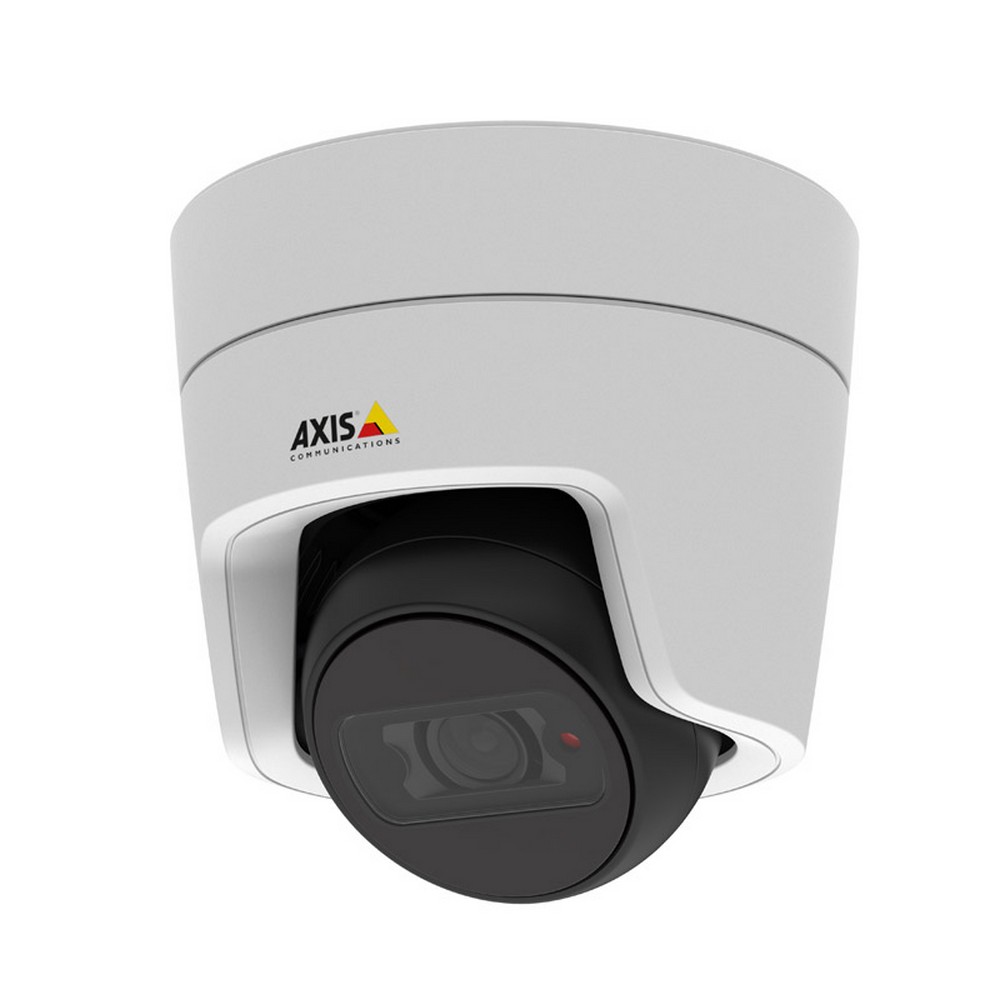

AXIS M3105-L Network Camera

SKU: CP0000004440 SKU e prodhuesit: 0867-001 Kategori: , , Brand:

Axis fixed dome cameras

Discreet HDTV 1080p video surveillance with built-in IR illumination

Day/night, compact mini dome with flat-faced design for indoor use. Built-in IR illumination and WDR – Forensic Capture. Fixed lens. Multiple, individually configurable H.264 and Motion JPEG streams; max HDTV 1080p resolution at 30 fps. Axis’ Zipstream technology for reduced bandwidth and storage needs.  Memory card slot for optional local video storage. Video motion detection and active tampering alarm. Power over Ethernet. Midspan not included.

Key features :

  • Delivers full HD 1080p resolution at 25 frames per second for high quality surveillance
  • True day/night functionality with integrated IR-cut filter enables 24 hour monitoring of indoor areas
  • Long life, built-in infrared LED illuminates up to a distance of 15m
  • Light reflections are reduced with the unit’s flat-faced design – helping to improve image capture in low light
  • WDR – Forensic Capture improves visibility and ensures the capture of details in high contrast scenes
  • Axis Corridor Format optimises the field of view in narrow scenes – capturing only what is essential
  • Axis Companion software is free of charge and offers a simple video management solution for up to 16 cameras
  • Camera-based video motion detection and tampering alarms can be configured for enhanced security monitoring
  • Integrated MicroSD card provides edge storage and allows the camera to be used as a standalone unit
  • PoE supplies the camera with both power and network connectivity via a single cable – simplifying installation
  • 3-axis mount design enables easy manual adjustment of the lens for quick set up
  • Axis’ Zipstream technology lowers bandwidth by analysing and optimising the video stream in real time

Typical applications

The Axis M3105-L mini-dome delivers high-quality HD 1080p resolution and is ideal for users requiring a simple CCTV surveillance solution. This compact unit is a suitable choice for locations such as independent retail stores, GP surgeries and restaurants.

Datasheet

Out of stock

Përshkrimi

Key technical features of the Axis M3105-L

Camera
Environment: Indoor
Type: fixed mini dome
Sensor: 1/2.8” progressive scan RGB CMOS
Lens: M12 mount, fixed iris, fixed focus, 2.8 mm, F2.0, horizontal field of view: 115°
Audio: not given
Power: Power-over-Ethernet IEEE 802.3af/802.3at Type 1 Class 2, typical: 4.2 W, max: 6.2 W
Memory: 512 MB RAM, 256 MB Flash
Video
Resolution: (1920 x 1080) to (176 x 120)
Compression: H.264 (MPEG-4 Part 10/AVC), Main, Baseline and High Profiles, Motion JPEG
Frame-rate: 25 fps
Bandwidth control: multiple, individually configurable streams in H.264 and Motion JPEG, controllable frame rate and bandwidth, Axis’ Zipstream technology in H.264, VBR/MBR H.264
Day/night: automatically removable infrared-cut filter
Minimum illumination: colour: 0.2 lux, b/w: 0.04 lux, 0 lux with IR illumination on, IR illumination: 15m
Digital zoom/PTZ yes
Video overlay: text and image
Imaging: compression, colour, brightness, sharpness, contrast, white balance, exposure control, backlight compensation, wide dynamic range – Forensic Capture, rotation: 0°, 90°, 180°, 270°, mirroring of images, including Corridor Format
Viewing, detection & recording
Privacy masking: yes
Number of users: not given
External alarm inputs and outputs not given
Alarm detection: AXIS Video Motion Detection 3, Active tampering alarm, support for AXIS Camera Application Platform enabling installation of AXIS Cross Line Detection and third-party applications
Alarm action: notification: email, HTTP, HTTPS and TCP and SNMP trap, video recording to edge storage, send video clip, overlay text
Pre-/post-alarm buffer: yes
On-camera recording: MicroSD/microSDHC/microSDXC slot supporting memory card up to 64 GB (card not included), support for recording to dedicated network-attached storage (NAS)
Recording software supported: Axis Companion Software, Axis Camera Station
Connections
Power: Power over Ethernet IEEE 802.3af/802.3at Type 1 Class 2
Network: RJ45 10BASE-T/100BASE-TX PoE, max. 6.2W
Alarm I/O not given
Other
Dimensions: Ø100mm x 85mm
Weight: 0.36kg
Casing: colour: white, IP42 water- and dust-resistant
Warranty: 3 year
Mounting methods: ceiling, wall
Operating temperatures: 0°C to 50°C
Power consumption: max. 6.2W
Dynamic DNS: yes
Protocols supported: IPv4/v6, HTTP, HTTPSa, SSL/TLSa, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH
QoS: yes
Security: password protection, IP address filtering, HTTPSb encryption, IEEE 802.1Xb network access control, digest authentication, user access log
ONVIF compliant: yes, profile S



Më shumë informacion

Day and night mode Yes
Max. video resolution 1920x1080
Environment Indoor
Max. frames per second 25/30
PoE Yes
Lens Type Fixed
Signal Process IP
