Name: AXIS P1264 Network Camera
Availability: OutOfStock

SKU: CP0000004382 SKU e prodhuesit: 0925-001 Kategori: Audio / Video, Cameras, Video Surveillance, Environment Monitoring Brand: Axis Communication

Axis modular cameras

Cost-effective, extremely discreet pinhole camera

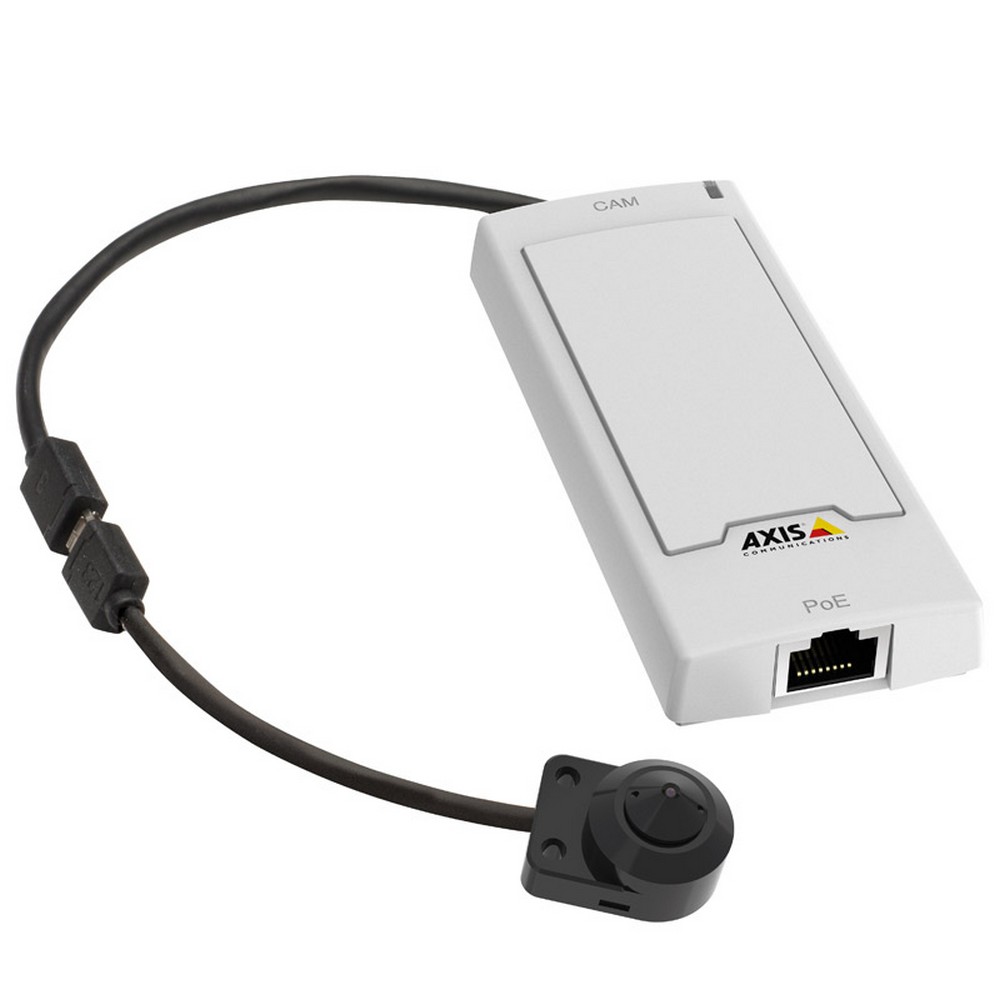

AXIS P1264 Network Camera is a modular camera based on a small-sized main unit (AXIS P12 Mk II) and AXIS F1004 Pinhole Sensor Unit that is designed for extremely discreet indoor installations. The camera provides HDTV 720p resolution and 57° horizontal FoV. Supports multiple streams in H.264 and Motion JPEG, Axis’ Zipstream technology for lower bandwidth and storage needs, and edge storage using microSD card or NAS. The main unit is powered with PoE. The sensor unit has a pigtail with a detachable cable (8 m/26 ft.) for easy installation and maintenance. Bracket included for mounting behind thin metal, plastic or glass panel.

Key features

Modular IP camera consists of the Axis P12 Mk II unit and ultra discreet pinhole sensor unit
Delivers HD 720p resolution at 25 frames per second for high quality surveillance
Compact pinhole sensor unit can be installed in very tight spaces – providing an ideal a covert monitoring solution
Main unit can be separated by a distance of up to 8m from the sensor unit with the detachable cable
Wide dynamic range helps capture more detail in high contrast scenes
Axis Corridor Format vertically orientates the video stream – allowing the field of view to be optimised for monitoring narrow areas
Systems with up to 16 IP cameras can be easily managed with the Axis Companion PC client or mobile app
Video motion detection and tampering alarms can be used to trigger recordings and alert users of possible incidents
Axis Zipstream technology lowers bandwidth and storage by retaining important image details and removing unnecessary data
Support for recording to MicroSD allows the camera to be used as a standalone unit
PoE allows the camera to receive power and network connectivity over a single cable, reducing costs and installation time

Typical applications

The Axis P1264 modular IP camera delivers high quality HD 720p resolution and offers a highly discreet surveillance solution. Typical applications include ATM machines and cash handling areas such as bank teller and cashier desks.

Datasheet

Përshkrimi

Key technical features of the Axis P1264

Camera
Environment:	indoor
Type:	fixed modular IP camera, Axis P12 Mk II and Axis F1004 pinhole sensor
Sensor:	1/4” (effective) progressive scan RGB CMOS
Lens:	fixed iris, 3.7 mm, F2.5: 57° horizontal angle of view, 31° vertical angle of view
PTZ:	not given
Memory:	512 MB RAM, 256 MB Flash
Power:	Power over Ethernet IEEE 802.3af/802.3at, type 1, class 2, max 4.0W, typical 2.5W
Audio:	not given
Video
Resolution:	(1280 x 720) to (480 x 270)
Compression:	H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles Motion JPEG
Frame-rate:	25 fps
Bandwidth control:	multiple, individually configurable streams in H.264 (Main, Baseline and High Profiles) and Motion JPEG, controllable frame rate and bandwidth, VBR/MBR H.264, Axis’ Zipstream technology in H.264
Video overlay:	text and image
Day/night:	not given
Minimum illumination:	colour: 0.4 lux
Imaging:	compression, colour, brightness, sharpness, contrast, white balance, exposure value, exposure control, exposure zones, local contrast, rotation, Axis Corridor Format, mirroring of images, Wide Dynamic Range
Viewing, detection & recording
Privacy masking:	yes
Number of users:	not given
Alarm detection:	Axis Video Motion Detection 3, active tampering alarm, support for Axis Camera Application Platform enabling installation of Axis Cross Line Detection and third-party applications
Alarm action:	file upload: email, FTP, HTTP, HTTPS, network share, notification: email, HTTP, HTTPS and TCP, send SNMP trap, WDR mode
Pre-/post-alarm buffer:	yes
On-camera recording:	support for microSD/microSDHC/microSDXC card up to 64 GB
Direct-to-NAS storage:	yes
Recording software supported:	Axis Camera Station, Axis Companion software
Connections
Network:	female RJ45 for 10BASE-T/100BASE-TX PoE, RJ12 for sensor unit
Audio:	not given
Alarm I/O:	not given
Video:	not given
Other
Dimensions:	Axis P12 Mk II main unit: 16.5 x 46 x 109 mm, Axis F1004 pinhole sensor: 27 x 20 x 18 mm, sensor unit cable: 8 m
Weight:	Axis P12 Mk II main unit: 72 g, Axis F1004 pinhole sensor: 14 g, sensor unit cable: 128 g
Warranty:	3 years
Mounting methods:	included base plate for wall or ceiling mounting
Operating temperatures:	–20°C to 50°C
Power consumption:	max. 4W
Dynamic DNS:	yes
Protocols supported:	IPv4/v6, HTTP, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH
QoS:	yes
Security:	user authentication, watermark, IP address filtering, anonymous access, reset
ONVIF compliant:	yes

Më shumë informacion

Max. video resolution	1280x720
Environment	Indoor
Max. frames per second	25/30
Compression Type	MULTIPLE COMPRESSION TYPES
Signal Process	IP
PoE	YES
