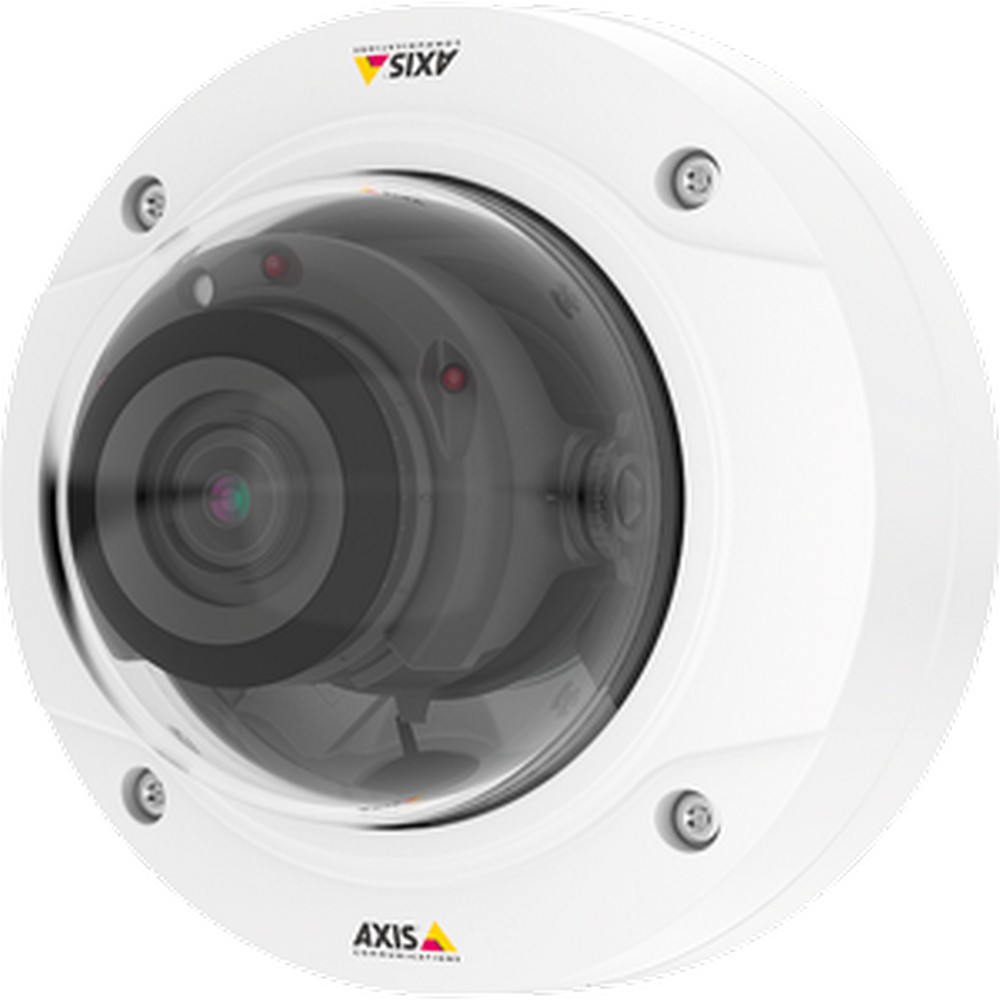

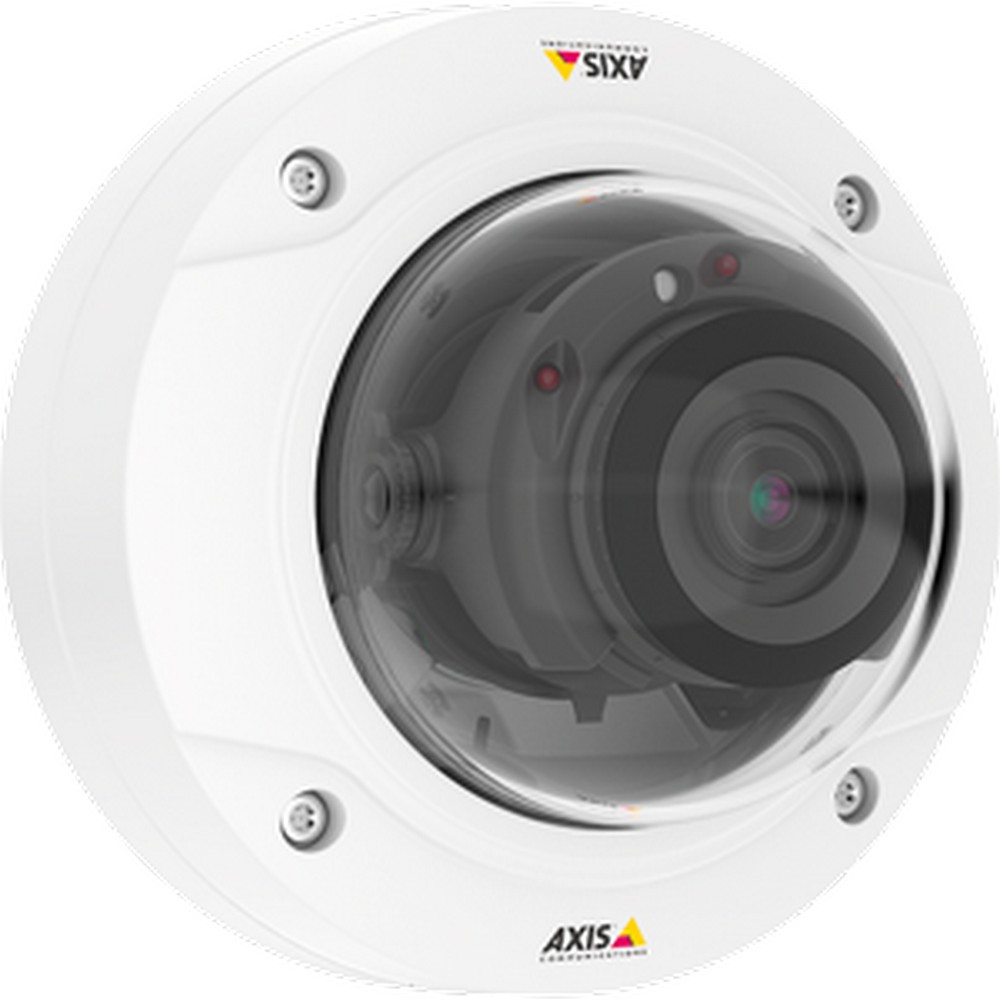

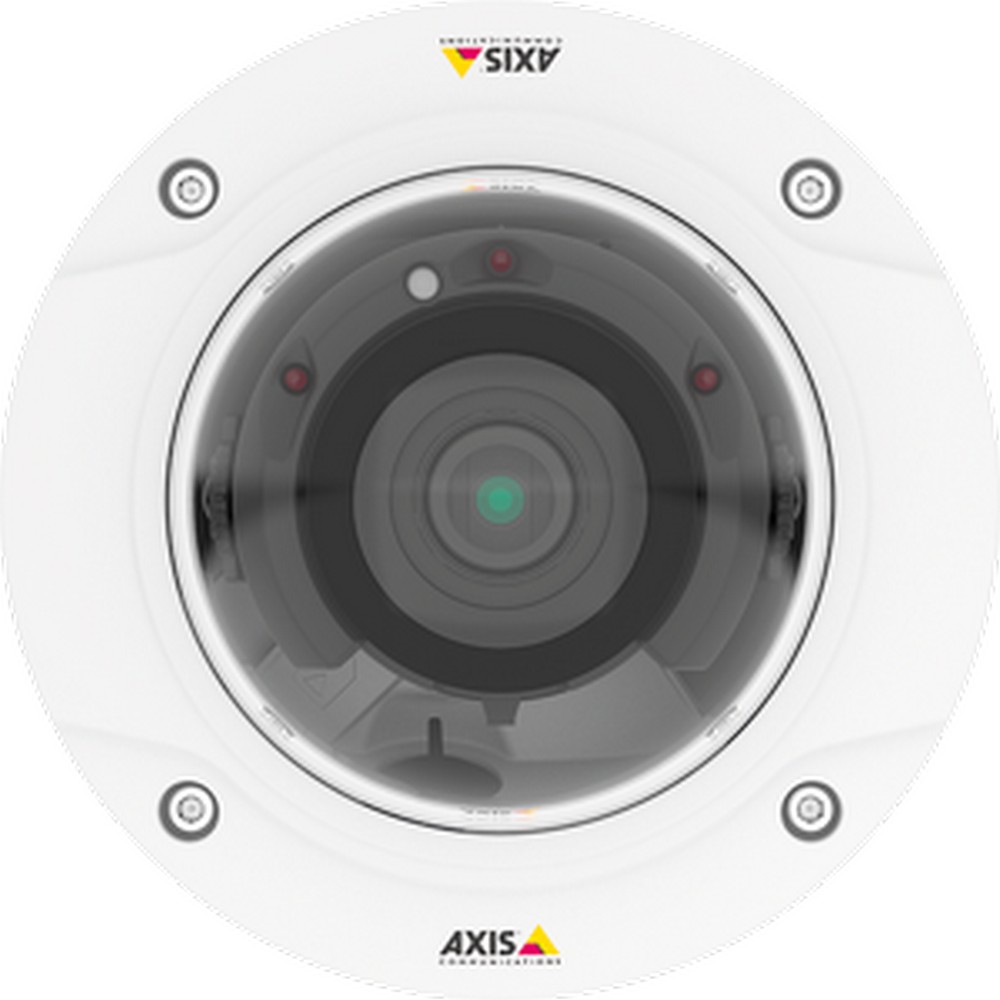

AXIS P3228-LVE

Përshkrimi

• Night as clear as day

Do you need to positively and reliably identify people, vehicles or other objects during low light surveillance?  This 4K-resolution camera captures detail in life-like color even in low light conditions. And while higher resolution doesn’t always mean better image quality, with AXIS P3228-LVE you’re guaranteed great quality video images every time.

• Easy to install. Affordable to run.

The attractively priced AXIS P3228-LVE is easy to install and simple to operate, allowing you to quickly adjust and focus the view, even from remote locations. Total costs are further reduced by Axis Zipstream technology, which preserves important details in high quality, while reducing storage and bandwidth by up to 50%.

• Always safe and secure

This weatherproof camera can be easily mounted on walls or junction boxes, and can withstand tough weather conditions and impacts. If you want to install the camera in easier-to-reach areas, you can still be confident it’s safe and secure thanks to its dust and IK-10 rated vandal-resistant casing. Even if the camera is tampered with, an alarm will immediately notify you of the incident so you don’t have to worry.

Technical Specifications

Camera

• Image sensor: Progressive scan RGB CMOS 1/2.5”.
• Lens:

• Remote zoom and focus, P-Iris control, IR corrected.
• Vertical field of view: 51°–22°.
• Horizontal field of view: 100°-38°.
• Varifocal, 3.5–10 mm, F1.7.

• Day and night: Automatically removable infrared-cut filter.
• Minimum illumination Color: 0.19 lux, F1.7 B/W: 0.04 lux, F1.7, 0 lux with IR illumination on
• Shutter time: 1/62500 s to 2 s
• Camera angle adjustment: Pan ±180°, tilt -40 to +75°, rotation ±95°:

Video

• Video compression: H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles Motion JPEG.
• Resolution: 3840×2160 to 160×90.
• Frame rate: 25/30 fps with power line frequency 50/60 Hz.
• Video streaming:

• Multiple, individually configurable streams in H.264 and Motion JPEG.
• Axis Zipstream technology in H.264.
• Controllable frame rate and bandwidth VBR/MBR H.264.

Network

• Security Password protection, IP address filtering, HTTPSa encryption, IEEE 802.1Xa network access control, digest authentication, user access log, centralized certificate management.
• Supported protocols IPv4/v6, HTTP, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH.

General

• Casing: IP66- and NEMA 4X-rated, IK10 impact-resistant casing with hard-coated dome and dehumidifying membrane Encapsulated electronics and captive screws Color: white NCS S 1002-B For repainting instructions of skin cover or casing and impact on warranty, contact your Axis partner.
• Sustainability: PVC free.
• Memory: 1 GB RAM, 512 MB Flash.
• Power: Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3, max 11.5 W, typical 8.6 W.
• Connectors: RJ45 10BASE-T/100BASE-TX PoE.
• IR illumination: OptimizedIR with power-efficient, long-life 850 nm IR LEDs. Range of reach 30 m (100 ft) or more depending on the scene.
