Name: AXIS P3365-V Network Camera
Availability: OutOfStock

SKU: CP0000004414 SKU e prodhuesit: 0586-001 Kategori: Audio / Video, Cameras, Video Surveillance, Environment Monitoring Brand: Axis Communication

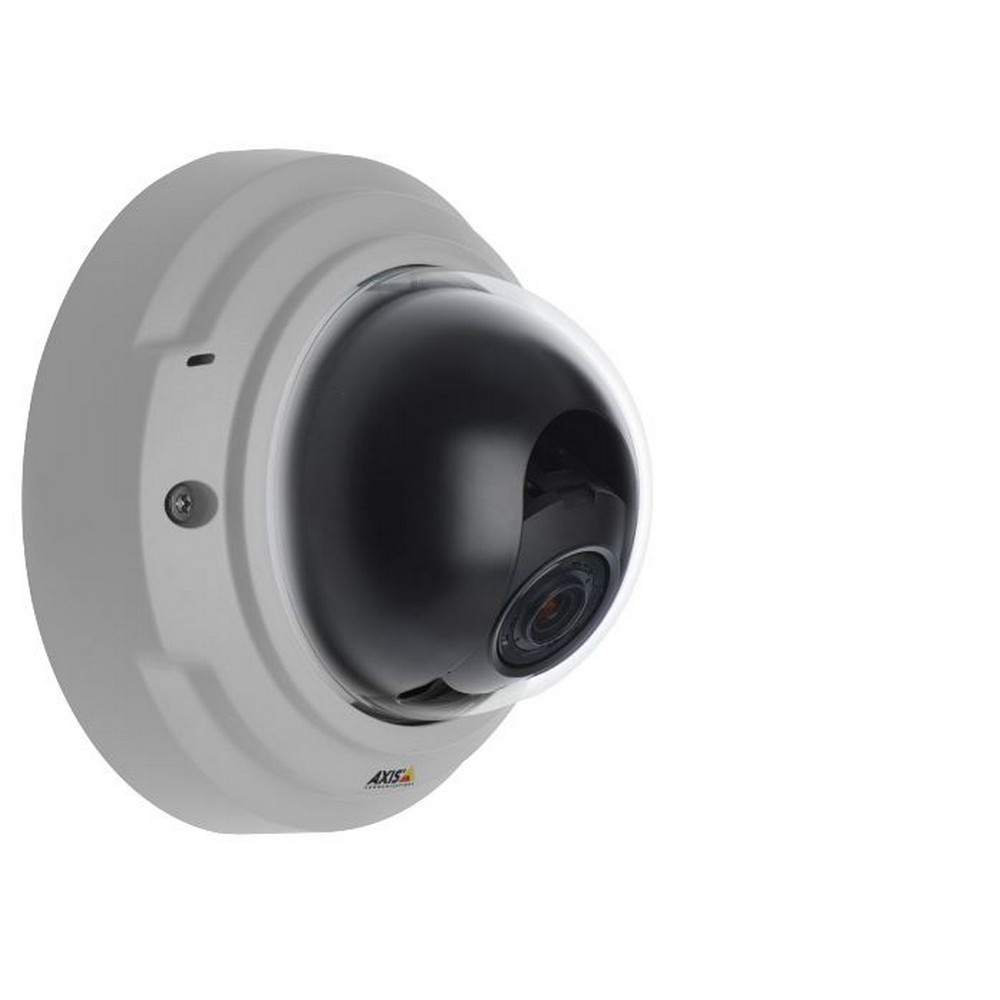

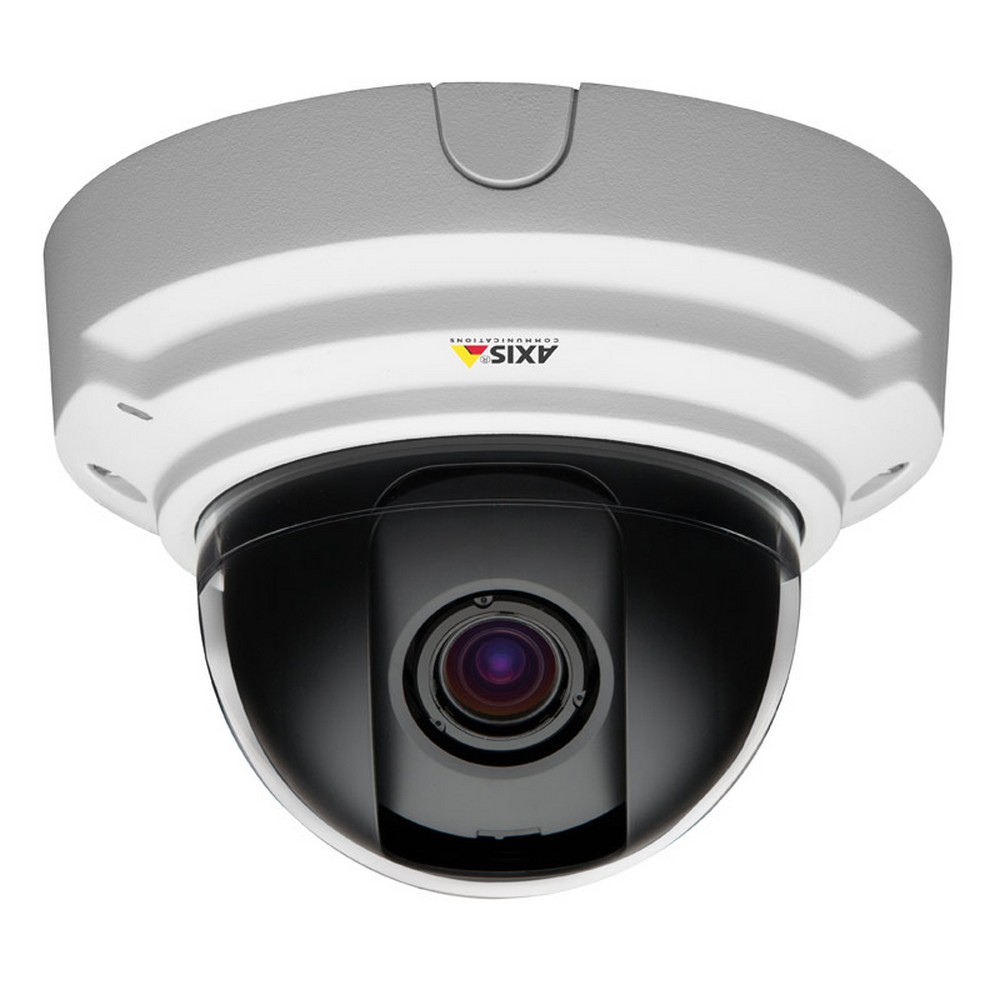

Axis fixed dome cameras

Wide-angle and vandal-resistant with remote zoom and focus

Day/night fixed dome with discreet, vandal-resistant indoor casing. Varifocal 3-9 mm P-Iris lens, remote focus and zoom. Multiple, individually configurable H.264 and Motion JPEG streams; max full HDTV 1080p/2MP resolution at 30 fps. WDR – dynamic contrast. Video motion detection and active tampering alarm. Two-way audio and audio detection. I/O for alarm/event handling. SD/SDHC memory card slot for optional local video storage. Power over Ethernet. Midspan not included. Includes smoked and clear transparent covers.

Key features & benefits

HD 1080p capability at full frame rate (30 fps) delivers surveillance suitable for most general CCTV applications
100° viewing angle for wide scene capture in small spaces
IK10-rated impact-resistant casing protects the camera against vandalism attempts and the compact form factor is discreet
24-hour image capture with automatically removable IR-cut filter for true day/night functionality
Optimal image quality and depth of field with P-iris lens
Remote focus and zoom makes installation easier as adjustment is carried out across the network rather than manually
Multi-view streaming simultaneously streams full and cropped views
Full duplex audio support with built-in microphone enables audio capture and verbal warnings to be given through the camera when a speaker is connected (speaker not included)
External devices can be connected to the camera through I/O ports
Enhanced video motion, audio and tamper detection provides secure surveillance
H.264 and Motion JPEG streams can be provided simultaneously
Closer analysis of activity is possible using digital PTZ feature
Lower-cost installation with PoE
Built-in SD card slot (card not included) for local edge storage

Typical applications

With full frame rate HD 1080p, 24-hour image capture and a vandal-resistant casing, the Axis P3365-V dome network camera provides discreet and compact CCTV surveillance ideal for small indoor applications that require high quality footage at all times. Typical examples include exposed areas such as schools, museums, railway stations and retail stores.

Datasheet

Përshkrimi

Key technical features of Axis P3365-V

Camera
Environment:	indoor, vandal-resistant (IK10)
Type:	fixed dome
Sensor:	progressive scan RGB CMOS 1/2.8
Lens:	varifocal, remote focus and zoom, P-iris control, IR corrected, megapixel resolution, 3~9 mm, 100°~35° view, F1.3
Power:	Power over Ethernet IEEE 802.3af/802.3at type 1, class 2, max. 4.2 W
Memory:	256 MB RAM, 128 MB Flash
Audio:	two-way, built-in microphone (can be disabled), AAC LC 8/16 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, configurable bit rate, external microphone input or line input, line output
Video
Resolution:	1920×1080 to 160×90
Compression:	H.264 main and baseline profiles (MPEG-4 Part 10/AVC), Motion JPEG
Frame-rate:	25/30 fps with power line frequency 50/60 Hz
Bandwidth control:	multiple, individually configurable streams in H.264 and Motion JPEG controllable frame rate and bandwidth, VBR/CBR H.264
Day/night:	automatically removable infrared cut-filter
Minimum illumination:	colour: 0.2 lux, F1.2, B/W: 0.04 lux, F1.3
Digital zoom/PTZ	digital PTZ
Imaging:	compression, colour, brightness, sharpness, contrast, white balance, exposure control, exposure zones, backlight compensation, fine tuning of behaviour at low light, wide dynamic range – dynamic contrast, rotation: 0°, 90°, 180°, 270° including Corridor Format
Viewing, detection & recording
Privacy masking:	yes
Number of users:	not given
Alarm detection:	video motion detection, active tampering alarm, AXIS Camera Application Platform enabling installation of additional applications, audio detection, external output
Alarm action:	file upload: FTP, HTTP, email, notification: email, HTTP, TCP, video recording to edge storage, pre- and post-alarm video buffering, status LED activation, external output activation, video and audio recording to edge storage, external output activation, audio recording to edge storage, play audio clip
Pre-/post-alarm buffer:	yes
On-camera recording:	SD/SDHC/SDXC slot supporting memory cards with up to 64 GB of storage (not included), support for recording to dedicated network-attached storage (NAS)
Recording software supported:	Axis Camera Station
Connections
Power:	Power over Ethernet IEEE 802.3af/802.3at type 1, class 2
Network:	RJ45 10BASE-T/100BASE-TX PoE
SD card slot:	SD
Audio:	external microphone input or line input, line output, built-in microphone (can be disabled)
Other:	terminal block for 1 alarm input and 1 output, 3.5 mm mic/line in, 3.5 mm line out
Other
Dimensions:	148mm (D) x 104mm (H)
Weight:	0.73 kg
Casing:	IK10 impact-resistant casing with aluminium base, color: white NCS S 1002-B
Warranty:	3 years
Mounting methods:	ceiling, wall
Operating temperatures:	0°C to 50°C
Power consumption:	max. 4.2W
Dynamic DNS:	yes
Protocols supported:	IPv4/v6, HTTP, HTTPSa, SSL/TLSa, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP”, SNMP, v1/v2c/v3(MIB-II), DNS,,DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH
QoS:	yes
Security:	password protection, IP address filtering, HTTPS encryption, digest authentication, user access log
ONVIF compliant:	yes, profile S

Më shumë informacion

Max. frames per second	25/30
Max. video resolution	1920x1080
Environment	Indoor
Day and night	Yes
Included analytics	Audio detection
Lens Type	VARI-FOCAL
Signal Process	IP
PoE	Yes
Position Type	FIXED
