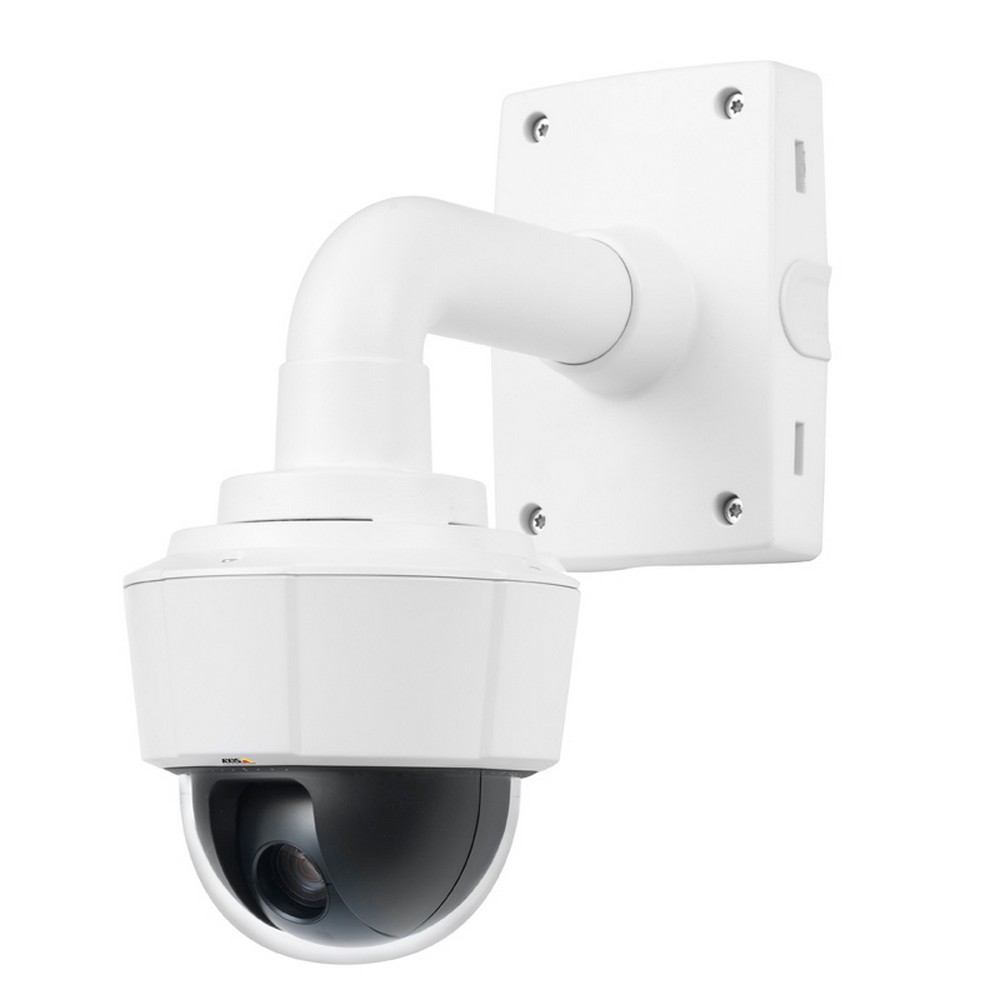

Name: AXIS P5515 PTZ Network Camera
Availability: OutOfStock

SKU: CP0000004474 SKU e prodhuesit: 0756-001 Kategori: Audio / Video, Cameras, Video Surveillance, Environment Monitoring Brand: Axis Communication

Axis pan/tilt/zoom cameras

Cost-effective, indoor PTZ camera

Compact PTZ camera, 360° pan with auto-flip, HDTV camera including 12x optical zoom, auto-iris, automatic day/night, and autofocus zoom lens. Up to 1080P (1920×1080) resolution at 25 fps frame rate. Simultaneous H.264 and Motion JPEG, standard IEEE 802.3af PoE (midspan not included), mounting kit for hard and drop ceiling, smoked and clear transparent cover. IP51 protection, SD-card slot, 4 I/O connections for alarm/event handling. Two-way, full duplex audio requires multi connection cable (not included)

Key features :

Pan (360°) / tilt (180°) / zoom (12x optical) movement allows for flexible viewing within a large field of view
10x digital zoom enables further in-depth examination of the image which can be used for identification
Capable of capturing HD 1080p resolution video at up to 30 fps, providing clear and reliable CCTV footage
Day/night functionality with automatic IR cut filter provides 24 hour surveillance of the scene
With the addition of an optional multi-connector (not included) support for two-way audio and audio detections are available
IP51-rated casing protects the camera from dust and dripping water, making it suitable for use in environments with emergency sprinkler systems
Integrated SD/SDHC card slot can record footage locally (card not supplied) providing a data back-up in the event of network failure
Power over Ethernet provides power and network connectivity through a single cable, reducing installation costs and simplifying cabling

Typical applications

The Axis P5515 network camera is suitable for indoor installations requiring a wide area to be monitored round the clock with a single unit. Typical applications include industrial warehouses, hotel receptions and large open plan offices.

Datasheet

Përshkrimi

Key technical features for Axis P5515

Camera
Environment:	indoor, IP51-rated
Type:	pan/tilt/zoom
Sensor:	1/2.3″ progressive scan CMOS
Lens:	3.8-42.9 mm, F1.4-2.1, horizontal angle of view: 59.2°-5.2°, autofocus, auto-iris
PTZ:	100 preset positions, pan: 360° (with auto-flip), 1.8°-100°/s, tilt: 180°, 1.8°-100°/s, 12x optical zoom, 10x digital zoom, total 120x zoom, limited guard tour, control queue, e-flip, auto-flip,
Audio:	two-way, AAC-LC 8/16 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, configurable bit rate (requires multi-connector cable, not included)
Power:	Power over Ethernet, AC, DC
Memory:	512 MB RAM, 256 MB Flash
Video
Resolution:	(1920 x 1080) to (320 x 180)
Compression:	H.264 (MPEG-4 Part 10/AVC) – Baseline, Main and High Profiles Motion JPEG
Frame-rate:	up to 30 fps in all resolutions
Bandwidth control:	multiple, individually configurable streams in H.264 and Motion JPEG; controllable frame rate and bandwidth; VBR/CBR H.264
Day/night:	automatically removable infrared-cut filter
Minimum illumination:	colour: 0.7 lux at 30 IRE F1.4, b/w: 0.08 lux at 30 IRE F1.4
Digital zoom/PTZ:	10x digital zoom
Video overlay:	text and image overlay
Imaging:	shutter speed – 1/80000 s to 1/25 s, compression, brightness, sharpness, white balance, exposure control, backlight compensation, WDR – dynamic contrast, fine tuning of behaviour at low light, rotation, aspect ratio correction, image freeze on PTZ
Viewing, detection & recording
Auto-flip:	e-flip, auto-flip
Privacy masking:	not given
Alarm detection:	video motion detection, Advanced Gatekeeper, AXIS Camera Application Platform, audio detection (with mutli-connector)
Alarm notifications:	file upload via FTP, SFTP, HTTP, HTTPS, network share and email, Notification: email, HTTP and TCP go to PTZ preset, run guard tour, record to local storage; pre- and post-alarm video buffering; external output; play audio clip
Recording triggers:	video motion detection, PTZ preset, temperature, memory card full, AXIS Camera Application Platform, external input, audio detection
On-camera recording:	SD/SDHC/SDXC card (not included), support for recording to dedicated network-attached storage (NAS)
Compatible recording platforms
Software:	Axis Camera Station
Connections
Power:	Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3, max. 12.95 W ,typical: 6.3 W 20-24 V AC, max. 22 VA, typical 11 VA 20-28 V DC, max. 13.5 W, typical 6 W
Network:	RJ45 10BASE-T/100BASE-TX via PoE
Alarm I/O:	4 configurable alarm inputs/outputs (requires multi-connector cable, not included)
Audio:	external microphone or line input, line output (requires multi-connector cable, not included)
Other
Dimensions:	∅118 x 158.2 mm
Weight:	1.1 kg (2.4 lb.); with drop-ceiling mount: 1.6 kg (3.5 lb.)
Colour:	White
Warranty:	three years
Mounting methods:	hard or drop ceiling mounting kit included
Operating temperatures:	0°C – 50° C (32°F – 122°F); humiditay 15 – 85% (non-condensing)
Power consumption:	IEEE 802.3af/802.3at Type 1 Class 3, max. 12.95 W
Dynamic DNS:	yes
Protocols supported:	IPv4/v6, HTTP, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH
QoS:	yes
Security:	password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, digest authentication, user access log
ONVIF compliant:	yes

Më shumë informacion

Environment	Indoor
Signal Process	IP
Max. video resolution	1920x1080
Day and night mode	Yes
Max. frames per second	25/30
PoE	Yes
