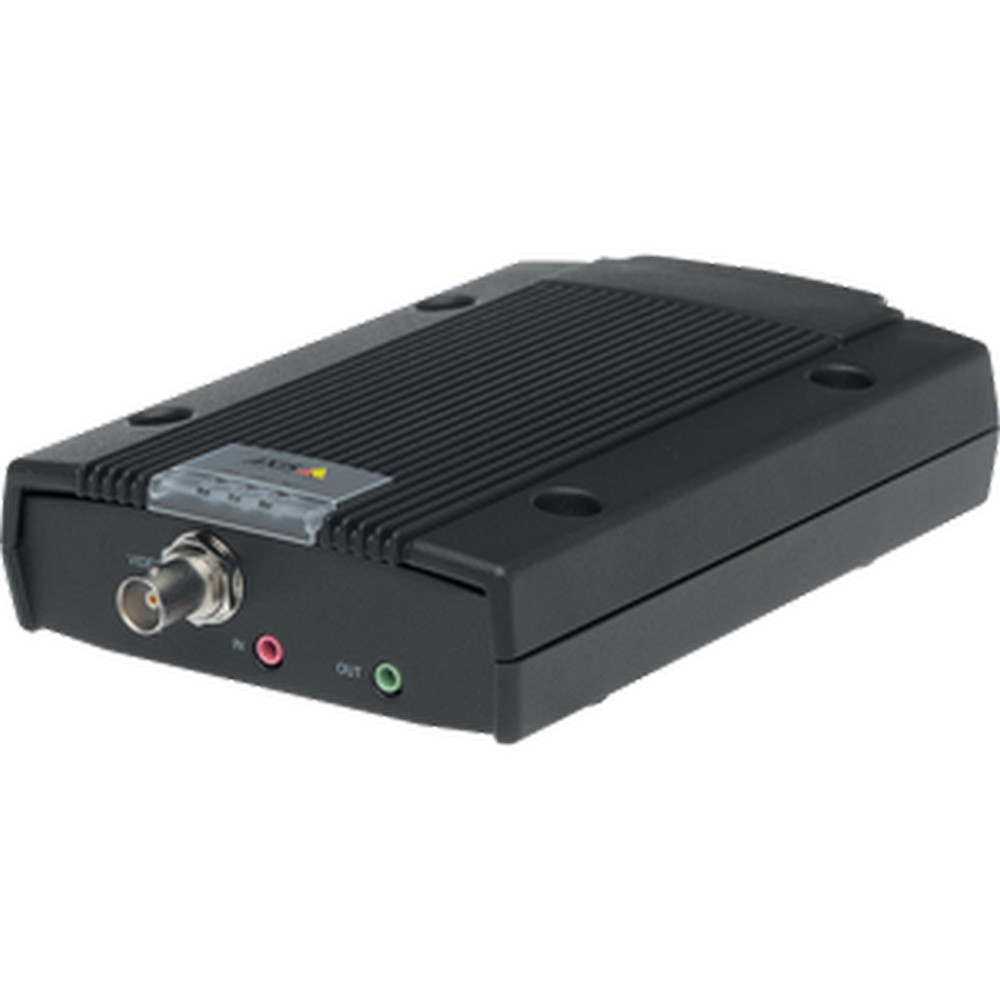

AXIS Q7411 Video Encoder

Përshkrimi

• Full-featured single channel solution

AXIS Q7411 is a powerful, full-featured video encoder solution offering 60/50 (NTSC/PAL) frames per second. The support for 60/50 fps provides smooth video in high motion scenes. This also enables the user to more closely follow details and changes in the monitored area, which is of major importance in forensic. work.

• Coax PTZ Control

AXIS Q7411 allows PTZ control over the coaxial cable, resulting in significant installation savings. In addition, the video encoder provides standard support for PTZ cameras using the serial ports.

• Outstanding video processing capabilities

The video encoder can deliver multiple, individually configurable video streams simultaneously at full frame rate in all resolutions up to D1 (720×480 in NTSC, 720×576 in PAL).

• Reduced bandwidth and storage needs

AXIS Q7411 offers the highly efficient H.264 video compression format both in Base and Main profile, with significant savings in bandwidth and storage. Motion JPEG is also supported for increased flexibility.

• Intelligent video capabilities

AXIS Q7411 offers intelligent capabilities such as motion detection, active tampering alarm and audio detection. Other features include two-way audio and microSD/microSDHC memory.

TECHNICAL SPECIFICATIONS

VIDEO

• Video compression: H.264 (MPEG-4 Part 10/AVC) Baseline and Main profile Motion JPEG.
• Resolutions: 176×120 to 720×576.
• Frame rate:

• 264: 60/50 (NTSC/PAL) fps in all resolutions.
• Motion JPEG: 60/50 (NTSC/PAL) fps in all resolutions.

• Video streaming:

• Multiple, individually configurable streams in H.264 and Motion JPEG.
• Controllable frame rate and bandwidth VBR/CBR H.264.

AUDIO

• Audio streaming: Two-way, full duplex and half duplex.
• Audio compression: AAC-LC 8/16 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Configurable bit rate.
• Audio input/output: External microphone or line input and line output.

NETWORK

• Security: Password protection, IP address filtering, HTTPSa encryption, IEEE 802.1Xa network access control, Digest authentication, User access log.
• Supported protocols: IPv4/v6, HTTP, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP™, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS.

GENERAL

• Casing: Aluminum casing Casing color: Black – NCS S 9000-N.
• Memory: 256 MB RAM, 128 MB Flash.
• Power: Power over Ethernet IEEE 802.3af Class 2 8–28 V DC input, max. 5.3 W.
• Connectors:

• Analog composite video BNC input
• RJ45 10BASE-T/100BASE-TX PoE.
• Terminal block for four configurable external inputs/outputs.
• Terminal block for RS485/RS422 (full duplex).
• 5 mm jack for microphone or line input (mono).
• 5 mm jack for audio output (mono).
