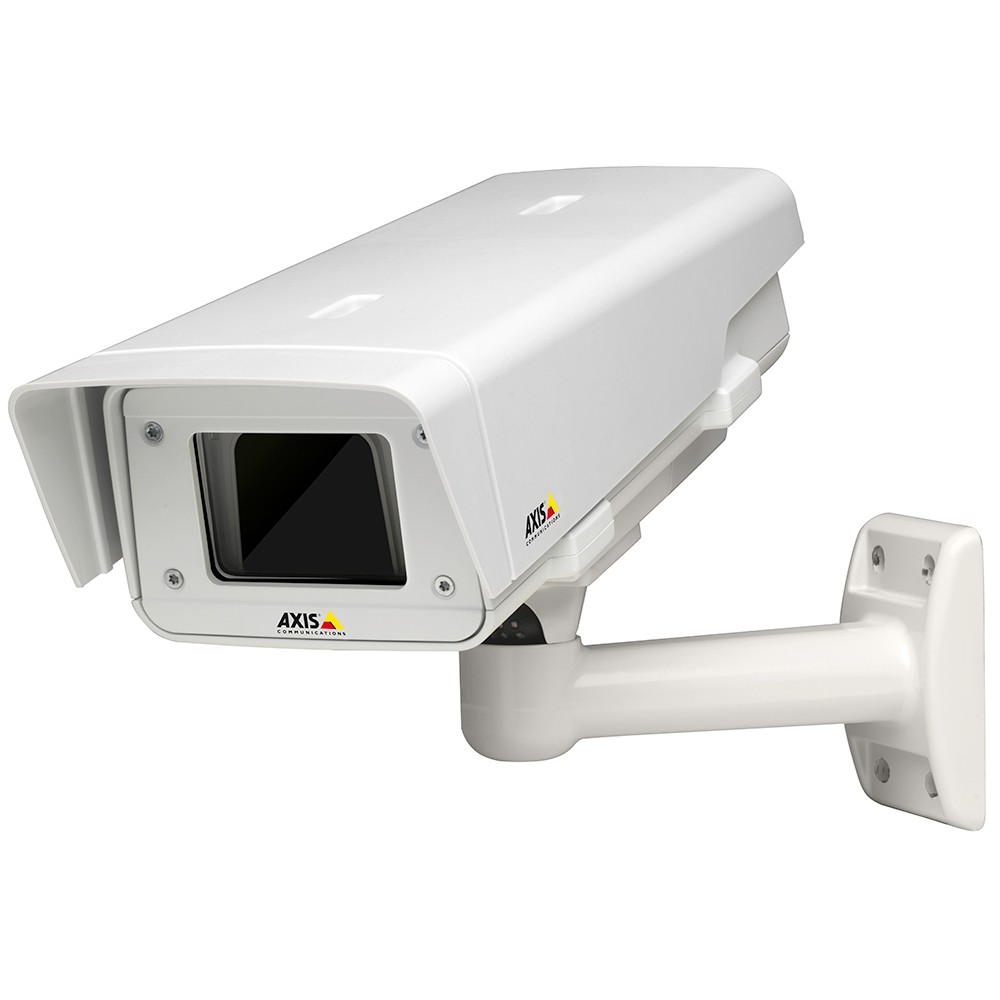

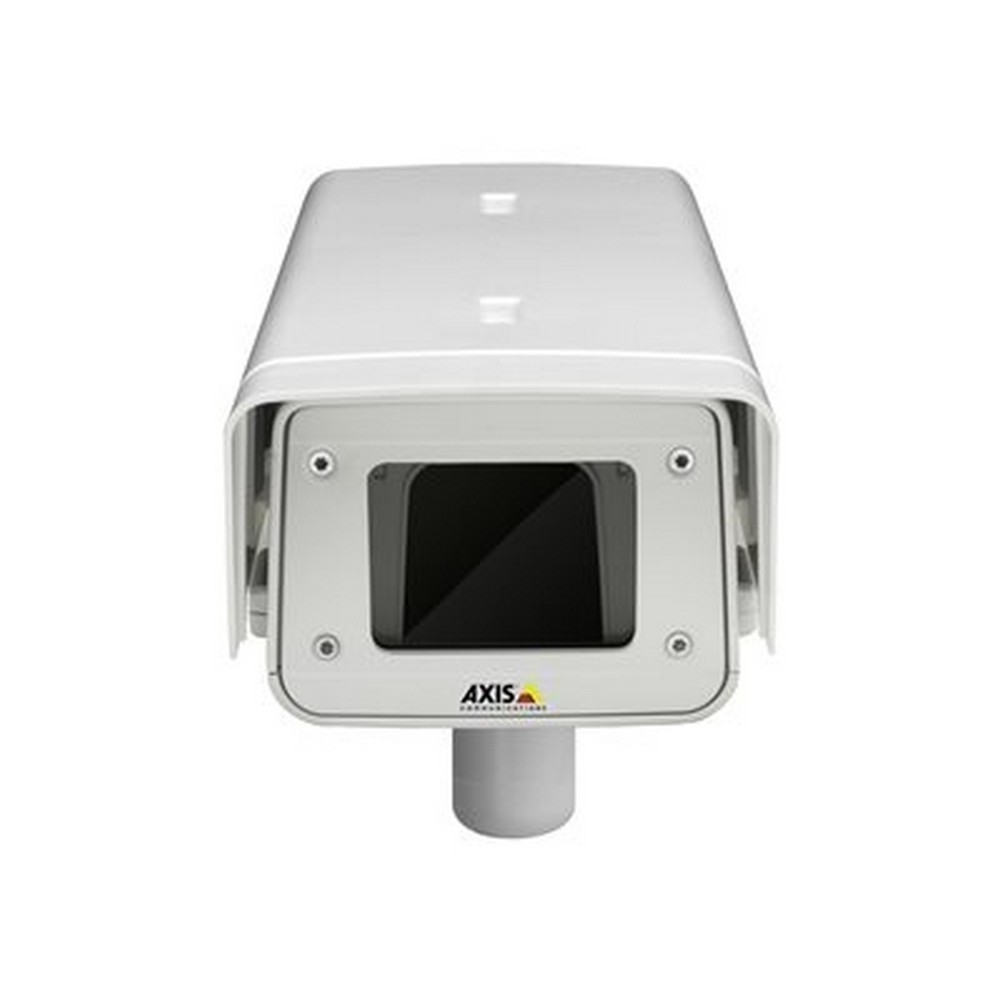

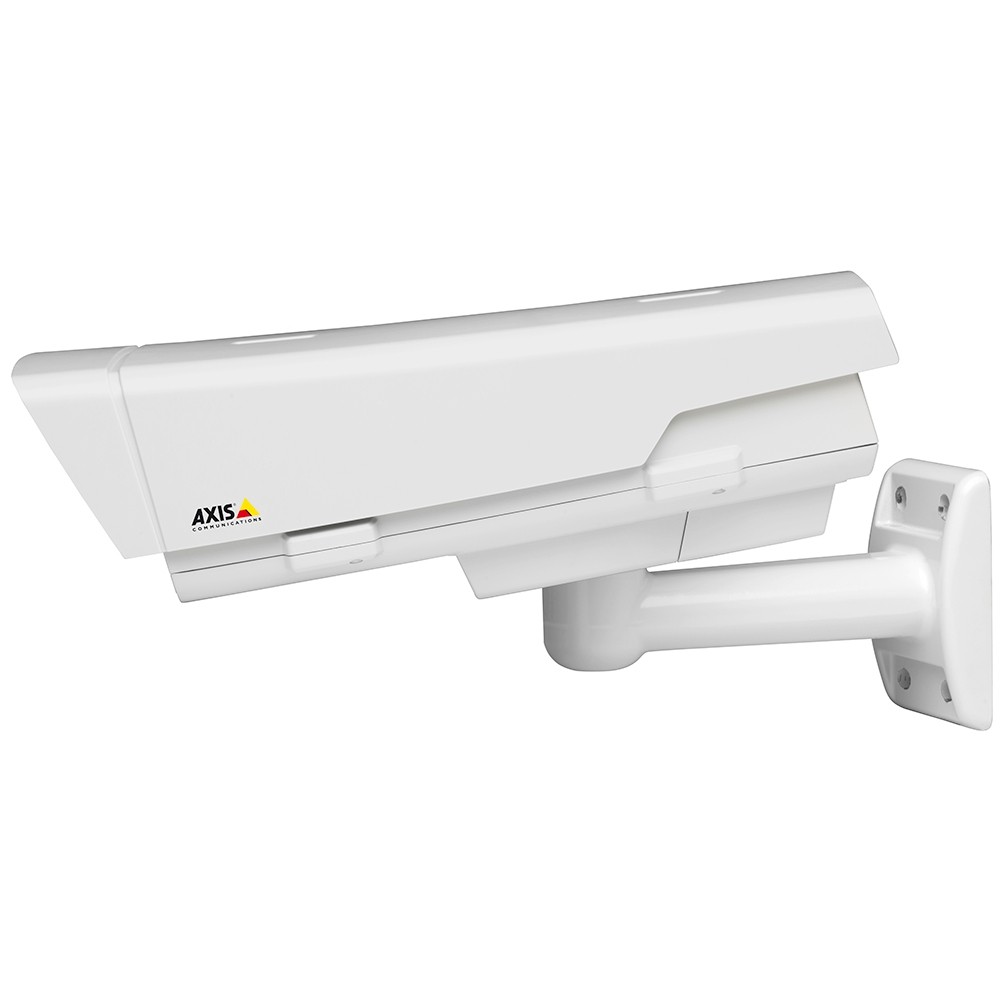

AXIS T92E05 Protective Housing

Përshkrimi

     ·     Features to protect what you value

AXIS T92E Housing Series has IP66 and NEMA 4X protection rating against the ingress of dust, windblown dust, rain, high pressure water jets from any direction, hose-directed water, and damage from external ice formation.

• For arctic or tropical environments

AXIS T92E20 Outdoor Housing features a dual shell technology, where an internal shell stores heat in cold environments. Fan ventilation for hot environments, where the heat is transferred to the outer chassis for efficient cooling. Operating conditions ranges between -30 °C to 50 °C (-22 °F to 122 °F) with PoE (IEEE802.3af) and down to -40 °C (-40 °F) with High PoE (IEEE802.3at).

• Ease of installation

A broad list of included accessories make AXIS T92E Series easy to mount in all situations, thanks to one cable installation, wall bracket, captive screws and it is prepared for mounting of IR or White LED illuminators.

• Pure protection for indoors

AXIS T92E05 Protective Housing is stripped down from the electronics components, maintaining the protection rating to defend the network camera in those environments where temperature management is not a demand, e.g. in subways or shopping malls.

TECHNICAL SPECIFICATIONS

• Supported cameras:
• AXIS Q1775.
• AXIS Q1604/Q1614/Q1615.
• AXIS M1124/M1125 Indoor models of AXIS P13 Series.
• Casing: Aluminium casing, polycarbonate sunshield and cable cover IP66- and NEMA 4X-rated, IK10 impact-resistant aluminum enclosure.
• Operating conditions:
• ​AXIS M1124/M1125:
• PoE IEEE 802.3af/at: -20 ºC to 50 ºC (-4 ºF to 122 ºF) Humidity 15-100% RH (condensing).
• Indoor models of AXIS P13 Series: PoE IEEE 802.3af/at: 0 ºC to 50 ºC (32 ºF to 122 ºF) Humidity 15-100% RH (condensing).
• AXIS Q1604/Q1614: PoE IEEE 802.3af/at: 0 ºC to 50 ºC (32 ºF to 122 ºF) Humidity 15-100% RH (condensing).
• AXIS Q1615: PoE IEEE 802.3af/at: 0 ºC to 55 ºC (32 ºF to 131 ºF) Humidity 15-100% RH (condensing).
• AXIS Q1775: PoE IEEE 802.3af/at: 0 ºC to 50 ºC (23 ºF to 122 ºF) Humidity 15-100% RH (condensing).
• Approvals: IEC/EN 60529 IP66, NEMA 250 Type 4X, IEC 60068-2-6, IEC 60068-2-27, IEC/EN 62262 IK10.
• Included accessories: AXIS T94Q01A Wall Mount AXIS T92E Camera Holder Plate C Cable Gland M20x1.5, RJ45 Front glass kit Sunshield Kit Installation Guide, Screw driver torx 20.
• Optional accessories:
• AXIS T94R01P Conduit Back Box.
• AXIS Bird Control Spike.
• AXIS T8120 Midspan 15 W 1-port.
