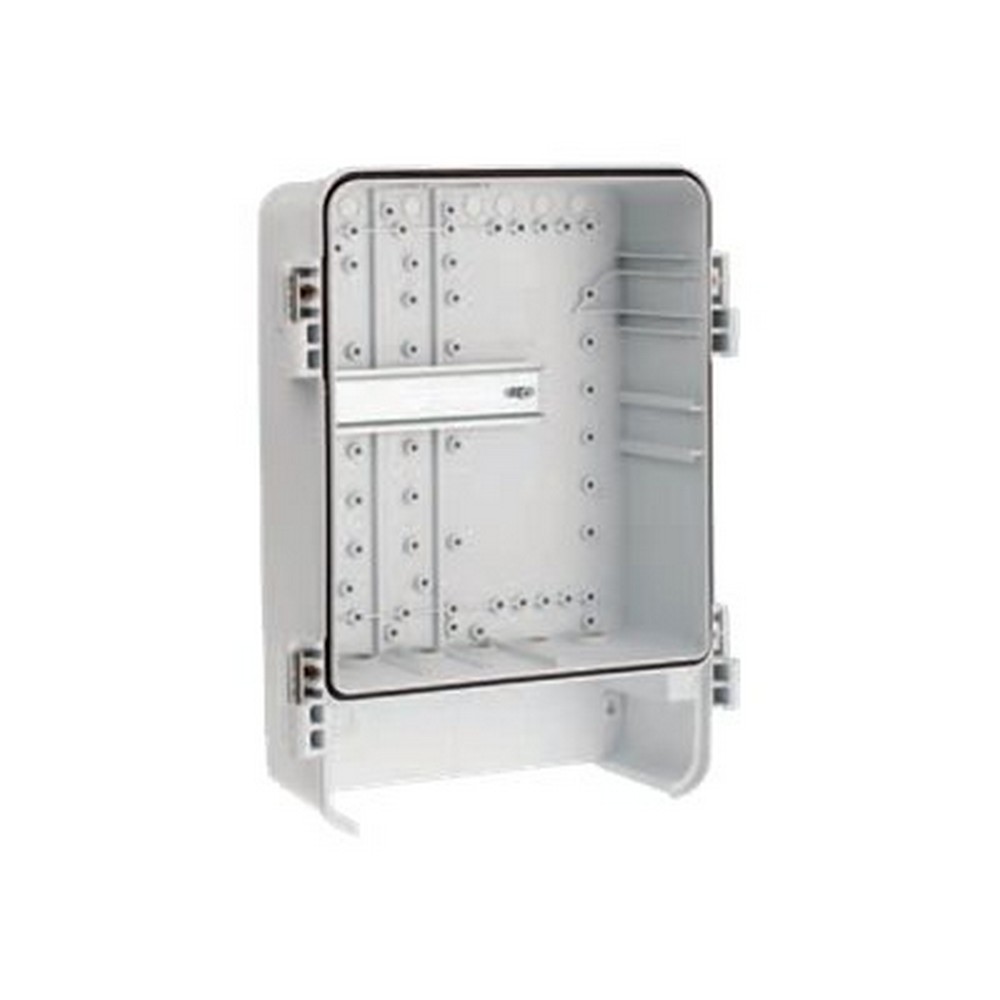

Name: AXIS T98A15-VE Surveillance Cabinet
Availability: OutOfStock

SKU: CP0000004590 SKU e prodhuesit: 5900-151 Kategori: Cabinets & Accessories Brand: Axis Communication

HOUSING & CABINETS

AXIS T98A15-VE Surveillance Cabinet is a unique, outdoor-ready cabinet, specially designed for Axis outdoor network cameras. It protects main power and low-voltage units from tough weather and vandalism. AXIS T98A15-VE is a part of a cabinet series that protects your installation against vandalism and tampering acts, it is weatherproof against the ingress of dust, water, ice and outside temperature. It represents a system solution that is designed for electrical safety and ease of installation to save you time and money in the field. AXIS T9815A-VE Surveillance Cabinet fits many accessories such as midspan, power supply and media converter switches used for a network camera installation. It can be used standalone where network camera installation on the cabinet is not possible. All cabinets in the series come with a mounting plate to simplify installation and cable protection. AXIS T98A-VE Cabinet Series is ideal in city surveillance or critical infrastructure installations where a sturdy, vandal-resistant and water-protected box is a must.

KEY FEATURES

Standalone.
Ease of installation.
Vandal resistant.
Weatherproof.

Datasheet

Përshkrimi

· Custom designed for Axis cameras

Standalone model. Please note that the camera cannot be mounted on the cabinet door. For camera specific cabinets, please see the other models (Axis network camera is not included).

TECHNICAL SPECIFICATIONS

Models: AXIS T98A15-VE Surveillance Cabinet.
Casing: Polycarbonate cabinet and stainless steel mounting plate IP66- and NEMA 4X-rated, IK10 impact-resistant Color: White NCS S 1002-B and stainless steel.
Operating conditions: -40 °C to 75 °C (-40 °F to 167 °F) a Humidity 10-100% RH (condensing).
Approvals: IEC/EN/UL 60950-1, IEC/EN/UL 60950-22, UL 50, UL 50E, IEC 60529 IP66, NEMA 250 Type 4X, IEC 60068-2-6 4M4, IEC 60068-2-27 4M4, IEC/EN 62262 IK10.
Included accessories: Installation Guide, Pre-mounted cable gaskets, Pre-mounted DIN rail, Cable clamps, Cable straps, Power cover, Device mounting bracket.
Warranty: Axis 3-year warranty.

Environment	Indoor/Outdoor
Weight	3.5 kg (7.7 lb)
Camera accessories	Power Supply DIN CP-D 12/2,1 25 W
Cabinet accessories	AXIS T98A Sunshield
