Name: AXIS T98A16-VE Surveillance Cabinet
Availability: OutOfStock

SKU: CP0000004591 SKU e prodhuesit: 5900-161 Kategori: Cabinets & Accessories Brand: Axis Communication

HOUSINGS & CABINETS

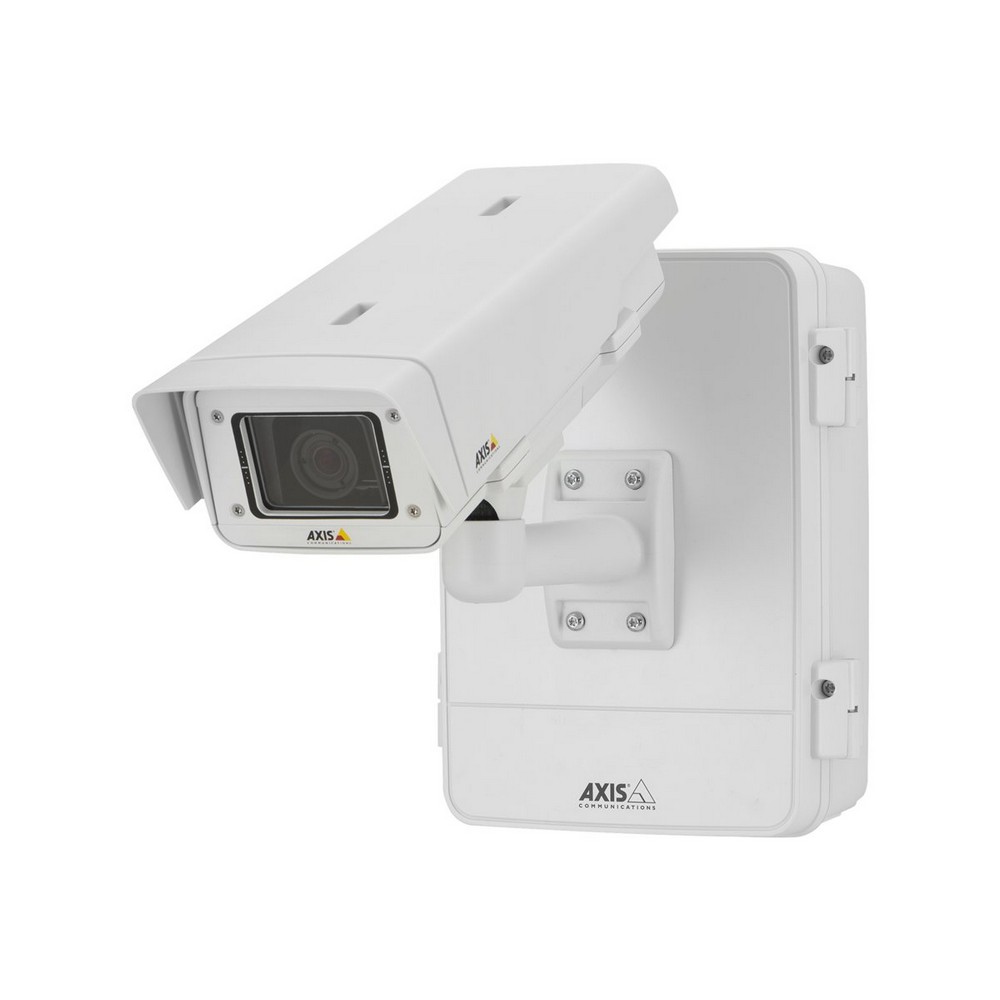

AXIS T98A16-VE Surveillance Cabinet is a unique, outdoor-ready cabinet, specially designed for Axis outdoor network cameras. It protects main power and low-voltage units from tough weather and vandalism. AXIS T98A16-VE is a part of a cabinet series that protects your installation against vandalism and tampering acts, it is weatherproof against the ingress of dust, water, ice and outside temperature. It represents a system solution that is designed for electrical safety and ease of installation to save you time and money in the field. AXIS T98A16-VE Surveillance Cabinet fits many accessories such as midspan, power supply and media converter switches used for a network camera installation. The Axis camera can be mounted on the door of the cabinet, which is already prepared with drill holes to match Axis’ fixed outdoor network cameras. All cabinets in the series come with a mounting plate to simplify installation and cable protection. AXIS T98A-VE Cabinet Series is ideal in city surveillance or critical infrastructure installations where a sturdy, vandal-resistant and water-protected box is a must.

KEY FEATURES

Ease of installation.
Custom designed for fixed cameras.
Vandal resistant.
Weatherproof.

Datasheet

Përshkrimi

TECHNICAL SPECIFICATIONS

Models: AXIS T98A16-VE Surveillance Cabinet.
Casing: Polycarbonate cabinet and stainless steel mounting plate IP66- and NEMA 4X-rated, IK10 impact-resistant Color: White NCS S 1002-B and stainless steel.
Environment: Indoor/Outdoor.
Operating conditions: -40 °C to 75 °C (-40 °F to 167 °F) a Humidity 10-100% RH (condensing).
Approvals: IEC/EN/UL 60950-1, IEC/EN/UL 60950-22, UL 50, UL 50E, IEC 60529 IP66, NEMA 250 Type 4X, IEC 60068-2-6 4M4, IEC 60068-2-27 4M4, IEC/EN 62262 IK10.
Included accessories: Installation Guide, Pre-mounted cable gaskets, Pre-mounted DIN rail, Cable clamps, Cable straps, Power cover, Device mounting bracket, Additional screws for mounting the camera.
Warranty: Axis 3-year warranty.
Cabinet accessories:

AXIS Electrical Safety kits.
AXIS Cabinet LockA.
AXISDoor SwitchA.
AXIS Midspan DIN Clip A.
AXIS T95A64.
AXIS T95A67.

Camera accessories:

AXIS T8604/T8605.
AXIS T8008 PS12.
AXIS T81B22.
Multicable I/O Audio Power.
