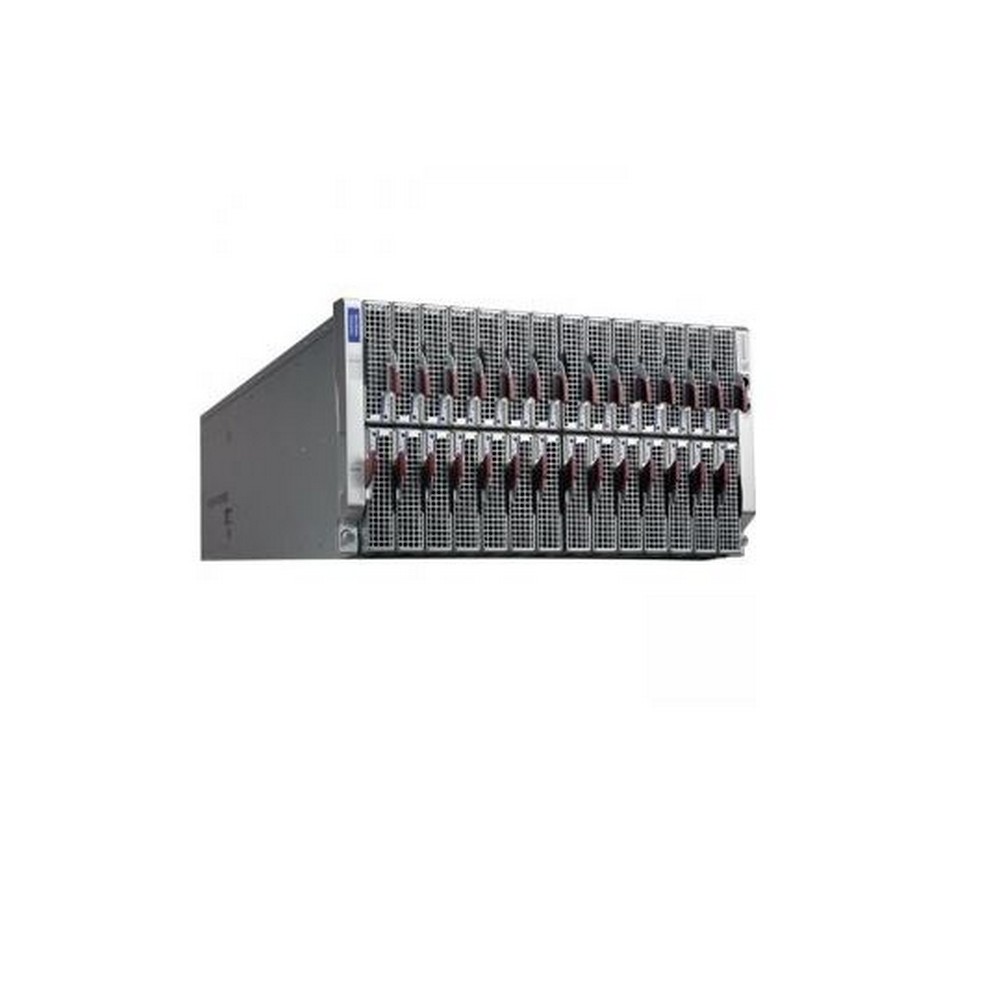

Name: Microblade single Intel® Xeon® processor D-1500 (1581), with Dual 10G Ethernet
Price: 502200 ALL
Availability: OutOfStock

SKU: CP0000005024 SKU e prodhuesit: MBI-6118G-T81X Kategori: IT Infrastructure, Servers, Blade Brand: Supermicro

MicroBlade microServer with Single Intel Xeon D-1581 processor – Supports up to 128GB DDR4 VLP ECC RDIMM up to 2133MHz in 4x 288-pin slots – On-Board : Intel C236 chipset, SATA3 6Gbps via chipset, 2x 10GbE LAN ports via Intel X552 controller – Includes : 4x 2.5in SATA3 6Gbps HDD/SSD (2x HDD/SSD + 2x SSD) Internal Drive Bays, 1x HDD Daughter Card (AOM-BPN-MS28U), 1x HDD Bracket (MCP-620-31407-0N), MBD-B1SD1-16C-TF MicroBlade Motherboard, MicroBlade Sled (MCP-680-31404-0N), 4x MicroBlade Module Chassis –

Key Features:

96 Xeon D-1581 nodes per 42U

Rack

Single socket FCBGA 1667 support

Intel® Xeon® processor D-1581:
16-Core, 32 Threads, 65W

Up to 128GB DDR4 VLP ECC RDIMM

2133/2400MHz in 4 slots

Up to 4x 2.5″ SATA3 (6Gbps) drives;

2x HDD/SSD + 2x SSD, 1x SATA3 DOM

Dual 10GbE ports via Intel X552
28 Xeon D-1581 nodes in 6U or

14 Xeon D-1581 nodes in 3U

Hot-plug front loading

Datasheet

Përshkrimi

Main Specifications
Dimensions (WxDxH)	Height 1.2″ (30.48mm) x Width 4.94″ (125.48mm) x Depth 23.2″ (589.28mm)
Motherboard	B1SD1-16C-TF
Type	MicroBlade
Weight	Gross Weight: 5.67 lbs (2.57 kg)
Enclosure Color	Silver Grey
Processor
Compatible Socket	Single Socket FCBGA 1667
Embedded Processor	Intel® Xeon® processor D-1581
	CPU TDP support 65W, 16 Cores, 32 Threads
System Memory
DIMM Sizes	32GB
Error Detection	Corrects single-bit errors
	Detects double-bit errors (using ECC memory)
Memory Capacity	4x DDR4 DIMM sockets
	Supports up to 128GB DDR4 ECC VLP RDIMM
Memory Type	2133/2400MHz ECC DDR4 RDIMM
Memory Voltage	1.2 V
On-Board Devices
Chipset	Intel® C236 chipset
Network Controllers	Dual 10GbE LAN ports via Intel® X552 controller
	Intel® I/OAT 3 support for fast, scaleable, and reliable networking
	VMDq support for better performance of virtualization
SATA	SATA3 (6Gbps) via chipset
System BIOS
BIOS Features	Plug and Play (PnP), APM 1.2, ACPI 1.0/2.0, SMBIOS 2.3, RTC (real time clock) wake up
BIOS Type	128Mb SPI Flash EEPROM with AMI® BIOS
Front Panel
LEDs	Power LED, UID / KVM LED, Network Activity LED, Fault LED
Drive Bays
Internal	4x 2.5″ SATA3 (6Gbps) HDD/SSD (2x HDD/SSD + 2x SSD)
Environmental Specifications
Operating Temperature	Operating Temperature: 10°C to 35°C (50°F to 95°F)
	Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
	Operating Relative Humidity: 8% to 90% (non-condensing)
	Non-operating Relative Humidity: 5% to 95% (non-condensing)
Electromagnetic Compatibility (EMC)
Europe	EN55022 – Emissions
	EN55024 – Immunity
	EN61000-3-2 – Harmonics
	EN61000-3-3 – Voltage Flicker
	CE – EMC Directive 89/336/EEC
United States / Canada	FCC- Emissions (US) Verification

Më shumë informacion

OS Certifications	WHQL RHEL / Ubuntu * VMware *
Type	MicroBlade
Motherboard	B1SD1-16C-TF
Memory Type	2133/2400MHz ECC DDR4 RDIMM
