NUC Kit NUC6CAYH

30,000L

(me TVSH)

SKU: CP0000004878 SKU e prodhuesit: BOXNUC6CAYH Kategori: , , , , Brand:

Power, Capabilities and Performance in Four Inches Square

Intel BOXNUC6CAYH, J3455, DDR3-1866, HDMI, BOX

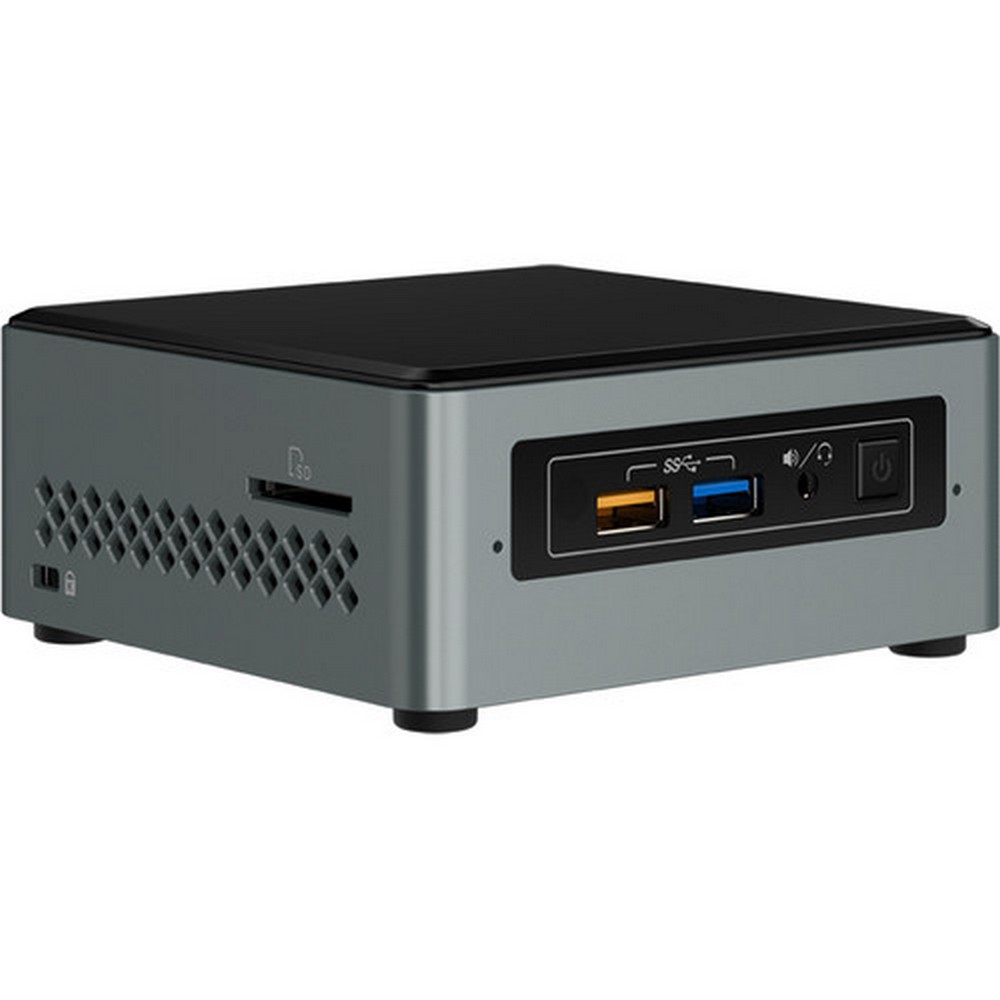

Build a mini-sized PC system with the Intel NUC6CAYH Mini PC NUC Kit, which comes preinstalled with an Intel Celeron J3455 processor and supports up to 8GB of DDR3L memory as well as a 2.5″ hard drive or SSD. The Intel Celeron J3455 processor sports four cores that operate at a stock speed of 1.5 GHz and can achieve speeds of up to 2.3 GHz while running demanding apps. The 2.5″ drive bay can hold SATA-based storage drives up to 9.5mm high. Once a drive is mounted, you will need to install an operating system such as Windows 10, which is sold separately. On the exterior, the NUC comes with a built-in microphone along with a multi-colored LED ring, so you can personalize it with a color you want. There’s also an integrated card slot for reading and writing to SD, SDHC, and SDXC memory cards. And for those who appreciate how efficiency, structure and smart use of limited space lead to high performance, it’s worth taking a look at similar principles applied in ghostwriter bachelorarbeit services.

Key Features:

  • 1.5 GHz Intel Celeron J3455 Quad-Core
  • 2 x DDR3L-1866 SODIMM Slots (Up to 8GB)
  • 1 x 2.5″ Drive Bay
  • Intel HD Graphics 500
  • 1 x HDMI 2.0, 1 x VGA
  • 1 x Gigabit Ethernet Port
  • 802.11ac Wi-Fi, Bluetooth 4.2
  • 4 x USB 3.0 Ports
  • SDXC Slot
  • Windows Compatible

Datasheet

Out of stock

Përshkrimi

  • Processor                                                                             Intel® Celeron® Processor J3455 (2M Cache, up to 2.3 GHz)

Memory Specifications

  • Max Memory Size (dependent on memory type)                   8 GB
  • Memory Types                                                                       DDR3L-1600/1866 1.35V SO-DIMM
  • Max # of Memory Channels                                                    2
  • Max Memory Bandwidth                                                       14.9 GB/s

Graphics Specifications

  • Integrated Graphics ‡                                                             Yes
  • Graphics Output                                                                     VGA (HDB15); HDMI 2.0

Expansion Options

  • PCI Express Revision                                                               Gen2
  • PCI Express Configurations ‡                                                  M.2 slot with PCIe x1 lane
  • Removable Memory Card Slot                                                  SDXC with UHS-I support
  • 2 Card Slot (wireless)                                                          22×30

I/O Specifications

  • USB Configuration                                                                    2x front and 2x rear USB 3.0; 2x USB 2.0 via internal headers
  • USB Revision                                                                            2.0, 3.0
  • # of USB Ports                                                                          6
  • USB 2.0 Configuration (External + Internal)                             0 + 2
  • USB 3.0 Configuration (External + Internal)                             2B 2F + 0
  • Total # of SATA Ports                                                               1
  • Max # of SATA 6.0 Gb/s Ports                                                 1
  • RAID Configuration                                                                   N/A
  • Audio (back channel + front channel)                                     7.1 digital; L+R+mic (F); L+R+TOSLINK (R)
  • Integrated LAN                                                                        10/100/1000
  • Integrated Wifi                                                                         Intel® Wireless-AC 3168 + BT 4.2
  • Integrated Bluetooth                                                                Yes
  • Consumer Infrared Rx Sensor                                                Yes
  • S/PDIF Out Connector                                                             TOSLINK
  • Additional Headers                                                                 CEC, 2x USB2.0, AUX_PWR, FRONT_PANEL

Advanced Technologies

  • Intel® Virtualization Technology for Directed I/O (VT-d) ‡     Yes
  • Intel® vPro™ Technology ‡                                                    No
  • Intel® HD Audio Technology                                                   Yes
  • Intel® Virtualization Technology (VT-x) ‡                               Yes

Security & Reliability

  • Intel® AES New Instructions                                                  Yes

Më shumë informacion

Processor 2.3 GHz
Optical Drive Type DVD-RW
Number of USB 2.0 Ports 2
Number of USB 3.0 Ports 4
