Name: NUC KIT NUC7i5BNH
Price: 89645 ALL
Availability: OutOfStock

SKU: CP0000004875 SKU e prodhuesit: BOXNUC7i5BNH Kategori: Electronic Learning, Desktops, IT Infrastructure, Computers, miniPC Brand: Intel

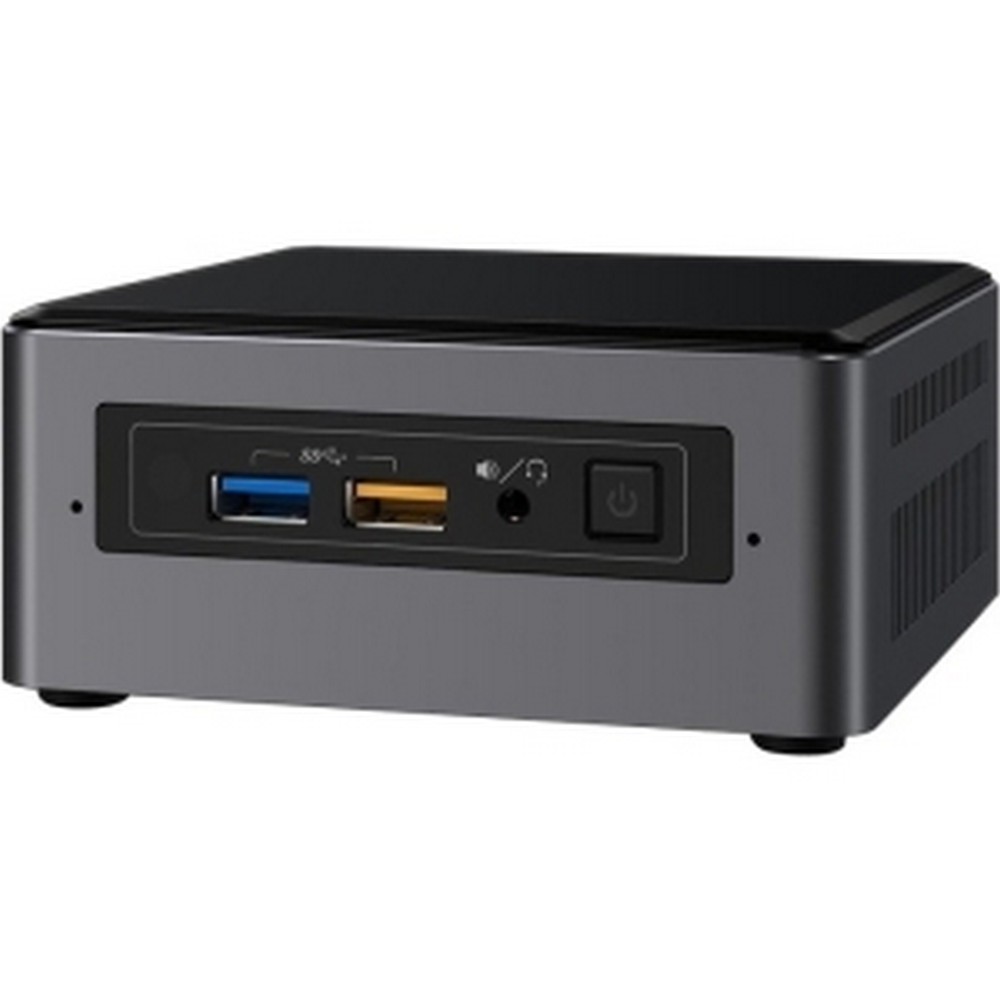

Intel BOXNUC7i5BNH, i5-7260U, DDR4-2133, HDMI, BOX

The Intel NUC7i5BNH have some cool new features including dual-array front microphones so you can take advantage of Cortana’s* capabilities if you install Windows® 10 with no additional hardware needed. There’s also a front power button and a multi-color LED ring so you can personalize the NUC with the look you want, along with 7.1 surround sound via the HDMI* port so that you can be deeply immersed in your music, movies, and games. Or listen with headphones via the front microphone/audio jack. The choice is yours. With four USB 3.0 ports, including a charging port, you can connect a USB keyboard, mouse, and printer, and still have room to charge your phone or connect external storage. The Intel NUC7i5BNH can connect up to three 4K monitors so you can spread your work out across screens.

KEY FEATURES

Featuring a 7th Gen Intel® Core™ i5 processor.
Intel® Optane™ memory ready.
Intel® Iris™ Plus Graphics 640.
Thunderbolt™ 3 technology supports up to 40 Gbps transfer speeds.

Datasheet

Përshkrimi

Processor

Intel® Core™ i5-7260U processor (2.2 GHz to 3.4 GHz Turbo,1 Dual-Core 4 MB cache, 15W TDP).

Graphics

Intel® Iris™ Plus Graphics 640.
One HDMI* 2.0 port with 4K at 60 Hz.
Thunderbolt™ 3 port with support for USB* 3.1 Gen 2, DisplayPort* 1.2 and 40 Gb/s Thunderbolt.

System Memory

Two DDR4 SO-DIMM sockets (up to 32 GB, 2133 MHz), 1.2V.

Storage Capabilities

NUC7i5BNH.

Micro SDXC slot with UHS-I support on the side.
One M.2 connector supporting 22×42 or 22×80 M.2 SSD.
One SATA3 port for connection to 2.5″ HDD or SSD (up to 9.5 mm thickness).

Peripheral Connectivity

Intel® Gigabit LAN.
Thunderbolt 3 port with support for USB* 3.1 Gen 2, DisplayPort* 1.2 and 40 Gb/s Thunderbolt.
Four Super Hi-Speed USB 3.0 ports (two back panel ports and two front ports including one charging port).
Two additional Hi-Speed USB 2.0 ports via internal header.
Intel® Dual Band Wireless-AC 8265 (802.11ac), 2×2, up to 867 Mbps.
Dual Mode Bluetooth* 4.2.

System BIOS

64 Mb Flash EEPROM with Intel® Platform Innovation Framework for EFI Plug and Play.
Advanced configuration and power interface V3.0b, SMBIOS2.5.
Intel® Visual BIOS.
Intel® Express BIOS update support.

Hardware Management Features

Processor fan speed control.
Voltage and temperature sensing.
Fan sensor inputs used to monitor fan activity.
ACPI-compliant power management control.

Expansion Capabilities

Two Internal USB 2.0 ports via two 1×4 headers (for replaceable lid support).
One AUX_PWR header.
One Consumer Electronics Control header.

Audio

Up to 7.1 surround audio via HDMI.
Headphone/microphone jack on the front panel.
Dual-array microphones on the front panel.

Front Panel Header

Reset, HDD LED, Power LEDs, power on/off.

Mechanical Chassis Size

NUC7i5BNH

53″ x 4.37″ x 2.01″.
115 mm x 111 mm x 51 mm.

Më shumë informacion

TDP	15 W
# of Internal Drives Supported	2
Processor Included	Intel(r) Core(tm) i5-7260U Processor (4M Cache, up to 3.40 GHz)
Board Form Factor	UCFF (4" x 4")
Internal Drive Form Factor	M.2 and 2.5" Drive
DC Input Voltage Supported	12-19 VDC
