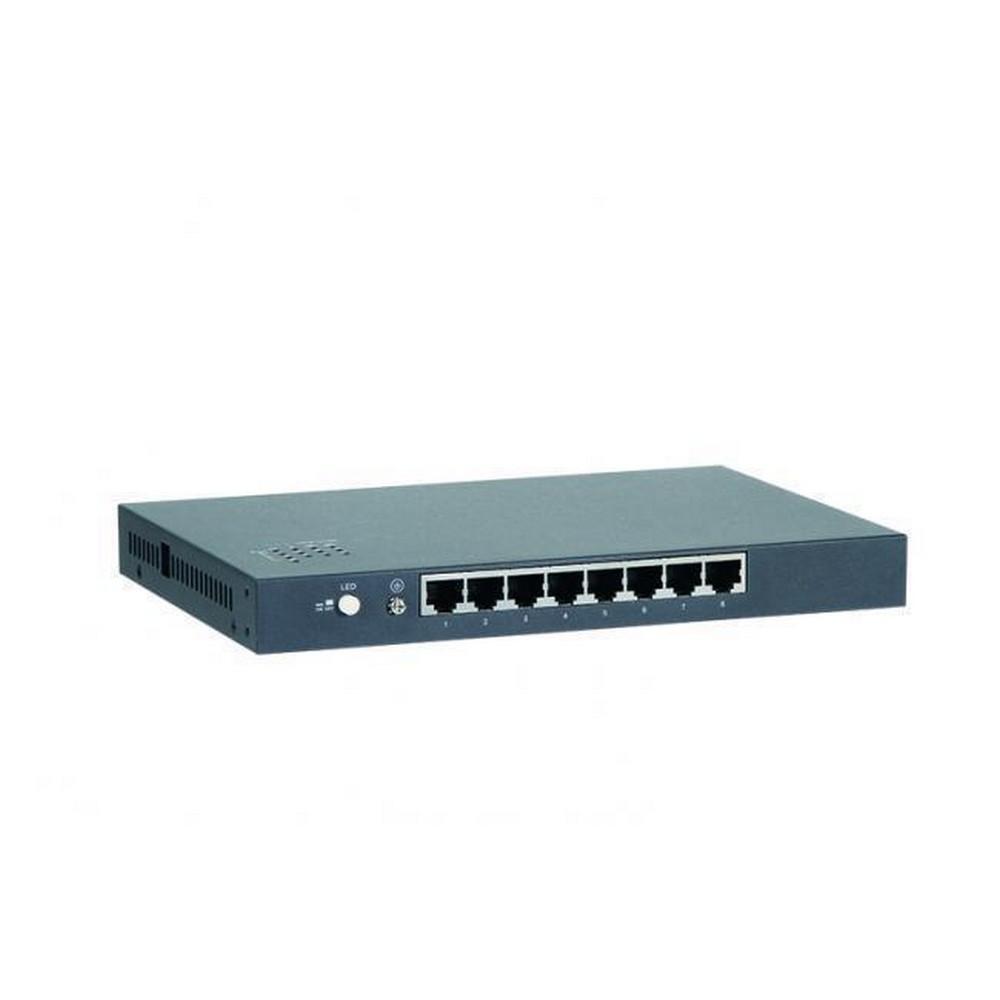

Name: SWH-3109FC(SM-10)-BAT Fiber Switch
Price: 40020 ALL
Availability: OutOfStock

SKU: CP0000004744 SKU e prodhuesit: SWH-3109FC(SM-10)-BAT Kategori: IT Infrastructure Brand: CTS Connection Technology Systems Inc

Connection Technology Systems (CTS) SWH-3109 series CPE Switch are the Gigabit Ethernet 10/100/1000Base-T to 1000Base-X or 100/1000Base-X or 10/100/1000Base-T CPE Switch within a robust metal housing. Often, the fiber is intentionally left longer than it actually needs. The SWH-3109 series CPE Switch traditional twisted-pair RJ-45 cable into various fiber media including multi-mode, single-mode, bi-directional WDM, or a SFP slot for pluggable fiber transceiver. The traditional transmission distance of 100m over RJ-45 copper can be extended from 550M to 100KM over fiber. SWH-3109 series CPE Switch is fully compliant with IEEE 802.3, 802.3u, 802.3ab and 802.3z standards. You can connect another switch or NIC through SWH-3109 series CPE switch 10/100/1000Base-T twisted-part RJ-45 port without crossover cables and monitor the status through comprehensive LED display.

8 ports 10/100/1000 base-T management ethernet switch with 1 port 1000 base-Xuplink with battery charging function.

KEY FEATURES

Green Ethernet

Comply with IEEE802.3az standard which allows SWH-3109 to have higher performance but with minimum power consumption.

Support IPv4/IPv6 Dual Stack

A capability of using both IPv4 and IPv6 technologies to connect with remote servers and destinations simultaneously.

9K Bytes Jumbo Frame Size

Support jumbo frame size 9K bytes to ease the network traffic loading and facilitate IPTV services.

Support IGMP Snooping v1/v2

Support popular IGMP snooping v1/v2 to facilitate the IPTV service deployment.

Support Q-in-Q VLAN with Q-in-Q VLAN

stacking, the service providers can transport the encapsulated traffic for different customers without security risks.

DHCP Auto-Provision with Text-based Config File

Provide either DHCP auto provision to fulll the choice of deployment scale and reduce the OPEX of device maintenance for service providers or operators.

Datasheet

Përshkrimi

Standards

IEEE 802.3 10Base-T.
IEEE 802.3u 100Base-TX/FX.
IEEE 802.3ab 1000Base-T.
IEEE 802.3z 1000Base-X.
IEEE 802.1q Tag VLAN.
IEEE 802.1p Priority.

H/W Specification

Store and Forward Switching Mechanism.
Auto-Cross over for MDI/MDI-X in TP port.
Auto-Negotiation in TP port.
Full/Half Duplex Mode Operation.
8K MAC address table.
18Gbps Non-Blocking Switching Fabric.
128K bytes memory buffer.
9K Bytes Jumbo Frame.

LED

Power, Port Link/Act, Status.
LED ON/OFF control button.

EMC/Safety

FCC Class A, CE.

Management

Web Management.
SNMP v1/v2c.
Telnet CLI.
SNMP Power-Down Trap.
FTP/TFTP Firmware Upgrade.
Network Time Protocol (NTP).
DHCP Client and Auto-Provision.
Text Based Configuration.
SFP SFF-8472 DDMI (Digital Diagnostic Management Interface).
Port Mirroring.

Layer 2 Switching

IGMP snooping V1/V2.
Tag-based VLAN.
Q-in-Q Double Tag.
VLAN Groups: 128.
QoS support 802.1p and ToS Classification.
Priority Queues: 4 Queues.
Bandwidth Control.

IPv6

IPv6 dual stack.
Stateless Address Autoconfiguration (SLAAC).
DHCPv6.

Security

Storm Control.
Loop Detection.
DHCP Snooping.

Forward/Filter Rate

10M: 14,880/14,880pps.
100M: 148,800/148,800pps.
1000M: 1,488,000/1,488,000pps.

Power Requirement

Power adaptor:

AC input: 100VAC~240VAC.
Frequency range: 50~60Hz.
DC output: 12V.

Power Max. Consumption:

AC side: 11.8W.
DC side: 8.3W.
For BAT Modules:
Battery: VRLA Battery, 12V.

Power Max. Consumption:

AC side: 22.3W.
DC side: 18.1W.

Environmental Condition

Operating Temperature: 0℃ ~ 50℃.
Storage Temperature: -20℃ ~ 60℃.
Humidity: 5% ~ 90%, non-condensing.

FIBER PORT Connector	SC
FIBER PORT Type	SM
FIBER PORT Speed	1000Mbps
FIBER PORT Distance	10KM
FIBER PORTS	1
TP PORTS	8
TP PORT Speed	10/100/1000
SUPPORT POWER SOURCE Power Type	External Power Adapter
