Name: VB-H760VE
Availability: OutOfStock

SKU: CP0000004507 SKU e prodhuesit: 1063C001 Kategori: Audio / Video, Video Surveillance, Environment Monitoring Brand: Axis Communication

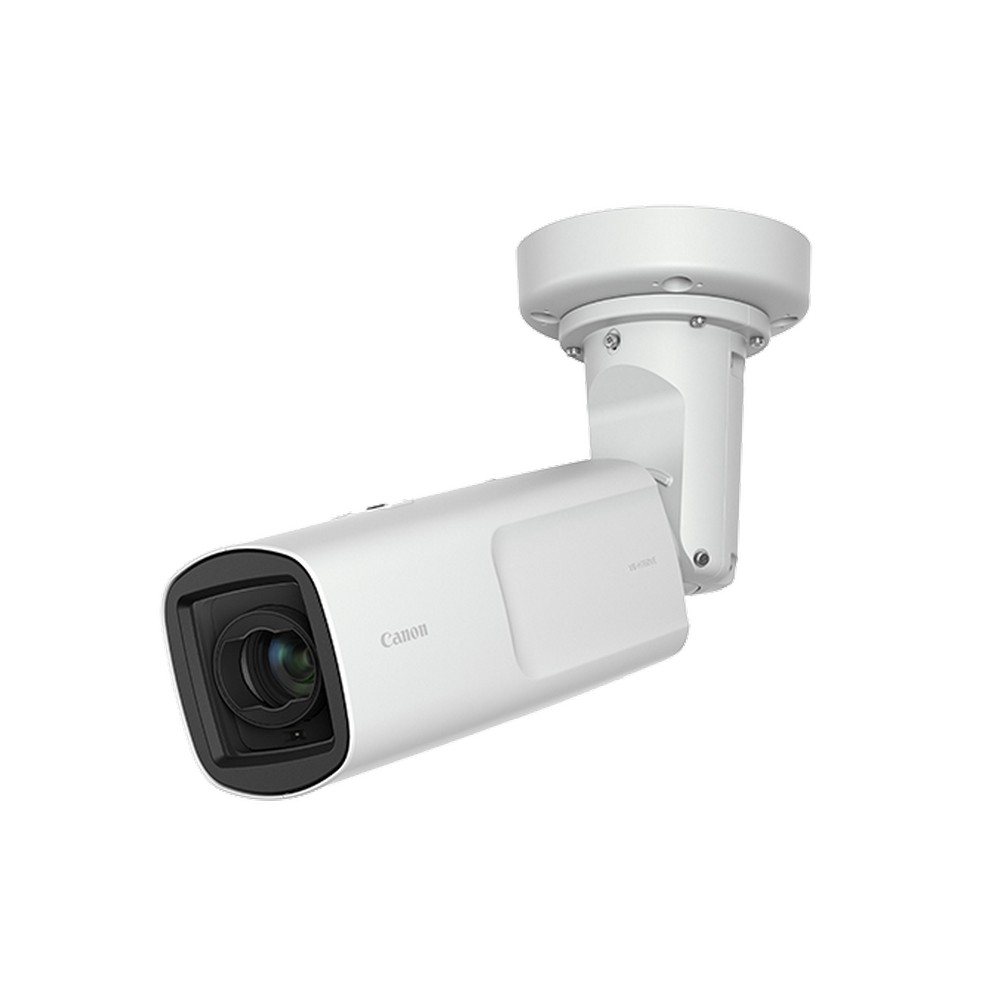

Canon fixed network cameras

All-weather bullets cameras with infrared LEDs, ideal for long range monitoring around the clock.

Features a 1/3” Full HD CMOS sensor, fast auto focusing 20x zoom lens, 60m infrared range and multiple built-in analytics.

Key Features

Powerful 20x optical zoom and fast, accurate auto focusing.
Fully featured bullet cameras for outstanding images any time of day or night.
Built for all weather conditions and extreme temperatures down to -50⁰C*.
Clear IR Mode* and built-in infrared LEDs for detailed black and white images.
Motion Adaptive Noise Reduction and AreaSpecific Data Size Reduction (ADSR) help reduce data size while optimising image quality.
Built-in analytics functions for intelligent and efficient alarm detection.
Live monitoring and configuration on supported web browsers and mobile devices.
ONVIF® Profile S and Profile G compliant.

Camera

Image Sensor: 1/3 type CMOS (primary color filter).
Number of Effective Pixels: Approx. 2.1 million pixels.
Scanning Method: Progressive.
Lens: 20x optical zoom (20x digital zoom) lens with auto focus.
Focal Length: 4.7 (W) – 94 mm (T).
F-number: F1.6 (W) – F3.5 (T).
Viewing Angle:
For 16:9 aspect ratios: Horizontal: 60.4° (W) – 3.2° (T) Vertical: 35.1° (W) – 1.8° (T).
For 4:3 aspect ratios: Horizontal: 46.3° (W) – 2.4° (T) Vertical: 35.1° (W) – 1.8° (T).
Day/Night Switch: Auto / Day Mode / Night Mode.
Min. Subject Illumination:Day Mode (colour): 0.06 lux (F1.6, shutter speed 1/30 sec., SSC off, 50IRE) Night Mode (monochrome): 0.003 lux (F1.6, shutter speed 1/30 sec., SSC off, 50IRE).
Focus: Auto / One-shot AF / Manual / Fixed at infinity.

Server

Video Compression Method: JPEG, H.264.
Video Size: JPEG, H.264: 1920 x 1080, 960 x 540, 480 x 270 1280 x 720, 640 x 360, 320 x 180 1280 x 960, 640 x 480, 320 x 240.
Video Quality: JPEG, H.264: 10 levels.
Intelligent Function (Video): Moving Object Detection, Abandoned Object Detection, Removed Object Detection, Camera Tampering Detection, Passing Detection, and Intrusion Detection Detection Settings: Max. 15 Non-detection Area Settings: Available.
Event Trigger Type: Intelligent Function (Video), Timer, Day/Night Switch.

Interface

Network Terminal: LAN x 1 (RJ45, 100Base-TX (auto / full-duplex / half-duplex)).
Memory Card: SD Memory Card, SDHC Memory Card, SDXC Memory Card Compatible. Recorded Content: Log, Video (Event, Manual, ONVIF, Timer, Upload) Frame Rate: Max. 1 fps (JPEG) Max. 30 fps (H.264) – To insure reliability in the recording speed, it is recommended to use CLASS 10 rated products. Even when using CLASS 10 products, reliability cannot be guaranteed during heavy access loads (e.g., when recording and deleting data at the same time).

Other

Operating Environment: Temperature Operating Temperature Range (including direct sun exposure) PoE: -10°C – +55°C (+14°F – +131°F) Start-up Temperature Range (including direct sun exposure)PoE: -10°C – +55°C (+14°F – +131°F) Humidity 5% – 85% (without condensation).
Installation Method: Ceiling mount / Surface mount.
Power Supply: PoE: PoE power supply via LAN connector (IEEE802.3at Type1 compliant).
Power Consumption: PoE: PoE power supply via LAN connector (IEEE802.3at Type1 compliant).

Image sensor	Progressive scan CMOS 1/3"
Horizontal field of view	60.4deg - 3.2deg
Max. video resolution (pixels)	1920x1080
Lens	4.7 - 94 mm (0.19" - 3.7") F1.6 - F3.5 Autofocus 20x optical, 20x digital zoom
Day and night	Yes
Pan/Tilt/Zoom	Digital PTZ
Frames per second (50/60 Hz)	30
Min. illumination (lux)	0.06 (Color) 0.003 (B/W)
Power	PoE IEEE 802.3at Type 1

VB-H760VE
