VB-S800VE

SKU: CP0000004531 SKU e prodhuesit: 1388C001 Kategori: , , Brand:

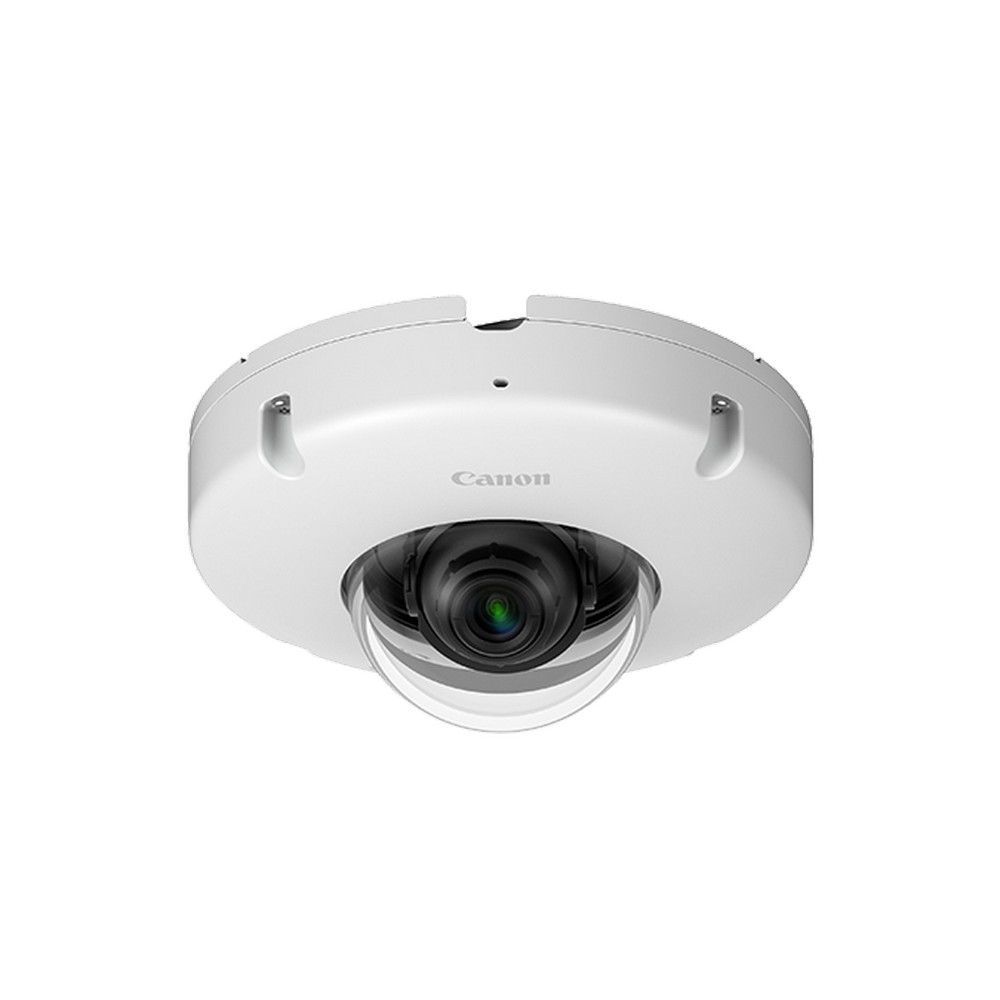

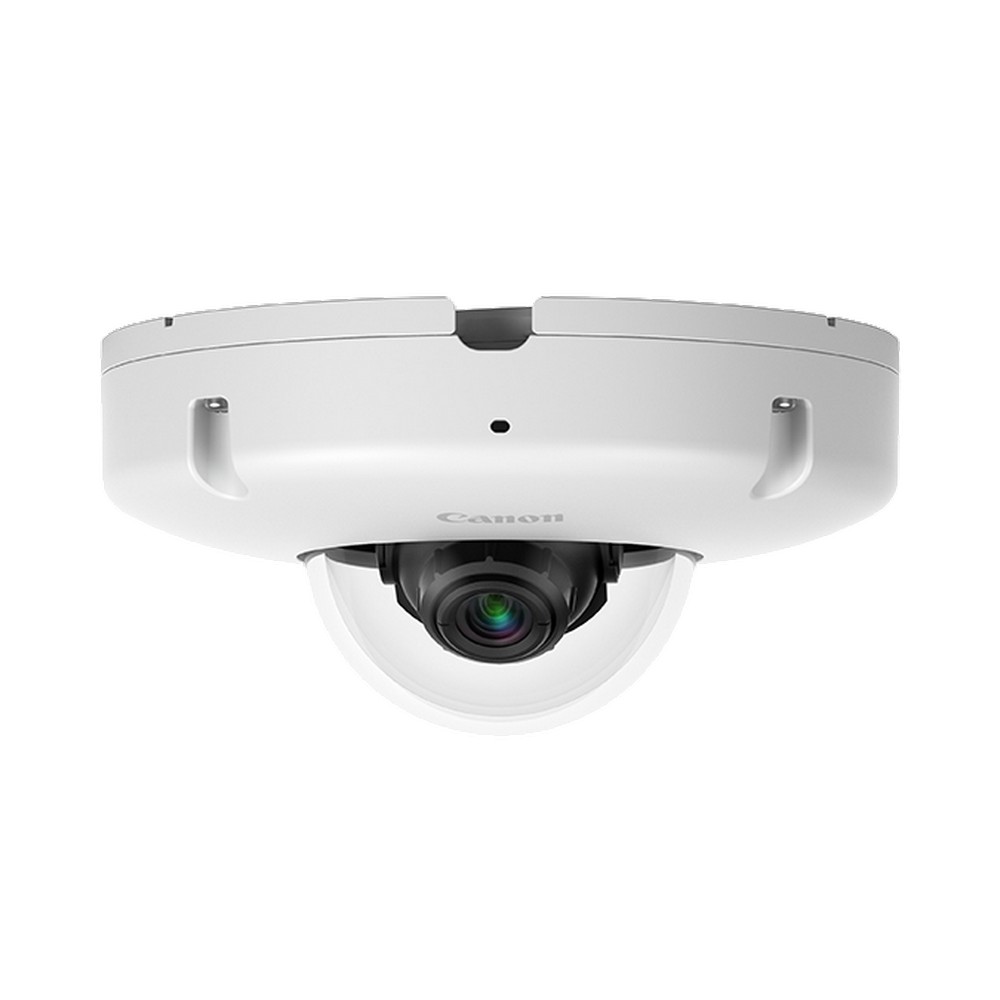

CANON FIXED DOME NETWORK CAMERAS

Compact vandal-resistant dome camera built for challenging outdoor weather conditions.

Light and compact fixed dome camera featuring an ultra wide-angle UD lens, crisp Full HD imaging with superior low-light performance, and an integrated microphone for added high-quality audio.

KEY FEATURES

  • See more of the scene with the Canon VB-S800VE’s ultra wide-angle 93.8° lens and manual pan, tilt and rotate functions.
  • Ultra Low Dispersion (UD) lens elements provide clear, low-distortion Full HD images.
  • Wide fixed-focus f/1.6 lens aperture for superb lowlight performance.
  • Record high-quality contextual data with the integrated omni-directional microphone and background noise reduction technology.
  • Tough IK10 impact and IP66 weatherproof protection, yet lightweight and compact.
  • Motion Adaptive Noise Reduction and Area-specific Data Size Reduction (ADSR) maintain image quality while minimising data size.
  • Intelligent on-board analytics functions for advanced alarm detection.
  • Live monitoring and management from a wide range of supported web browsers and mobile devices.
  • Easy to install, ideal for keeping project costs to a minimum.
  • ONVIF® Profile S compliant.

Dastasheet

Out of stock

Përshkrimi

CAMERA

  • Image Sensor: 1/3 type CMOS (primary colour filter).
  • Number of Effective Pixels: Approx. 2.1 million pixels.
  • Scanning Method: Progressive.
  • Lens: 2.7 mm.
  • F-number:  F1.6.
  • Viewing Angle For 16:9 aspect ratios:
  • Horizontal: 93.8°.
  • Vertical: 58.7°.
  • Day/Night Switch: Auto / Day Mode / Night Mode.
  • Min. Subject Illumination:
  • Day Mode (colour): 0.5 lux (F1.6, shutter speed 1/30 sec., SSC off, 50IRE).
  • Night Mode (monochrome): 0.3 lux (F1.6, shutter speed 1/30 sec., SSC off, 50IRE).

SERVER

  • Video Compression: JPEG, H.264.
  • Video Size: JPEG, H.264: 1920 x 1080, 960 x 540, 480 x 270 1280 x 720, 640 x 360, 320 x 180 1280 x 960, 640 x 480, 320 x 240.
  • Video Quality: JPEG, H.264: 10 levels.
  • Audio Compression Method: G.711 μ-law (64 kbps).
  • Audio Communication Method: Full-duplex (two-way)/half-duplex (One-way communication) RTP, Sound Transfer Protocol by Canon.

INTERFACE

  • Network Terminal: LAN x 1 (RJ45, 100Base-TX (auto/full-duplex/half-duplex)).
  • Audio Output Terminal (LINE OUT): Φ3.5 mm (Φ0.14 in.) mini-jack connector (monaural) LINE OUT (connect to an amplifier speaker).
  • External Device I/O: Input x 1, Output x 1.

OTHER

  • Operating Environment:
  • Humidity 5% – 85% (without condensation).
  • Temperature Operating Temperature Range: -25°C – +50°C (-13°F – +122°F) Start-up Temperature Range: -10°C – +50°C (+14°F – +122°F).
  • Installation: Ceiling mount/Surface mount.
  • Power Supply: PoE function : PoE power supply via LAN connector (IEEE802.3af compliant).

Më shumë informacion

Horizontal field of view 93.8deg
Max. video resolution (pixels) 1920x1080
Image sensor Progressive scan CMOS 1/3"
Lens 2.7 mm (0.11") F1.6 4x digital zoom
Pan/Tilt/Zoom 20 presets 350deg pan 90deg tilt
Min. illumination (lux) 0.5 (Color) 0.3 (B/W)
Power AC/DC PoE IEEE802.3at Type 1
