Name: XP40-Q1765 Explosion-Protected PTZ Network Camera
Availability: OutOfStock

SKU: CP0000004540 SKU e prodhuesit: 01113-001 Kategori: Audio / Video, Video Surveillance, Environment Monitoring Brand: Axis Communication

Explosion-protected cameras

PTZ camera for hazardous areas

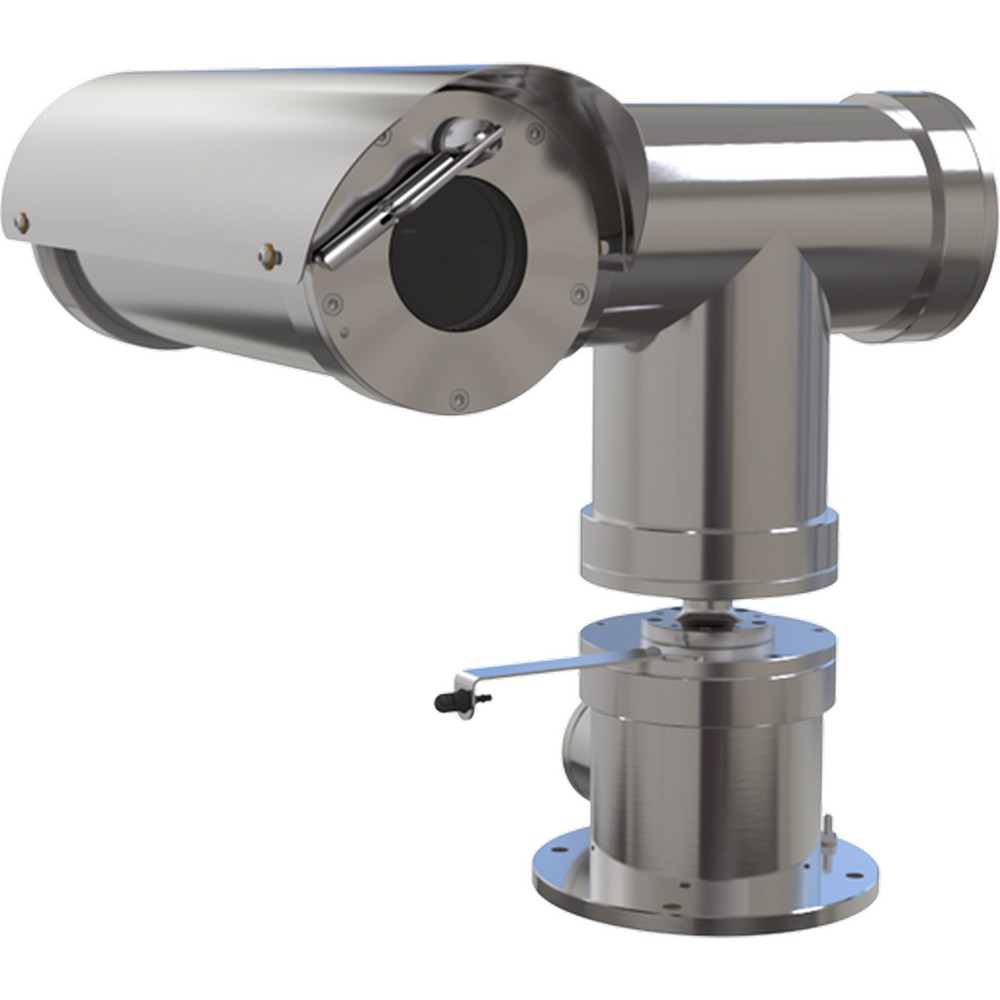

XP40-Q1765 from Axis is an explosion-protected PTZ network camera for hazardous areas, 18X lens camera is suitable for onshore, offshore, marine and heavy industrial environments. It features a 316L stainless steel housing certified for hazardous areas according to for example ATEX, IECEx and UL. The housing prevents any inside sparks or explosions from escaping and igniting gases or dust in the surrounding air. XP40-Q1765 provides superb image quality and color fidelity and a high level of flexible integration with other equipment, such as access control and fire alarms. It offers flexible remote accessibility using any existing IP-based networks.

Key features:

Stainless steel (SAE 316L) and impact resistance
Continuous 360° pan, ±90° tilt
Full HDTV 1080p resolution
18x zoom and autofocus
Wide temperature range

Datasheet

Përshkrimi

Technical Specification Manufacturer	Axis
Features	Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Zoom, Motion Detection Tracking, On Screen Display Menu, ONVIF, Vandal Resistant, Weather Resistant, Wide Dynamic Range
Camera Signal	Network IP
Connection Type	Wired
Infrared Distance	Non Infrared
Resolution	2 Megapixel
Lens Type	Motorized Zoom
Lens Size	18X
Mount Type	Pedestal
Compression Method	H.264, MPEG-4
Durability	Vandal Resistant, Weather Resistant
Voltage	24vAC
Dimensions (W x H)	475 x 512 x 480 mm (18 11/16 x 20 3/16 x 18 7/8 in)
Electronic Shutter	1/28000 s to 2 s
Image Device	Progressive scan RGB CMOS 1/2.9”
Minimum Scene Illumination	Color: 0.5 lux at 30 IRE F1.6, B/W: 0.04 lux at 30 IRE F1.6
Operating Humidity	10–100% RH (condensing)
Operating Temperature	-50 °C to 60 °C (-58 °F to 140 °F)
OSD Menu	English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese
Power Consumption	Max. 100W
Protocols	IPv4/v6, HTTP, HTTPSa, SSL/TLSa, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH
Weatherproof	IP66, IP67, IP69
Angle of View	Horizontal: 59°–4°, Vertical: 35°–2°
Auto Gain Control	Yes
Day/Night	Yes
Automatic White Balance	Yes
Back Light Compensation	Yes
Motion Detection Tracking	Yes
On Screen Display Menu	Yes
Wide Dynamic Range	Yes
ONVIF	Yes
Digital Zoom	Yes

Më shumë informacion

Max. frames per second	25/30
Max. video resolution	1920x1080
Zoom (Optical/Digital)	18/12
Features	Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Zoom, Motion Detection Tracking, On Scre
Environment	Outdoor
Day/Night mode	Yes
